Introduction
Selecting the right motor for industrial pumps, fans, and compressors is critical for achieving high energy efficiency, stable operation, and long-term cost reduction.
Among modern industrial motor technologies, Synchronous Reluctance Motors (SynRM) and Permanent Magnet Synchronous Motors (PMSM) are increasingly replacing traditional induction motors due to their higher efficiency and compatibility with variable frequency drive (VFD) systems.
This guide explains how to choose the best motor type based on application characteristics, load behavior, efficiency requirements, and lifecycle cost considerations.
Table of Contents
Industrial motors account for a significant portion of total electricity consumption in manufacturing systems, often exceeding 60–70% of total energy use.
Energy efficiency class (IE3 / IE4 / IE5)
Load type (constant torque vs variable torque)
Operating hours per year
System compatibility with VFD drives

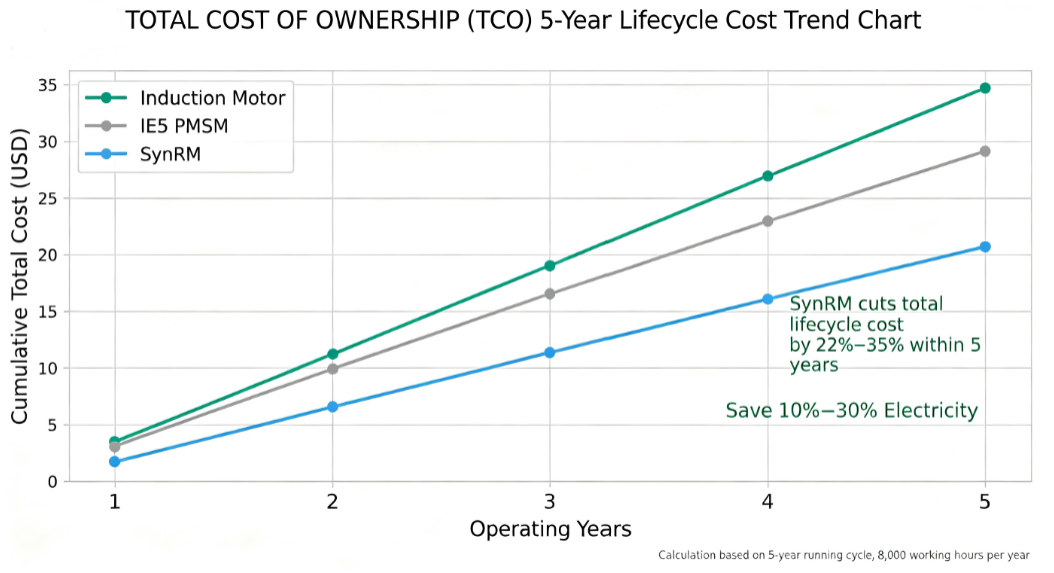

Total cost of ownership (TCO)
Motor selection directly impacts long-term operating cost.
Magnet-free design
Torque generated by magnetic reluctance
Very high efficiency under variable load
Pumps
Fans
HVAC systems
Energy-saving retrofit projects
Uses rare-earth magnets (NdFeB)
High torque density
Excellent dynamic performance
Compressors requiring high precision
Automation systems
CNC and servo applications
Slip-based torque generation
Higher rotor losses
Lower efficiency compared to SynRM/PMSM
Variable flow demand
Quadratic torque curve
Long continuous operation hours
Highest efficiency under partial load
Excellent energy saving performance
Low lifecycle cost

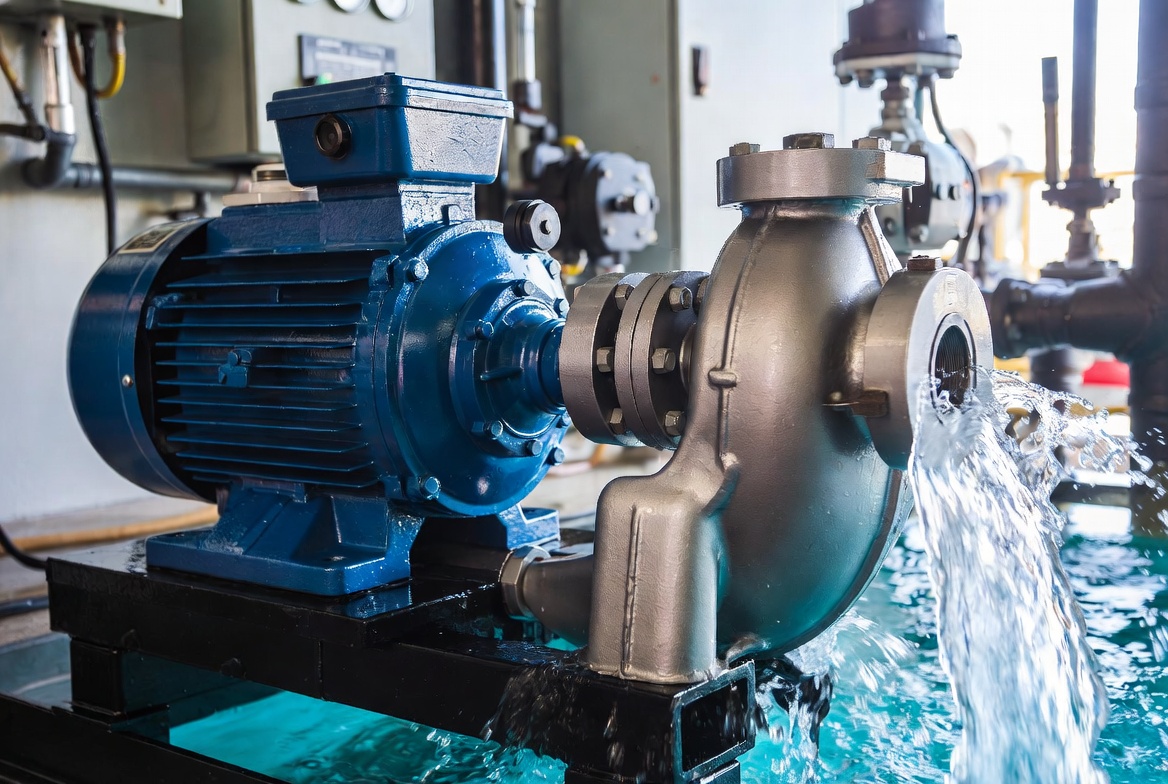

SynRM is generally the best choice for pump systems
Internal Link: Explore our Industrial Pump Motor Solutions
Long operating hours
Variable air volume systems
Low to medium torque demand
Extremely high efficiency at partial load
Significant energy cost reduction
Better for compact high-performance systems

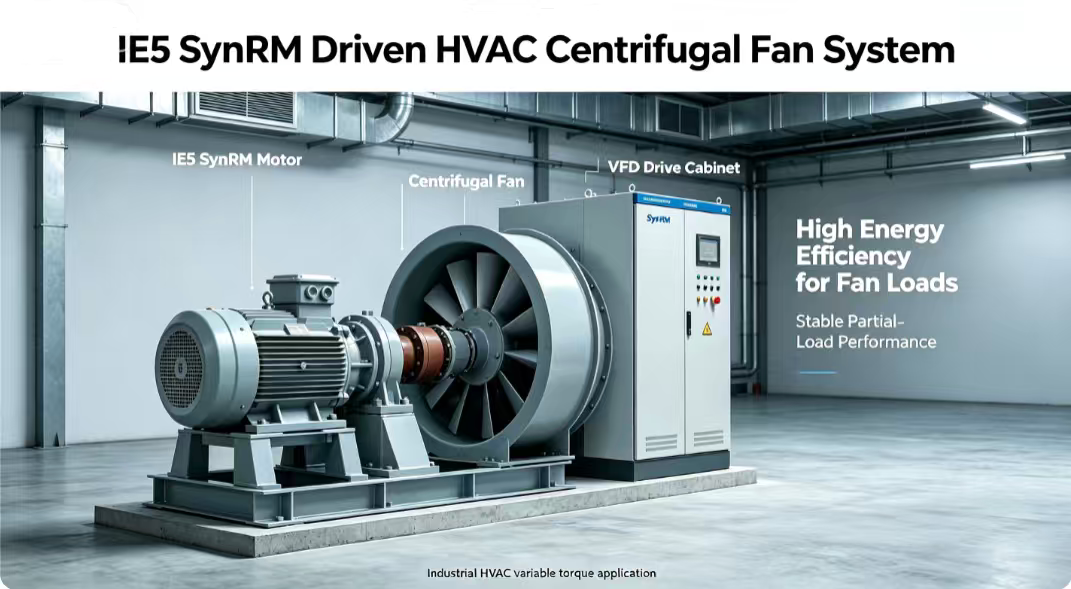

For most HVAC systems: SynRM is preferred
Stable torque output
High reliability
Often high starting load
High torque density
Better dynamic response
Suitable for high-performance systems
Lower torque density compared to PMSM

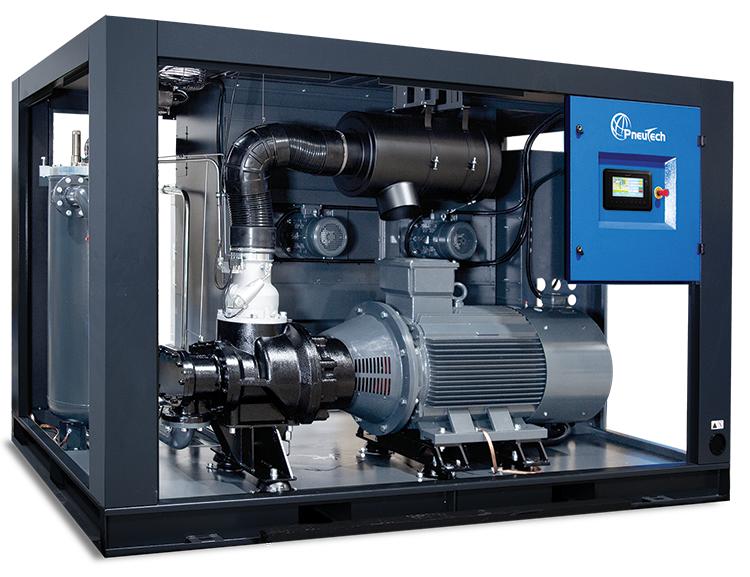

PMSM is often preferred for compressors

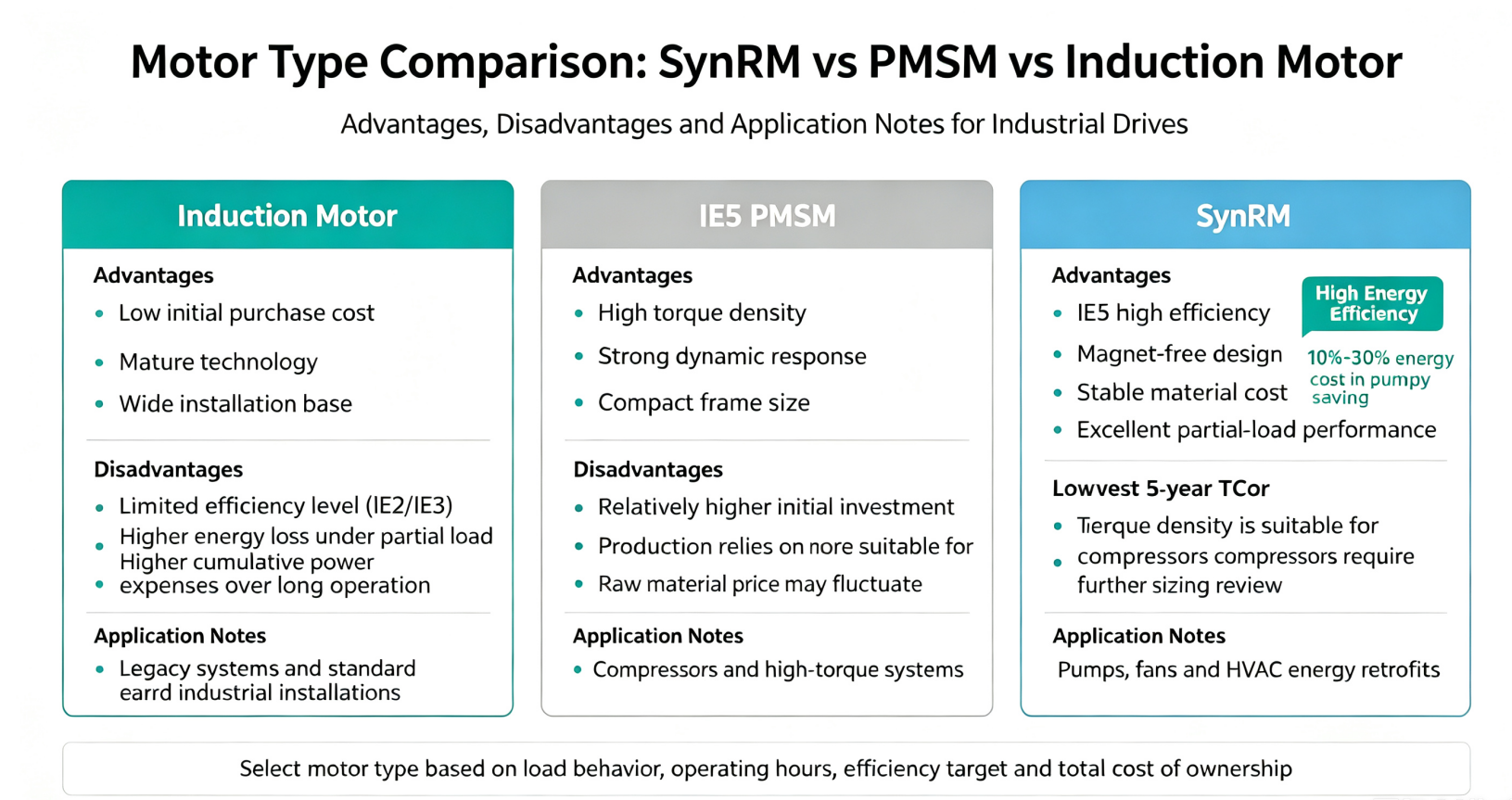

Feature | SynRM | PMSM | Induction Motor |
|---|---|---|---|
Efficiency | High | Very High | Medium |
Torque Density | Medium | High | Low |
Cost Stability | High | Medium | High |
Rare Earth Use | No | Yes | No |
Best Application | Pumps/Fans | Compressors | Legacy systems |
Variable torque → SynRM preferred
Constant high torque → PMSM preferred
Long runtime → SynRM provides better ROI
IE5 target → SynRM or PMSM both suitable
Space limitation → PMSM
Cost optimization → SynRM
Lower initial cost
Lowest energy cost in pump/fan systems
Best ROI in retrofit projects
Higher initial cost
Higher performance efficiency
Better for high-value systems
IE5 efficiency demand
Industrial energy cost pressure
ESG sustainability requirements
Reduction of rotor losses
No need for rare-earth materials
SynRM is becoming the standard for energy-saving upgrades.
Pumps
Fans
HVAC systems
Energy-saving retrofits
Compressors
High torque systems
Precision automation
Final decision depends on application + efficiency target + lifecycle cost
SynRM motors are usually the best choice for pump systems due to their high efficiency under variable load conditions.
SynRM motors are widely used in HVAC systems because they provide high efficiency during long operating hours.
PMSM motors are generally better for compressors due to their higher torque density and dynamic response.
It depends on the application. SynRM is better for cost-efficient energy saving, while PMSM is better for high-performance systems.
Yes. SynRM motors require variable frequency drives for optimal performance and efficiency control.
Because they offer high efficiency, no rare-earth dependency, and excellent performance in pump and fan systems.
