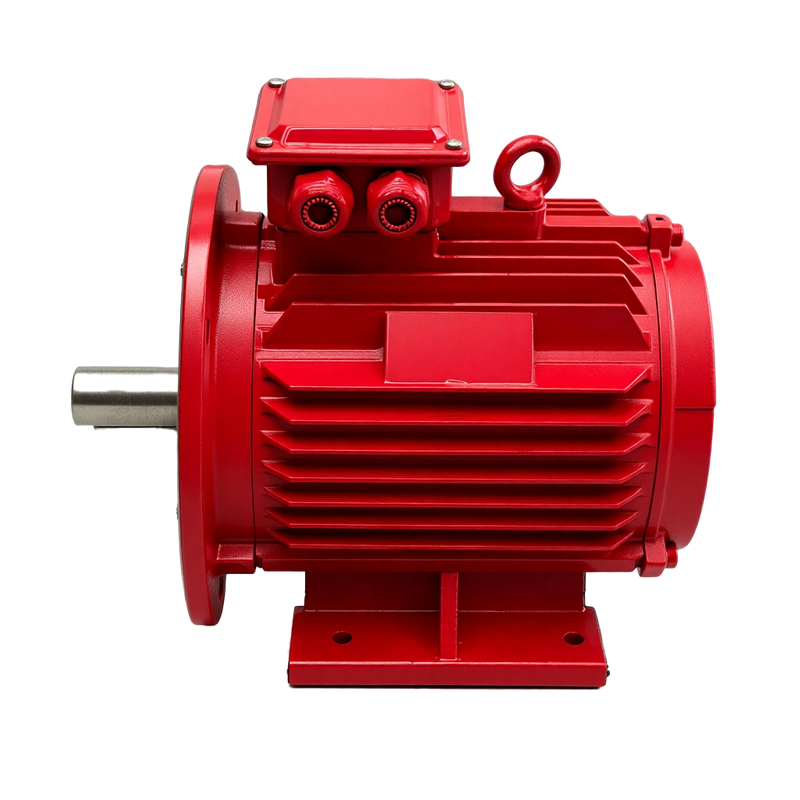

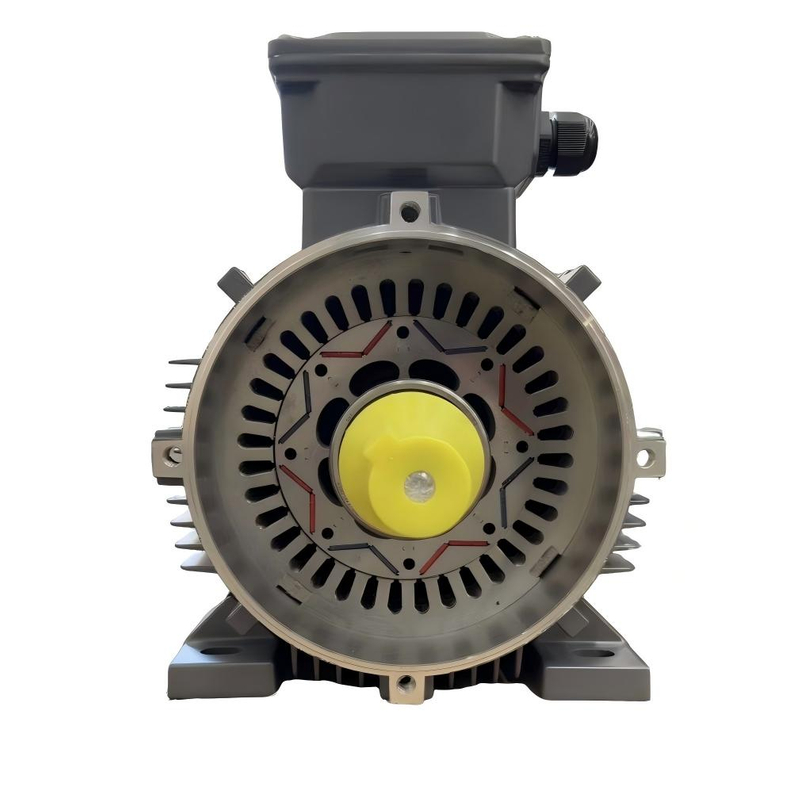

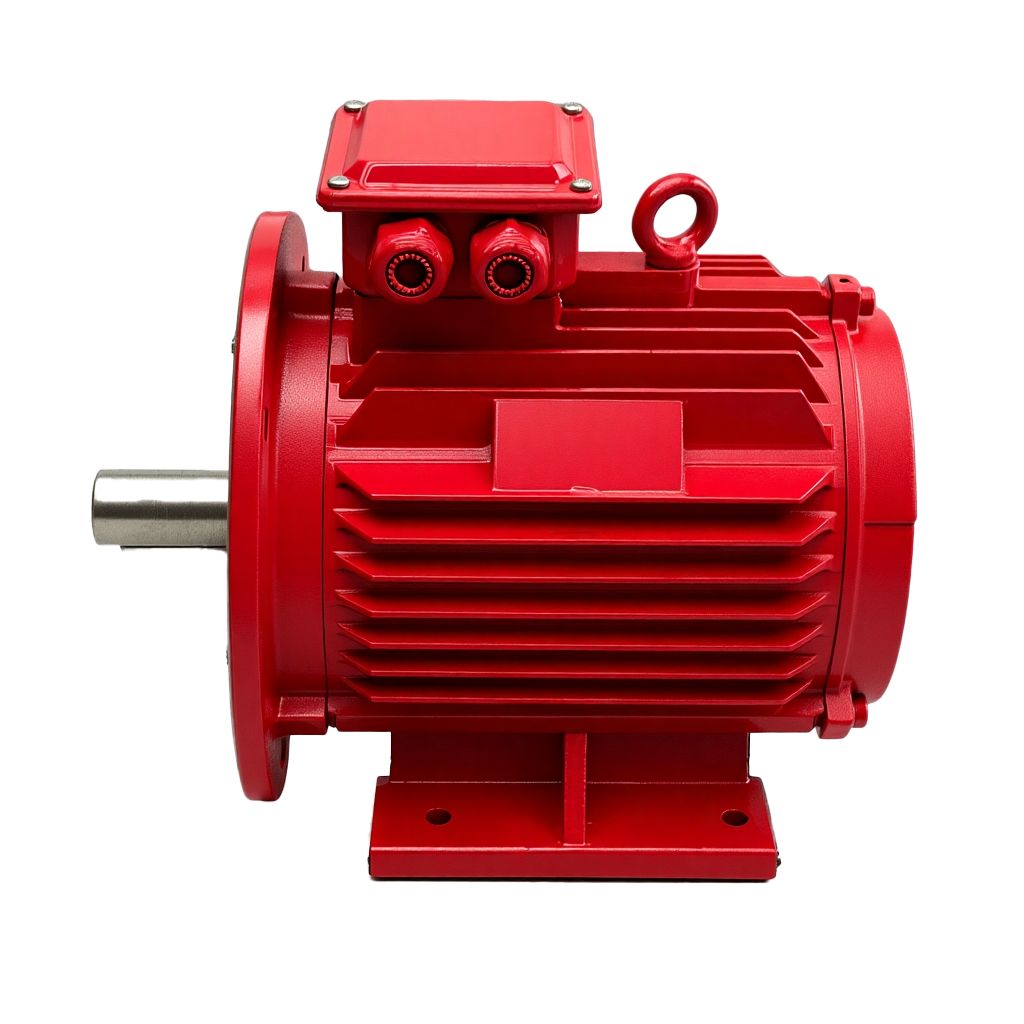

Permagnet Synchronous Motor

  • HMTYP5

  • HUIMA

Efficiency:
IE5
Power:
0.55-90kW
Poles:
2/4/6
Frame:
80-280
Availability:
Inquiry

HUIMA TECHNOLOGY proudly presents the HMTYP5 Series Variable Frequency Drive Three-Phase Permanent Magnet Synchronous Motor, a cutting-edge power solution meticulously engineered for modern industrial gearbox applications. This innovative motor integrates advanced permanent magnet technology with variable frequency control to deliver stable, high-efficiency power for diverse industrial equipment. Compared to conventional induction motors, the HMTYP5 Series offers remarkable advantages in energy efficiency, compact design, and cost-effectiveness, while maintaining an IP55 protection rating and compliance with the highest global energy efficiency standards. It represents the ideal choice for industrial upgrades and energy-saving retrofits.

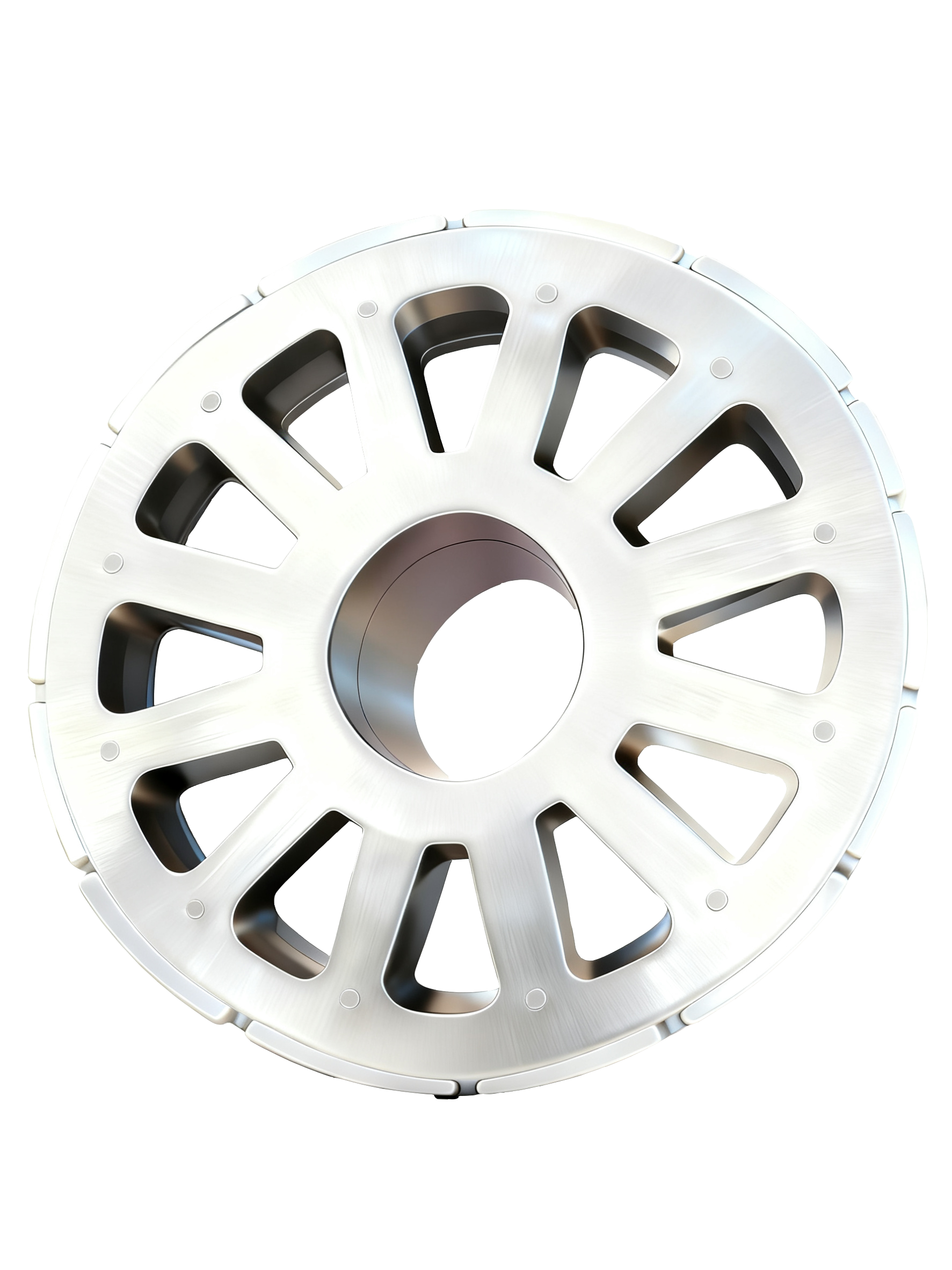

Core Technical Advantages

1. Exceptional Energy Efficiency, Reduced Operational Costs

  • Significant Energy Savings: Reduces energy consumption by 15-30% compared to equivalent induction motors, substantially lowering operational costs

  • Eco-Certified Performance: Complies with international premium efficiency standards, supporting enterprises in achieving sustainable production goals

2. Optimized Engineering, Hassle-Free Installation

  • Modular Architecture: Interchangeable mounting flanges within the same frame size, flexibly adapting to diverse equipment layout requirements

  • Space-Saving Design: One frame size smaller than equivalent induction motors, conserving valuable installation space

  • Seamless Replacement: Identical mounting dimensions to standard induction motors, enabling direct upgrades without mechanical modifications


Map

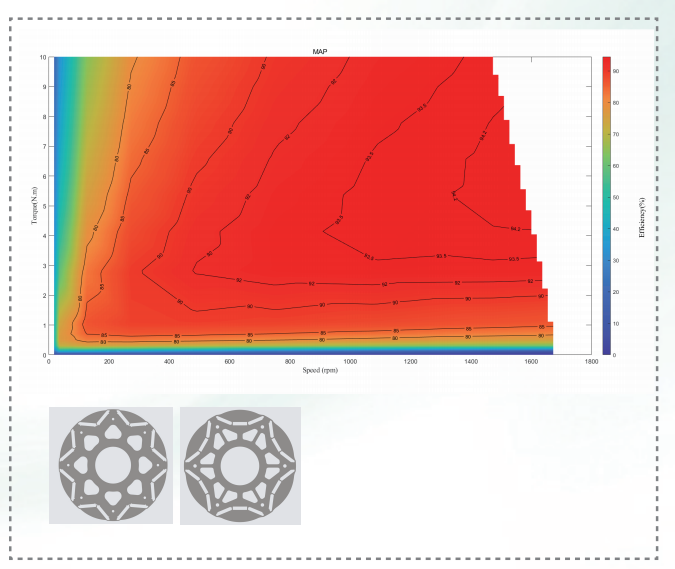

As shown in the figure, taking the IE5-1.5kW-1500rpm-416 motor as an example, its rated operating point efficiency reaches 90.8%, significantly exceeding the national Grade 1 energy efficiency standards and achieving the exploration criteria of IE6 energy efficiency. Moreover, the maximum efficiency surpasses 91%. In the efficiency Map diagram, within the speed range of 200 to 2000 rpm, the proportion of high-efficiency areas is notably large, demonstrating excellent full-condition energy efficiency characteristics.


Variable Frequency Drive Three-Phase Permanent Magnet Synchronous Motor, Reduced Frame Size

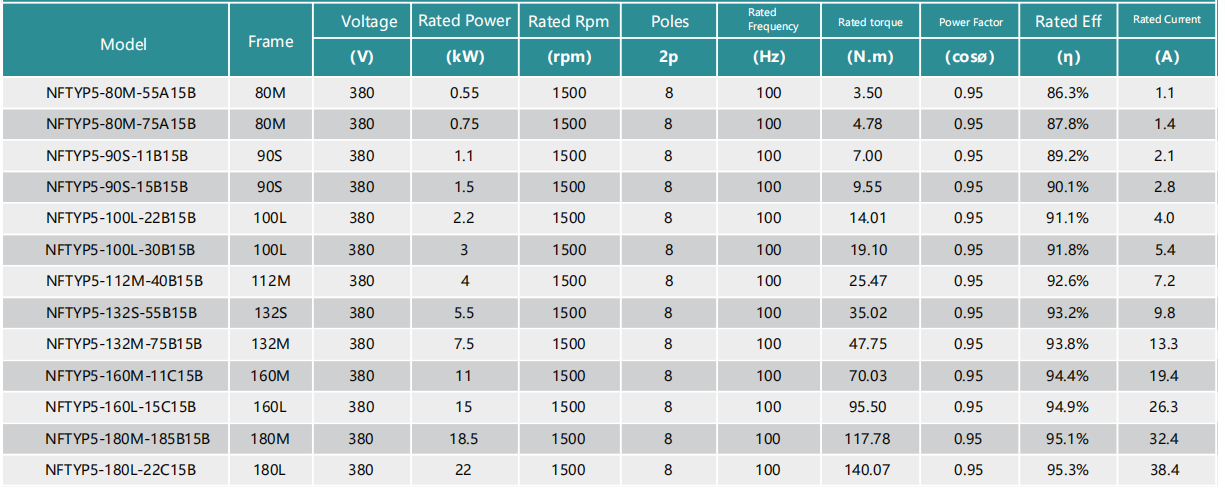

Model Frame Voltage Rated Power Rated RPM Poles Rated Frequency Rated Torque Power Factor Rated Efficiency Rated Current Noise Vibration
(V) （kW） (rpm) 2p （Hz） （N.m） （cosø） （η） （A） (dB(A)) (mm/s)
HMTYP5-80M-55A15B 80M 380 0.55 1500 8 100 3.50 0.97 86.3% 1.07 54 1.6
HMTYP5-80M-75A15B 80M 380 0.75 1500 8 100 4.78 0.97 87.8% 1.43 54 1.6
HMTYP5-80M-11B15B 80M 380 1.1 1500 8 100 7.00 0.97 89.2% 2.07 56 1.6
HMTYP5-80M-15B15B 80M 380 1.5 1500 8 100 9.55 0.97 90.1% 2.79 56 1.6
HMTYP5-90S-22B15B 90S 380 2.2 1500 8 100 14.01 0.97 91.1% 4.05 59 1.6
HMTYP5-90S-30B15B 90S 380 3 1500 8 100 19.10 0.97 91.8% 5.48 59 1.6
HMTYP5-100L-40B15B 100L 380 4 1500 8 100 25.47 0.97 92.6% 7.24 64 1.6
HMTYP5-112M-55B15B 112M 380 5.5 1500 8 100 35.02 0.97 93.2% 9.89 65 1.6
HMTYP5-112M-75B15B 112M 380 7.5 1500 8 100 47.75 0.97 93.8% 13.41 65 1.6
HMTYP5-132S-11C15B 132S 380 11 1500 8 100 70.03 0.97 94.4% 19.54 71 2.2
HMTYP5-132M-15C15B 132M 380 15 1500 8 100 95.50 0.97 94.9% 26.50 71 2.2
HMTYP5-160M-185B15B 160M 380 18.5 1500 8 100 117.78 0.97 95.1% 32.62 73 2.2
HMTYP5-160M-22C15B 160M 380 22 1500 8 100 140.07 0.97 95.3% 38.71 73 2.2
HMTYP5-180M-30C15B 180M 380 30 1500 8 100 191.00 0.97 95.8% 52.50 76 2.2
HMTYP5-180M-37C15B 180M 380 37 1500 8 100 235.57 0.97 96.0% 64.62 76 2.2
HMTYP5-200L-45C15B 200L 380 45 1500 8 100 286.50 0.97 96.2% 78.43 76 2.2
HMTYP5-200L-55C15B 200L 380 55 1500 8 100 350.17 0.97 96.4% 95.66 76 2.2
HMTYP5-225S-75C15B 225S 380 75 1500 8 100 477.50 0.97 96.6% 130.17 78 2.2
HMTYP5-250M-90C15B 250M 380 90 1500 8 100 573.00 0.97 96.8% 155.89 79 2.5
HMTYP5-250M-110C15B 250M 380 110 1500 8 100 700.33 0.97 96.6% 190.92 79 2.5
HMTYP5-280S-132C15B 280S 380 132 1500 8 100 840.40 0.97 96.7% 228.87 80 2.8
HMTYP5-280S-160C15B 280S 380 160 1500 8 100 1018.67 0.97 96.9% 276.84 80 2.8
HMTYP5-315S-185C15B 315S 380 185 1500 8 100 1177.83 0.97 97.1% 319.44 88 2.8
HMTYP5-315S-200C15B 315S 380 200 1500 8 100 1273.33 0.97 97.1% 345.34 88 2.8
HMTYP5-315S-220C15B 315S 380 220 1500 8 100 1400.67 0.97 97.1% 379.88 88 2.8
HMTYP5-315S-250C15B 315S 380 250 1500 8 100 1591.67 0.97 97.1% 431.68 88 2.8
HMTYP5-315M-280C15B 315M 380 280 1500 8 100 1782.67 0.97 97.1% 483.48 88 2.8
HMTYP5-315L-315C15B 315L 380 315 1500 8 100 2005.50 0.97 97.1% 543.91 88 2.8
HMTYP5-80M-55A10B 80M 380 0.55 1000 8 66.67 5.25 0.97 84.5% 1.09 54 1.6
HMTYP5-80M-75A10B 80M 380 0.75 1000 8 66.67 7.16 0.97 86.0% 1.46 54 1.6
HMTYP5-90S-11B10B 90S 380 1.1 1000 8 66.67 10.51 0.97 87.5% 2.11 57 1.6
HMTYP5-90S-15B10B 90L 380 1.5 1000 8 66.67 14.33 0.97 88.6% 2.84 57 1.6
HMTYP5-100L-22B10B 100L 380 2.2 1000 8 66.67 21.01 0.97 89.9% 4.1 61 1.6
HMTYP5-100L-30B10B 100L 380 3 1000 8 66.67 28.65 0.97 90.8% 5.54 61 1.6
HMTYP5-112M-40B10B 112M 380 4 1000 8 66.67 38.20 0.97 91.6% 7.32 65 1.6
HMTYP5-132S-55B10B 132S 380 5.5 1000 8 66.67 52.53 0.97 92.4% 9.98 69 1.6
HMTYP5-132M-75B10B 132M 380 7.5 1000 8 66.67 71.63 0.97 93.0% 13.52 69 1.6
HMTYP5-160M-11C10B 160M 380 11 1000 8 66.67 105.05 0.97 93.8% 19.66 73 2.2
HMTYP5-160L-15C10B 160L 380 15 1000 8 66.67 143.25 0.97 94.4% 26.64 73 2.2
HMTYP5-180M-185B10B 180M 380 18.5 1000 8 66.67 176.68 0.97 94.7% 32.75 73 2.2
HMTYP5-180M-22C10B 180M 380 22 1000 8 66.67 210.10 0.97 95.0% 38.83 73 2.2
HMTYP5-200L-30C10B 200L 380 30 1000 8 66.67 286.50 0.97 95.4% 52.72 73 2.2
HMTYP5-200L-37C10B 200L 380 37 1000 8 66.67 353.35 0.97 95.7% 64.82 73 2.2
HMTYP5-225S-45C10B 225S 380 45 1000 8 66.67 429.75 0.97 95.9% 78.67 74 2.2
HMTYP5-250M-55C10B 250M 380 55 1000 8 66.67 525.25 0.97 96.1% 95.96 76 2.5
HMTYP5-250M-75C10B 250M 380 75 1000 8 66.67 716.25 0.97 96.4% 130.44 76 2.5
HMTYP5-280S-90C10B 280S 380 90 1000 8 66.67 859.50 0.97 96.6% 156.21 78 2.8
HMTYP5-280S-110C10B 280S 380 110 1000 8 66.67 1050.50 0.97 96.4% 191.32 78 2.8
HMTYP5-280M-132C10B 280M 380 132 1000 8 66.67 1260.60 0.97 96.6% 229.11 78 2.8
HMTYP5-315S-160C10B 315S 380 160 1000 8 66.67 1528.00 0.97 96.7% 277.42 85 2.8
HMTYP5-315S-185C10B 315S 380 185 1000 8 66.67 1766.75 0.97 96.8% 320.43 85 2.8
HMTYP5-315S-200C10B 315S 380 200 1000 8 66.67 1910.00 0.97 96.8% 346.41 85 2.8
HMTYP5-315M-220C10B 315M 380 220 1000 8 66.67 2101.00 0.97 96.8% 381.05 85 2.8
HMTYP5-315L-250C10B 315L 380 250 1000 8 66.67 2387.50 0.97 96.8% 433.02 85 2.8
HMTYP5-355M-280C10B 355M 380 280 1000 8 66.67 2674.00 0.97 96.8% 484.98 102 2.8
HMTYP5-80M-15B30B 80M 380 1.5 3000 6 150 4.78 0.97 88.6% 2.84 62 1.6
HMTYP5-80M-22B30B 80M 380 2.2 3000 6 150 7.00 0.97 89.9% 4.1 62 1.6
HMTYP5-80M-30B30B 80M 380 3 3000 6 150 9.55 0.97 90.8% 5.54 62 1.6
HMTYP5-90S-40B30B 90S 380 4 3000 6 150 12.73 0.97 91.5% 7.33 67 1.6
HMTYP5-90L-55B30B 90L 380 5.5 3000 6 150 17.51 0.97 92.4% 9.98 67 1.6
HMTYP5-100L-75B30B 100L 380 7.5 3000 6 150 23.88 0.97 93.1% 13.51 74 1.6
HMTYP5-100L-11C30B 100L 380 11 3000 6 150 35.02 0.97 93.8% 19.66 74 1.6
HMTYP5-112M-15C30B 112M 380 15 3000 6 150 47.75 0.97 94.3% 26.67 77 1.6
HMTYP5-112M-185B30B 112M 380 18.5 3000 6 150 58.89 0.97 94.7% 32.75 77 1.6
HMTYP5-132S-22C30B 132S 380 22 3000 6 150 70.03 0.97 94.9% 38.87 79 1.6
HMTYP5-132M-30C30B 132M 380 30 3000 6 150 95.50 0.97 95.3% 52.78 79 1.6
HMTYP5-160M-37C30B 160M 380 37 3000 6 150 117.78 0.97 95.7% 64.82 81 2.2
HMTYP5-160L-45C30B 160L 380 45 3000 6 150 143.25 0.97 95.9% 78.67 81 2.2
HMTYP5-180M-55C30B 180M 380 55 3000 6 150 175.08 0.97 96.1% 95.96 83 2.2
HMTYP5-180L-75C30B 180L 380 75 3000 6 150 238.75 0.97 96.4% 130.44 83 2.2
HMTYP5-200L-90C30B 200L 380 90 3000 6 150 286.50 0.97 96.5% 156.37 84 2.2
HMTYP5-200L-110C30B 200L 380 110 3000 6 150 350.17 0.97 96.4% 191.32 84 2.2
HMTYP5-225M-132C30B 225M 380 132 3000 6 150 420.20 0.97 96.5% 229.34 86 2.2
HMTYP5-250M-160C30B 250M 380 160 3000 6 150 509.33 0.97 96.6% 277.7 89 2.5
HMTYP5-250M-185C30B 250M 380 185 3000 6 150 588.92 0.97 96.9% 320.1 89 2.5
HMTYP5-250M-200C30B 250M 380 200 3000 6 150 636.67 0.97 96.9% 346.06 89 2.5
HMTYP5-280S-220C30B 280S 380 220 3000 6 150 700.33 0.97 96.9% 380.66 91 2.8
HMTYP5-280S-250C30B 280S 380 250 3000 6 150 795.83 0.97 96.9% 432.57 91 2.8
HMTYP5-315S-280C30B 315M 380 280 3000 6 150 891.33 0.97 96.9% 484.48 92 2.8
HMTYP5-315S-315C30B 315M 380 315 3000 6 150 1002.75 0.97 96.9% 545.04 92 2.8


For motors of the same power (18.5kW) and speed (1500r/min), our IE5 permanent magnet motor is one frame size smaller than an IE3 induction motor. This compact design not only boosts energy efficiency but also significantly cuts down the motor’s weight and physical footprint.
Our advanced engineering ensures the motor shaft and bearings can handle higher power and torque within a smaller frame, enabling more efficient material usage.
This reduction in weight and volume directly translates to cost advantages for our customers, including lower material costs, easier transportation, and simpler installation.


Remarks：

1）For the power range of 0.55 kW to 22 kW (IC411): When using a gearbox with a variable frequency drive for long-term operation, the running frequency should not be lower than 25Hz, adopting a self-cooling method. This replaces the traditional solution of 'standard asynchronous motor + variable frequency drive'.

2）For the power range of 0.55 kW to 22 kW (IC416):

Capable of meeting all operating conditions, this solution employs a forced cooling fan design that directly replaces the traditional "variable frequency motor + inverter" configuration.


Cooling Methods
IC411
IC416
Explanation
Totally Enclosed Self-Ventilated Cooling
Forced Ventilation Cooling
Cooling Principle
The fan is coaxial with the motor rotor, and its speed changes with the motor's rotational speed. Cooling efficiency decreases as the motor slows down.
An independent power supply drives a dedicated cooling fan, ensuring stable cooling performance regardless of the motor's rotational speed.
Wiring Method
Single set of motor leads (no separate wiring for the fan).
Two sets of motor leads: one for the main motor and another for the cooling fan.
Application Scenarios
Ideal for variable torque loads where power demand decreases with motor speed (e.g., centrifugal pumps, fans).
Suited for constant torque applications requiring high power output at low speeds (e.g., conveyors, crushers).

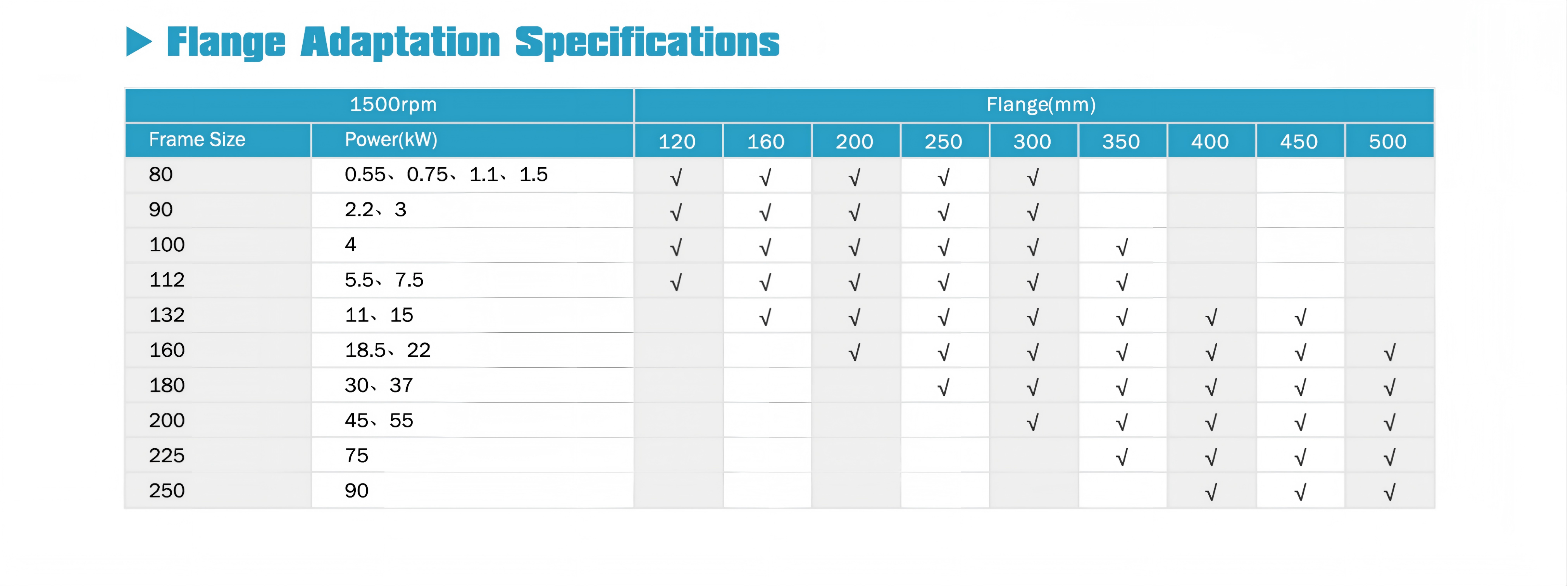

Flange Size
