HMSRPM5 Series
HUIMA
HMSPRM-315M-3000
Power: 132kW
Energy efficiency level: Level 1 energy efficiency (IE5)
Voltage level: AC380V-AC660V Vibration level: R
Insulation level: F Protection level: IP55
Cooling method: IC411 self-fan cooling Installation method: B3, B35, B5 or other
Speed sensor: Sensor-less, incremental encoder or other
Output shaft method: optical axis, single key-way or other
Speed: 1000rpm, 1500rpm, 3000rpm Frame size: 315M
Use environment: Altitude: below 1000 meters
Temperature: -15℃ - 40℃
Humidity: below 80%RH
Mounting type: | |
---|---|
Power: | |
Speed: | |
Availability: | |
HMSRPM5 series IE5 synchronous reluctance motor is specially developed for industrial application conditions. It is a fully enclosed, self-fan cooling and high-efficiency three-phase synchronous reluctance motor designed and manufactured using new electromagnetic design technology, new processes, and new materials. Using the same casing as standard small and medium-sized asynchronous motors, it can seamlessly replace traditional low-energy-efficiency asynchronous motors.

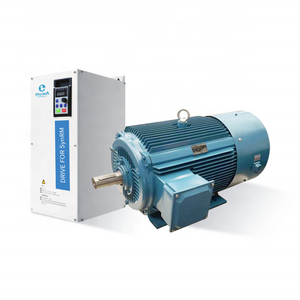

HMD21 series drivers use high-performance vector control algorithms to achieve full-speed open-loop vector control.
The HMD21 series adopts a high-performance drive hardware architecture. The book-type structure is simple and compact. The power range is from 0.55kW to 400kW. It adopts open-loop control without an encoder and has automatic harmonic suppression, instant start and stop, and zero speed. Functions such as torque and zero drift suppression can well meet the dynamic load requirements of customers for different industrial equipment.
The IE5 ultra-efficient synchronous reluctance motor system has been promoted to a certain extent in water pumps, fans, air compressors and other systems in the building materials industry. After the energy-saving renovation project, it has been used well, the equipment has been running smoothly, and the energy-saving effect has been obvious, and it has won customers unanimously praised.
——Square IE5 synchronous reluctance motor System
A motor is an electromagnetic device that uses a magnetic field as a medium to convert mechanical energy and electrical energy. It generates rotational torque through the interaction of the stator magnetic field and the rotor magnetic field. Induction motor (asynchronous motor): The rotor magnetic field is formed by the rotor speed and the synchronous speed of the stator magnetic field, creating a speed difference that induces rotor squirrel cage current. The rotor magnetic field of a permanent magnet motor is generated by a pre-magnetized permanent magnet. In general, the permanent magnet of a permanent magnet synchronous motor is made of neodymium iron boron rare earth. The permanent magnet of IE5 Synchronous Reluctance Motor is made of ferrite.
Synchronous Reluctance motors operate on the principle of magnetic reluctance, relying on the tendency of magnetic circuits to seek the path of least reluctance.
Unlike traditional motors, they don't have permanent magnets or winding on the rotor.
The working principle involves the rotor aligning itself with the stator's magnetic field due to the desire to minimize reluctance, resulting in rotation.
① IE5 synchronous reluctance motor uses rare earth-free permanent magnets:
It is a three-phase permanent magnet-assisted synchronous reluctance motor that uses ferrite permanent magnets to generate permanent magnet auxiliary torque and uses reluctance torque as the main driving torque.
②Super reliable and minimizes temperature rise. The IE5 synchronous reluctance motor has a very low winding temperature, which can greatly extend the life of the synchronous reluctance motor. At the same time, it can also increase the output power of the same base. Compared with ordinary IE2, the maximum power of the same power can be Reducing the frame size by two, the most important thing is that the extremely low temperature of the rotor can reduce the temperature of the bearings and reduce the temperature rise.
③Independently developed a synchronous reluctance driver based on the Internet of Things, designed using a high-performance vector control algorithm and integrating a variety of control methods to achieve high-performance and high-precision motor speed control, supporting photoelectric, absolute value, and magnetic encoding It meets control requirements such as encoder and encoderless control, and has automatic harmonic detection and suppression algorithms, which effectively reduces the 5th and 7th harmonics and improves motor vibration and noise problems.
④Independently design an intelligent management system to conduct real-time monitoring of the operating status of the motor, fault alarms and early warnings, historical data trend changes and statistical analysis, maintenance management and reminder suggestions, etc., to improve the operating efficiency of the motor and shorten the response time of operation management. 80%. The ultra-wide speed range is suitable for high-speed applications, and it can achieve high power density and wide efficiency range.
AC Voltage | 220/380/400/440/660V (customized) | Power | 0.75-315kW |
Frequency | 0-100Hz | Frame | 80-355 |
Efficiency | IE5 | Mounting | B3/B5/B35/B14 |
Standard | IEC60034 | Protection Class | IP55 |
Phase | AC Three phase | Cooling Method | IC411/IC416 |
Certificate | CE | Insulation class | F |
