Is A Synchronous Reluctance Motor AC Or DC?

Views: 8     Author: Site Editor     Publish Time: 2025-01-13      Origin: Site

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

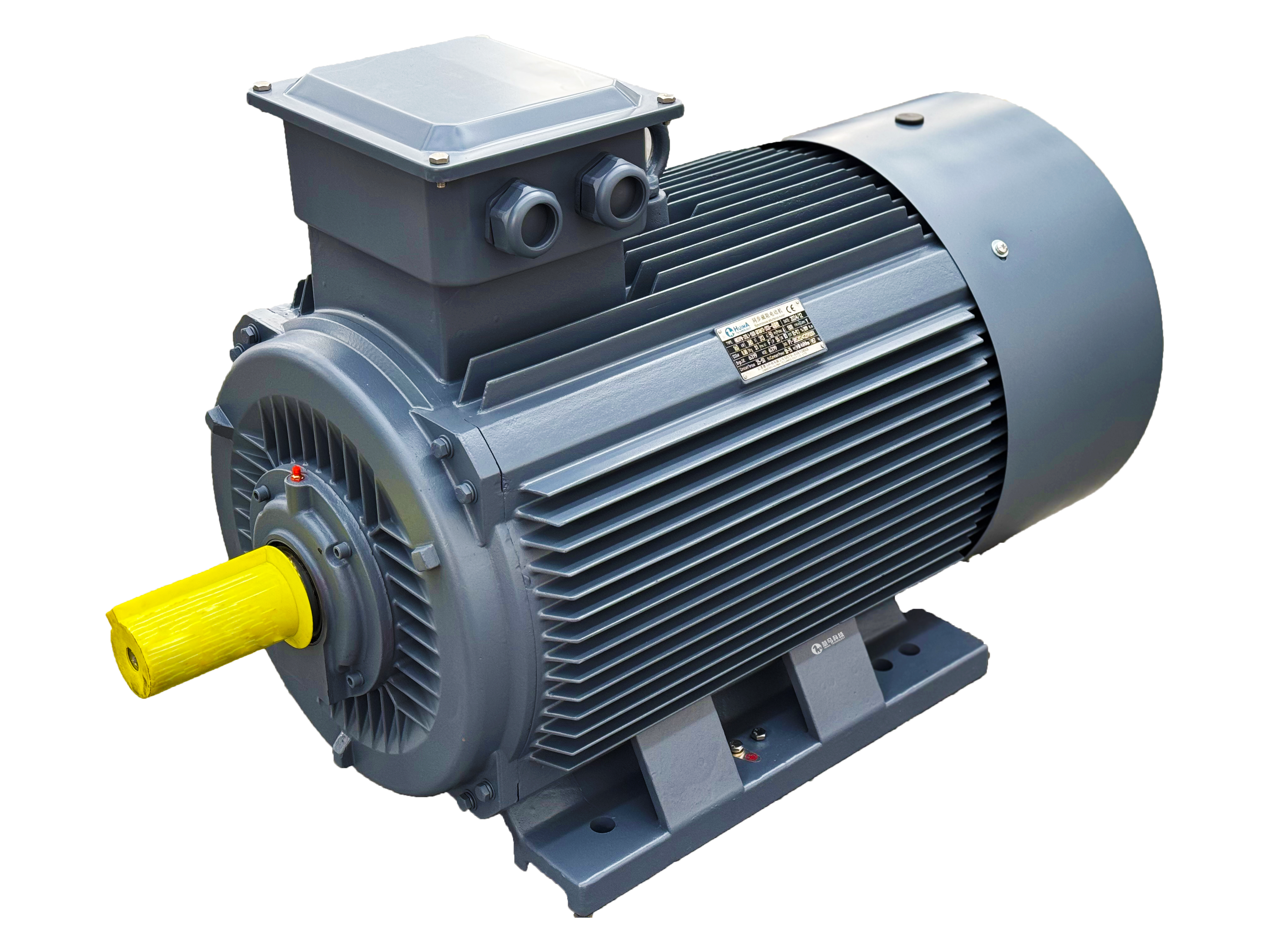

HUIMA Synchronous reluctance motor-3




A synchronous reluctance motor (SynRM) is a type of AC motor. Unlike DC motors, which rely on DC current and a commutator to produce torque, a SynRM uses alternating current (AC) to create a rotating magnetic field in the stator, causing the rotor to align with the field and create motion.



. What is a Synchronous Reluctance Motor?



A synchronous reluctance motor is a type of electric motor that operates based on the principle of magnetic reluctance. It uses the tendency of a magnetic field to take up a path of least reluctance to produce torque. In a SynRM, the rotor has no windings or magnets but instead relies on the varying reluctance to rotation to generate torque.

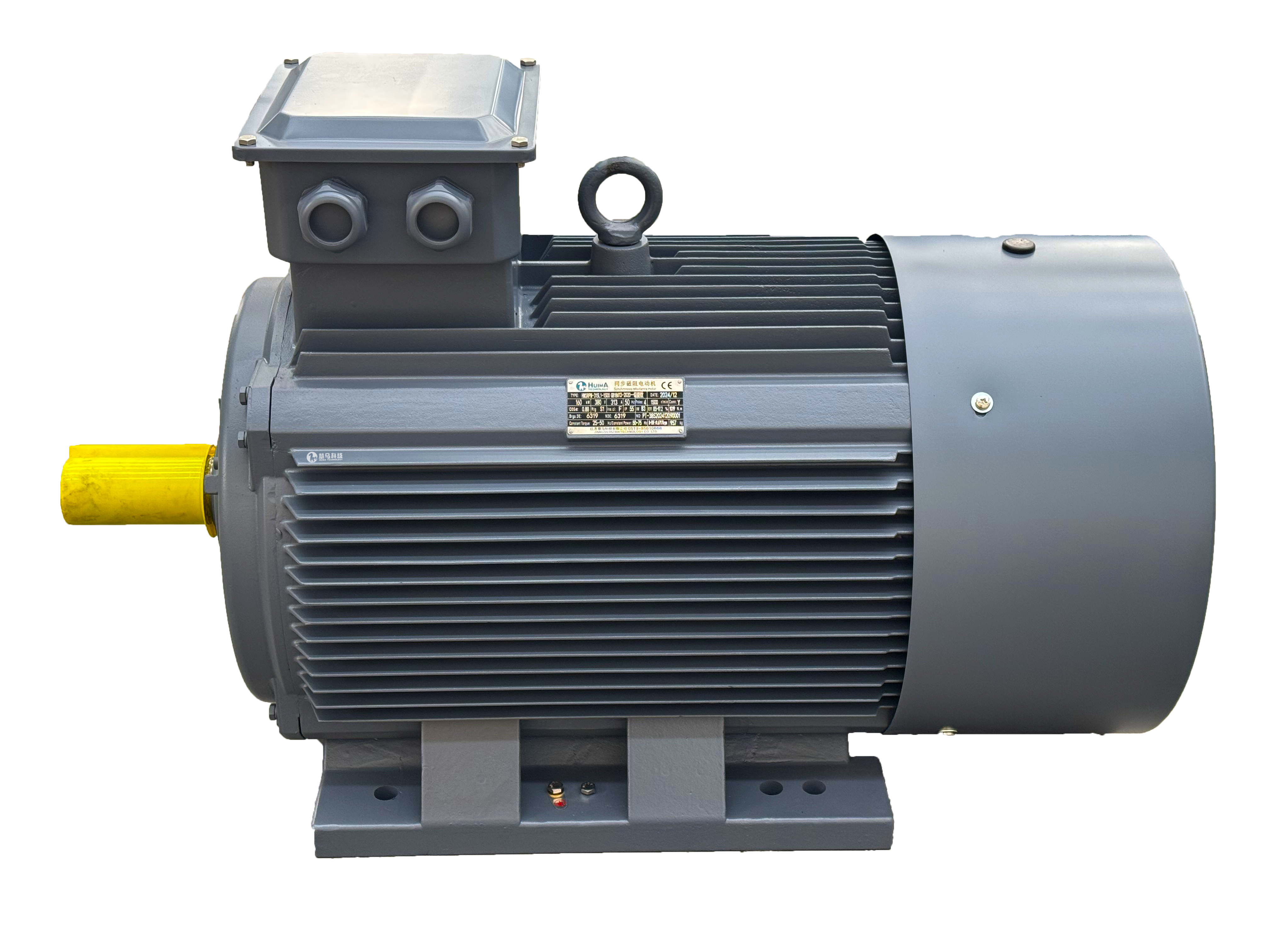

HUIMA Synchronous reluctance motor-2



Ⅱ. Key Features of Synchronous Reluctance Motors:



1. AC Operation

SynRMs operate using alternating current, making them distinct from DC motors.



2. No Rotor Windings

The rotor does not require any windings or permanent magnets, reducing complexity and cost.



3. High Efficiency

These motors are known for their high efficiency, especially at full load conditions.



4. Robustness

Due to the absence of windings in the rotor, SynRMs are more robust and less prone to maintenance issues compared to other types of motors.



5. Synchronous Speed

The rotor speed is synchronized with the supply frequency, providing precise control over speed and position.



. Mathematical Formulae for Synchronous Reluctance Motors:



Synchronous reluctance motors work on the principle of reluctance, where the rotor tends to align with the axis of the strongest magnetic field in the stator. The rotor of a synchronous reluctance motor does not contain windings or permanent magnets. Instead, the rotor is made of ferromagnetic material, and the reluctance varies depending on the shape of the rotor and the position of the magnetic field. The stator creates a rotating magnetic field, and the rotor aligns with this field to produce mechanical motion.



1. Synchronous Speed



The synchronous speed of a motor is the speed at which the magnetic field rotates. It is determined by the frequency of the alternating current (AC) supply and the number of poles in the motor.



Formula:



Synchronous reluctance motor formula-1



Where:

· Ns = Synchronous speed (RPM)

· f= Frequency of the AC supply (Hz)

· P = Number of poles in the motor



Explanation:

The synchronous speed is directly proportional to the frequency of the AC supply and inversely proportional to the number of poles in the motor.



2. Slip



The slip rate indicates the difference between the synchronous speed and the rotor speed as a percentage of the synchronous speed. It is an important factor in understanding the operating characteristics of the motor.



Formula:

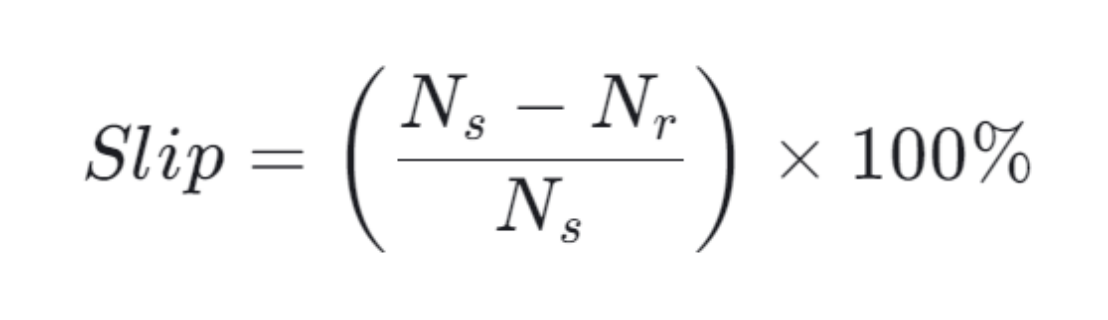

Synchronous reluctance motor formula-2



Where:

· Ns = Synchronous speed (in RPM)

· Nr = Rotor speed (in RPM)



Explanation

The slip value indicates how much slower the rotor is rotating compared to the magnetic field. In a typical motor, slip is a small value, usually between 0% and 6%.





3. Torque

Torque in a synchronous reluctance motor is related to the output power and angular velocity of the motor.



Formula

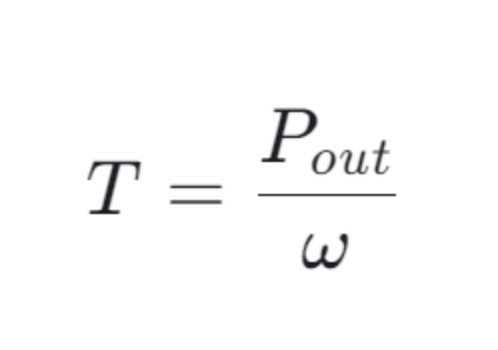

Synchronous reluctance motor formula-3



Where:

· T= Torque (Nm)

· Pout= Output power (W)

· ω= Angular velocity (rad/s)



Explanation



Torque is the force that rotates the rotor and is proportional to the output power divided by the angular velocity of the rotor. The angular velocity can be calculated using the following formula:

Synchronous reluctance motor formula-4





Where: Nr is the rotor speed in RPM.



These formulas are essential for understanding and calculating the performance of synchronous reluctance motors in various applications.


.  Are All AC Motors Synchronous?



Not all AC motors are synchronous. There are two main types of AC motors: synchronous and asynchronous (induction). Heres a brief overview of each type.



1. Synchronous Motors


· Types

Includes synchronous reluctance motors, permanent magnet synchronous motors (PMSM), and synchronous induction motors.



· Characteristics

Operate at synchronous speed, meaning the rotor speed matches the supply frequency. They provide constant torque regardless of changes in load.



· Applications

Used in applications requiring precise speed control such as in clocks, generators, and large industrial drives.



According to Mohan et al. (2017), synchronous motors are preferred in high-performance applications because they are able to maintain constant speed and torque under varying loads. This makes them ideal for applications where stability and precision are critical.


2. Asynchronous (Induction) Motors



· Types

Mainly includes induction motors.



· Characteristics

The rotor speed is slightly less than the synchronous speed, hence the term "asynchronous." They derive torque from the slip between the rotor and the magnetic field.



· Applications

Widely used in household appliances, fans, pumps, and various industrial applications due to their rugged construction and simplicity.



As per the research conducted by Wang et al. (2018), induction motors are favored for their simplicity and cost-effectiveness, making them suitable for a wide range of everyday applications. Despite their lower efficiency compared to synchronous motors, they remain popular due to their reliability and ease of use.



Ⅴ. Comparison Between AC and DC Motors



Characteristic

AC Motor

DC Motor

Type

Alternating Current (AC)

Direct Current (DC)

Working Principle

Rotating magnetic field

Commutator-based switching

Control Mechanism

Frequency control

Simple control mechanism

Maintenance

Less maintenance

Requires regular brush replacement

Efficiency

Higher efficiency

Lower efficiency

Common Types

Induction Motor, Synchronous Motor

Brushed and Brushless DC Motors




. Historical Impact on Synchronous Reluctance Motors



The development and adoption of synchronous reluctance motors have been influenced and driven by various events, figures, and advancements across different industries. Here are some notable contributions.



1. Electrical Engineering Advancements



· Development of High-Frequency Power Electronics

In the mid-20th century, the advent of high-frequency power electronics enabled the control and operation of synchronous reluctance motors to be more efficient. Major contributors include pioneers such as Robert J. Cordell, who developed the first practical high-frequency inverter in the 1960s.


2. Automotive Industry



· Hybrid and Electric Vehicles

The automotive industry has greatly promoted the development and application of synchronous reluctance motors, especially in hybrid and electric vehicles. Companies such as Nissan and Toyota have integrated these motors into their automotive designs, demonstrating their efficiency and performance. For example, Nissan's Leaf uses SynRM to improve energy efficiency and driving performance.


3. Energy Sector



· Renewable Energy Integration

The growth of renewable energy has accelerated the adoption of synchronous reluctance motors in wind turbines and solar tracking systems. Companies such as Vestas and Siemens have been at the forefront of integrating these motors into their renewable energy solutions to improve efficiency and reliability.


4. Industrial Manufacturing



· Automation and Precision Control

Synchronous reluctance motors are highly efficient and can be precisely controlled, and have been increasingly used in automation and robotics in the manufacturing industry. Companies such as FANUC and Yaskawa have developed advanced robotic systems that use synchronous reluctance motors to improve productivity and accuracy.


5. Academic Research and Development



· University Contributions

Academic institutions around the world have contributed greatly to the research and development of synchronous reluctance motors. Renowned researchers such as Professor Donald McLeman of the University of Ontario have made groundbreaking discoveries in improving the design and efficiency of these motors.


. Key Suppliers of Synchronous Reluctance Motors



Several renowned companies specialize in manufacturing high-efficiency synchronous reluctance motors. Below are some key suppliers along with their notable features.



1.Siemens



Siemens offers a range of high-efficiency synchronous reluctance motors suitable for various industrial applications. Their products are known for reliability and advanced technology. Siemens' motors are widely used in automotive, renewable energy, and manufacturing industries. For more information visit Siemens.



2.ABB



ABB provides a broad spectrum of synchronous reluctance motors that contribute to energy savings and improved performance in manufacturing processes. Their motors are designed to meet stringent industrial standards. ABB's expertise in automation and drive systems make them a key player in the industry. Learn more at ABB.



3.WeG



WeG is a Brazilian company specializing in the manufacture of electric motors, including high-efficiency synchronous reluctance motors. Their products aim to reduce energy consumption and carbon emissions making them a popular choice in environmentally conscious industries. Visit WeG for more details.



4.Schneider Electric



Schneider Electric provides innovative energy-efficient solutions including synchronous reluctance motors. Their products are designed to optimize performance and reduce energy consumption in various industrial applications. Schneider Electric's commitment to sustainability and technological advancement makes them a trusted supplier in the industry. Explore their offerings at Schneider Electric.



5.Jiangsu Huima Technology Co. Ltd



Jiangsu Huima Technology Co. Ltd focuses on industrial energy-saving and carbon reduction services specializing in research and development, manufacturing, and sales of synchronous reluctance motors. Their notable achievement includes having their permanent magnet-assisted synchronous reluctance motor included in the National Energy-Saving and Carbon-Reducing Equipment (Products) Directory (2024 Edition). Visit Huima Tech for more information.



. Literature Arguments and Citations



According to Stephen J. Chapman, Electric Motors and Drives (4th edition, ISBN-13: 978-1-259-60361-8), synchronous reluctance motors (SynRMs) are inherently more efficient than induction motors due to their design and operating principles. This high efficiency makes them suitable for applications where precise speed control and high energy efficiency are critical.

In addition, a study published in the IEEE Transactions on Energy Conversion (Vol. 31, No. 4, October 2016) highlights advances in synchronous reluctance motor technology and its potential impact on reducing global energy consumption.


Ⅸ. Conclusion



Synchronous reluctance motors are distinct from both traditional DC motors and other types of AC motors due to their reliance on alternating current and magnetic reluctance principles. Several companies like Siemens, ABB, WeG, Brook Crompton, Schneider Electric, and Jiangsu Huima Technology Co. Ltd provide advanced solutions in this area, contributing globally to energy savings and improved performance.
