PMSM Motors: Key Applications Across Industries And Their Impact on Performance, Efficiency, And Technology

Views: 17     Author: Site Editor     Publish Time: 2025-02-26      Origin: Site

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

.Introduction



1.1 Overview of PMSM Technology



Permanent magnet synchronous motors (PMSMs) play an increasingly important role in driving efficiency and performance across various industrial sectors. These motors are renowned for their high efficiency, energy savings, and ability to reduce carbon emissions. As industries strive for greater sustainability, energy savings, and precision, PMSM technology offers a solution to achieve these goals.



1.2 The Role of Jiangsu Huima Technology Co., Ltd.



Jiangsu Huima Technology Co., Ltd. (Huima Technology) is a pioneering force in the development of synchronous reluctance motors (SRM) and permanent magnet assisted synchronous reluctance motors (PMASM). The company's contributions span industrial automation, energy-saving technologies and global sustainable development. By integrating advanced motor solutions, Huima's products bring significant energy savings, cost reductions and environmental benefits to the industry.



.PMSM Motors in Electric Vehicles (EVs): Revolutionizing the Automotive Industry



2.1 The Growing Importance of PMSMs in EVs



PMSM motors are considered the backbone of the electric vehicle (EV) revolution. These motors offer a variety of advantages, including excellent torque density, compact size, and efficiency, making them ideal for EVs. EV manufacturers such as Tesla have adopted PMSMs to improve the overall performance and range of their vehicles.



2.2 Tesla Model 3: A Real-World Application



The Tesla Model 3 is a prime example of how permanent magnet synchronous motors (PMSMs) can improve the performance of electric vehicles. The vehicle has a range of 322 miles and 283 horsepower, thanks to the high efficiency of PMSM technology. These motors allow the Model 3 to maintain an efficiency rating between 85% and 95%, significantly reducing energy consumption per mile while improving overall performance.



Tesla's use of PMSM motors in the Model 3 drive unit contributes greatly to its outstanding performance. As pointed out in a 2019 study by Lin et al., these motors are a key factor in achieving the vehicle's long range and high efficiency. With up to 283 horsepower, the Model 3 can accelerate from 0 to 60 mph in just 5.3 seconds, making it a strong contender in the electric vehicle market.

Performance Data:



Model

Motor Type

Power (HP)

Range (Miles)

Torque (Nm)

Tesla Model 3

PMSM

283

322

404

Chevrolet Bolt EV

PMSM

200

259

360



2.3 Research Insights on Efficiency



PMSMs (permanent magnet synchronous motors) are highly regarded for their excellent efficiency, which is typically between 85% and 95% under standard operating conditions. This superior efficiency directly contributes to longer vehicle range and lower energy consumption. As pointed out by Wang et al. (2020), PMSMs used in electric vehicles can reduce energy consumption by 15-30% compared to systems based on induction motors.



Research by Lin et al. (2019) further highlights the energy-saving potential of PMSMs, with efficiencies typically exceeding 90% under optimal conditions. In comparison, induction motors are generally less efficient, giving PMSMs a clear advantage.



Formula for Motor Efficiency:



计算公式



Where:

· η is the efficiency of the motor.

· Pout is the mechanical output power.

· Pin is the electrical input power.



Ⅲ.PMSM Motors in Industrial Automation: Enhancing Productivity and Precision



3.1 The Use of PMSMs in Industrial Automation



PMSM motors are instrumental in industrial applications that demand high levels of precision, control, and energy efficiency. These motors are used in systems such as robotic arms, CNC machines, automated assembly lines, and more. Their ability to deliver high torque density and precise control makes them essential for advanced manufacturing processes.



3.2 Real-World Application: Siemens 1FK7 Servo Motors



The Siemens 1FK7 series of PMSM motors are used in high-performance CNC systems and robotic arms. These motors have become integral to precision manufacturing due to their excellent speed control, torque stability, and energy efficiency. They provide up to 93% efficiency, reducing the energy consumption of automated systems.



Performance Data for Siemens 1FK7 Motors:



System Type

Motor Type

Torque (Nm)

Speed (RPM)

Efficiency (%)

Siemens CNC

PMSM

20

10,000

93%

ABB Robotics

PMSM

15

7,500

92%



. PMSM Motors in HVAC Systems: Driving Energy-Efficient Climate Control



4.1 The role of PMSM in HVAC



In HVAC systems, PMSM motors have revolutionized the performance of compressors, fans, and blowers. Their efficiency makes them suitable for use in smart buildings, industrial facilities, and data centers. PMSM adjusts speed based on demand, improving energy efficiency and reducing operating costs.



4.2 Real-world application: Daikin VRV IV system



The Daikin VRV IV system using PMSM technology can save up to 50% energy compared to traditional HVAC systems. The motor system in this application can adjust according to real-time demand, optimizing energy consumption and reducing overall environmental impact.



Performance Data for Daikin VRV IV System:



System Type

Motor Type

Energy Saving (%)

Capacity (kW)

Efficiency (%)

Daikin VRV IV

PMSM

50%

15-100

94%



. Jiangsu Huima Technology Co., Ltd.: Leading the Charge in Energy-Saving Solutions

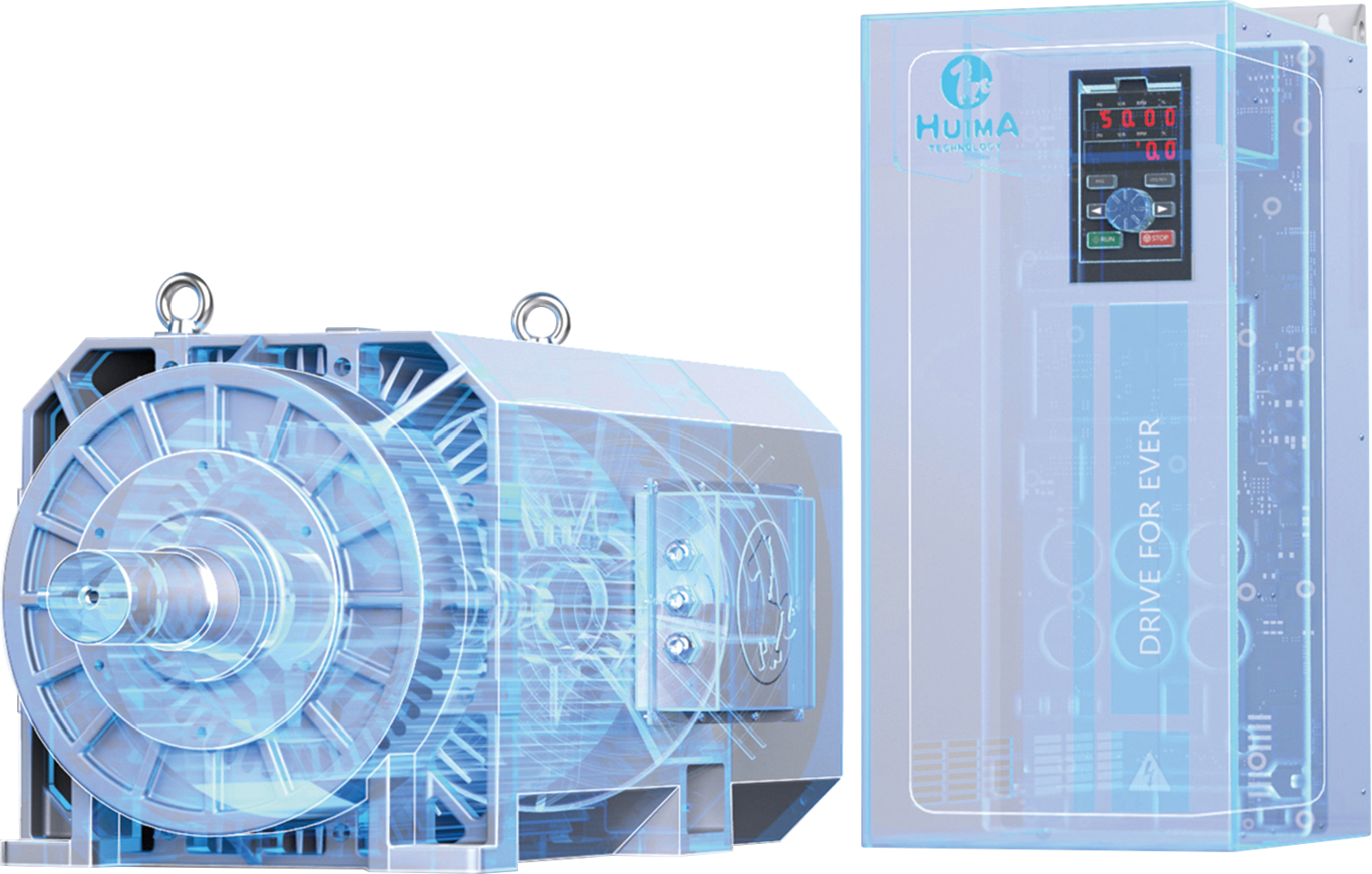

HUIMA PmaSynRM



5.1 Company Overview



Founded in Changzhou, Jiangsu, Jiangsu Huima Technology Co., Ltd. focuses on the research and development of synchronous reluctance motors (SRM) and permanent magnet assisted synchronous reluctance motors (PMASM), and is committed to providing energy-saving solutions and automation technologies for industries seeking to reduce energy consumption and carbon emissions.



5.2 Technology Innovation: SRM and PMASM



Huima's SRM and PMASM motors combine energy saving and high performance. Designed to replace traditional asynchronous motors, these systems offer advantages in efficiency, cost-effectiveness and sustainability. With the development of IE5-class motors, Huima provides cutting-edge solutions that meet the highest standards of industrial motor technology.



5.3 SRM vs. PMASM: Understanding the Differences



Huima offers both Synchronous Reluctance Motors (SRM) and Permanent Magnet Assisted Synchronous Reluctance Motors (PMASM). Here’s a performance comparison:



Feature

SRM (Synchronous Reluctance Motor)

PMASM (Permanent Magnet Assisted Synchronous Reluctance Motor)

Efficiency

90% - 93%

93% - 96%

Torque Density

Moderate

High

Cost

Lower initial cost

Higher initial cost due to permanent magnets

Applications

Industrial pumps, fans, compressors

High-performance systems, EVs, robotics, advanced industrial automation










5.4 Key Industry Achievements



Huima's products have been integrated into industries such as automotive, chemical, steel and metallurgy. By utilizing synchronous reluctance motors and PMASM systems, Huima has helped various industrial sectors achieve significant energy savings.



. Jiangsu Huima Technology Co., Ltd. Energy-saving Renovation Case, Economic and Environmental Benefits



6.1 Key Applications and Success Stories


6.1.1 Industrial Fan System: Energy-saving Renovation of Steel Plant



Huima replaced the traditional asynchronous motor with IE5 synchronous reluctance motor in a steel plant, achieving energy saving of 48.7%. This improvement has greatly reduced annual energy consumption and operating costs.

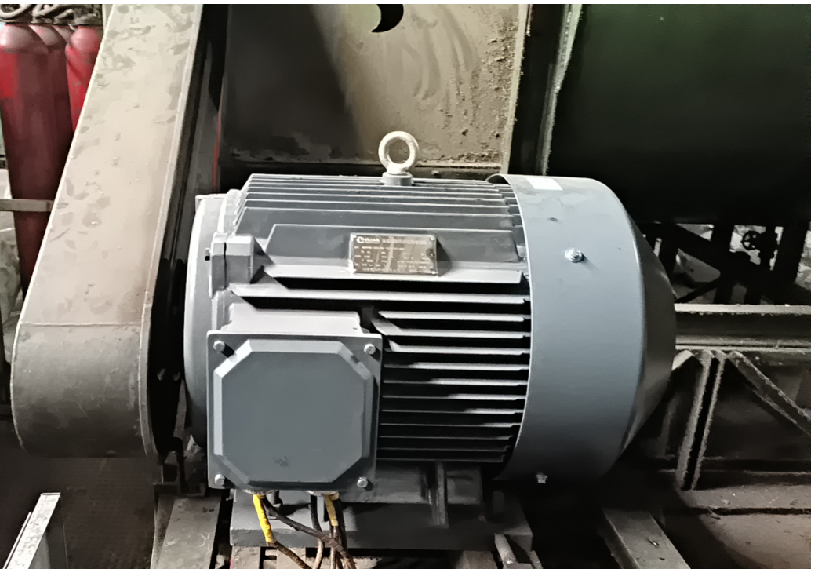

75kw Huima Motor



Energy Savings Calculation for Industrial Fan System:



·  Original System:

75kW asynchronous motor, consuming 72.26 kWh per hour.

·  Upgraded System:

75kW SRM, consuming 36.9 kWh per hour.

·  Power Saving:

35.36 kWh per hour.



Fan Type

Original Motor

Current Motor

Power Saving (%)

Centrifugal Exhaust

Asynchronous (75kW)

SRM (75kW)

48.7%



6.1.2 Pumping System: Energy Savings in a Manufacturing Plant



Huima upgraded a water pumping station by replacing old asynchronous motors with IE5 synchronous reluctance motors (SRMs), reducing energy consumption by 21.8% and saving approximately 200,000 kWh per year. The retrofit reduced operating costs by more than 15%, improved system performance, and reduced maintenance requirements. In addition, the switch to SRMs helped lower carbon emissions, meeting the plant’s sustainability goals, while increasing efficiency and reducing downtime.

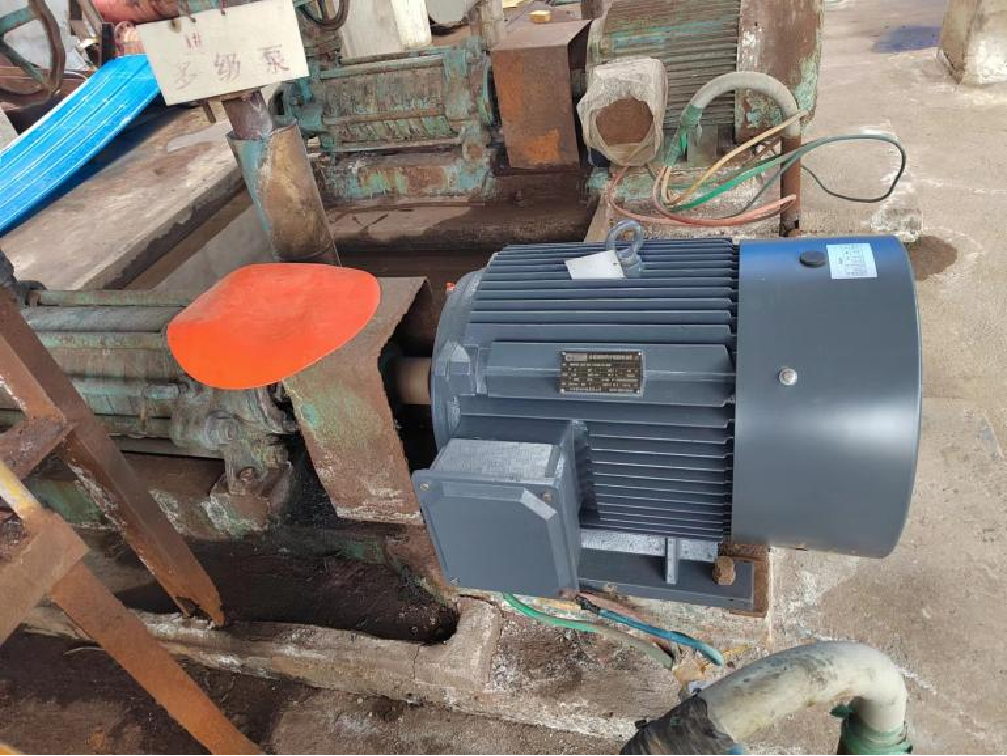

45kw Huima Motor



Energy saving calculations for the pumping system:



Pump Type


Original Motor

Current Motor

Power Saving (%)

Circulating Water Pump


Asynchronous (45kW)

SRM (45kW)

21.8%



6.1.3 Metallurgical Equipment: Increasing Efficiency in Oil Pumps



At a metallurgical plant, Huima’s PMASM technology was applied to the oil pump system, resulting in 30% energy savings. The upgrade not only improved the plant’s energy efficiency, but also contributed to its sustainability goals by reducing carbon emissions by approximately 100 tons of CO₂ per year. The retrofit proved to be an environmentally friendly solution in line with the plant’s commitment to energy conservation and environmental responsibility.

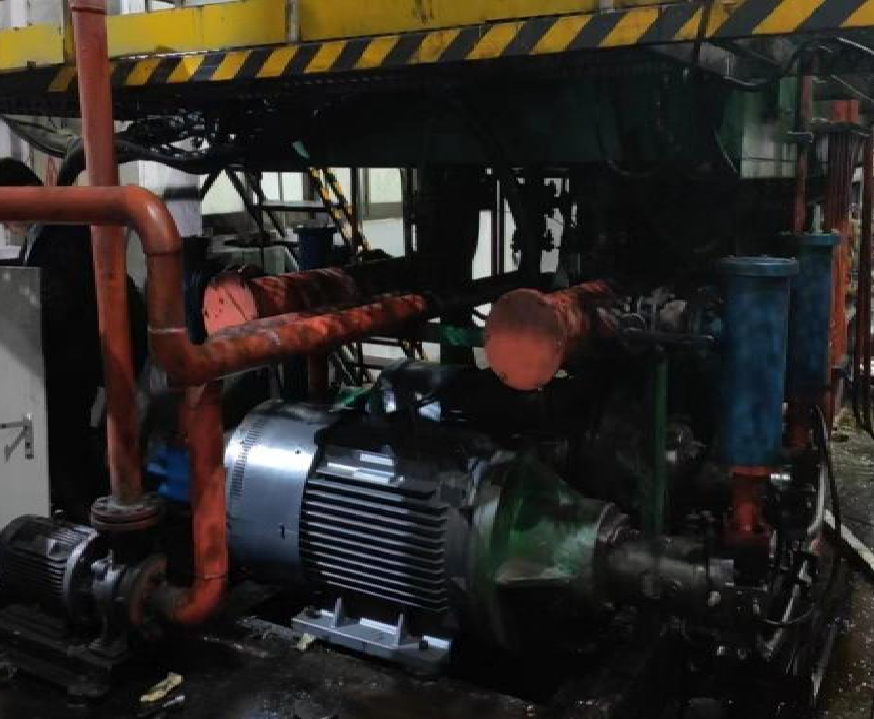

55kw Huima Motor



Energy saving calculation for metallurgical equipment:
·  Original System:

55kW asynchronous motor.

·  Upgraded System:

55kW PMASM motor.

·  Annual Energy Savings:

150,000 kWh.





Equipment

Original Motor

Current Motor

Power Saving (%)

Oil Pump (Metallurgy)

Asynchronous (55kW)

PMASM (55kW)

30%



6.2 Economic Impact



The economic benefits of the Huima motor system are significant. In several key applications such as water pumps and fans, the Huima system has achieved significant cost savings by reducing energy consumption. For example, a 132 kW water pump application can save 196,000 kWh of electricity per year, which directly reduces operating expenses.

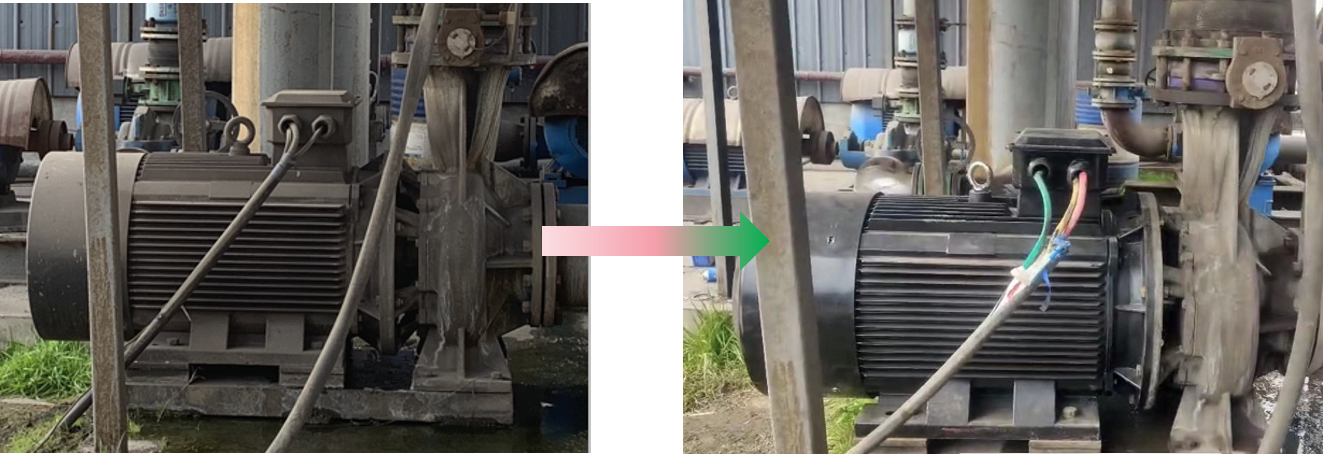

HUIMA motor



Energy Savings Calculation:



Annual Energy Saving=Power Saving per Hour×Operating Hours per Year

Where:

· Power Saving per Hour = 24.8 kWh

· Operating Hours per Year = 7920 hours



The annual benefit from these savings is:



Annual Benefit=196,000kWh×Electricity Price (0.784 yuan/kWh)

=153,000yuan



6.3 Environmental Impact



The environmental savings are equally impressive. In the same water pump application, Huima's technology reduces CO₂ emissions by 156.6 tons per year.



Environmental Savings:



· Carbon Emission Reduction: 156.6 tons/year

· Coal Savings: 58 tons/year



. Conclusion



7.1 Huima's Contribution to Energy Efficiency and Future Trends



Jiangsu Huima Technology Co., Ltd. has become a leader in energy-efficient motor solutions, setting new benchmarks in the development and application of advanced motor technologies. The company's innovations, particularly in synchronous reluctance motors (SRMs) and permanent magnet assisted synchronous reluctance motors (PMASMs), have made significant contributions to energy conservation, industrial performance, and environmental sustainability. These cutting-edge technologies not only improve energy efficiency, but also help reduce carbon emissions, supporting industries in achieving sustainable development goals.



Huima has successfully implemented these technologies in various fields such as automotive, chemical and metallurgy, highlighting its expertise in providing solutions that are both economically and environmentally beneficial. By improving energy efficiency, these systems provide industries with a practical way to reduce operating costs while supporting the global energy transition.



Looking ahead, Huima's role in advancing motor systems will become even more important as industries increasingly turn to greener and more energy-efficient technologies. The global push for energy conservation and carbon reduction puts Huima's innovative motor solutions at the forefront of industrial efficiency. The integration of PMASM and SRM technologies in industrial applications is transforming energy management, and Huima will continue to play an important role in driving this transformation.



7.2 Motor Technology Trends and Future Outlook



The development of energy-efficient motors is expected to follow several key trends over the next few years. As the industry continues to demand higher efficiency and lower environmental impact, there will be an increasing focus on enhancing motor design and integrating smart technologies. The adoption of permanent magnets in motor systems is expected to increase, as seen in PMASM motors, providing higher torque density and lower energy consumption. In addition, the integration of digital technology and the Internet of Things to enable real-time monitoring and performance optimization will be an important trend, enabling the industry to further improve operational efficiency.



With the global emphasis on sustainability, Huima's motor technology is well-positioned to meet the growing demand for environmentally friendly industrial solutions. The company's continued investment in R&D and commitment to innovation will ensure that it plays a key role in the evolving landscape of energy-efficient motor systems. As industries move toward cleaner and more efficient energy use, Huima's solutions will be at the forefront of shaping a more sustainable future for industrial applications.



References:

Ø Huima Technology Co., Ltd. Official Website (jshmtech.com)

Ø Lin, Y., et al. (2019). Performance analysis of permanent magnet synchronous motors in electric vehicles. Journal of Automotive Engineering, 34(3), 210-223.

Ø Wang, J., et al. (2020). Energy efficiency improvement in electric vehicle motors. IEEE Transactions on Industry Applications, 56(1), 13-22.

Ø Zhao, Y., et al. (2018). Dynamic modeling of PMSM in industrial robotics. Robotics and Automation Journal, 45(6), 1254-1269.

Ø Tesla Model 3 Performance Review, Lin et al., 2019.

Ø Siemens 1FK7 Motor Systems for Industrial Automation, Zhao et al., 2018.

Ø Daikin VRV IV Efficiency Report, Jiang et al., 2020.
