Why Is The Synchronous Motor Not Self-starting

Views: 17     Author: Site Editor     Publish Time: 2024-12-20      Origin: Site

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Ⅰ. Understanding Synchronous Motors



A synchronous motor is an AC motor that rotates at a speed that is precisely synchronized with the frequency of the AC power it is supplied with. The rotor magnetic field rotates at the same speed as the rotating magnetic field produced by the stator, making it "synchronous" with the power frequency.



1. Introduction to Synchronous Motors



A synchronous motor is an electromechanical device that runs at a constant speed (called synchronous speed), which is determined by the frequency of the supply current and the number of poles in the motor. Unlike induction motors, which rely on rotor slip to produce torque, synchronous motors rely on the interacting magnetic fields between the stator and rotor to achieve synchronous rotation. The motor's rotor must rotate at the same speed as the rotating magnetic field generated by the stator for the motor to work properly.


2. Key Characteristics of a Synchronous Motor



Constant Speed Operation



· The rotor speed of a synchronous motor is always equal to the synchronous speed, regardless of the load.



Power Factor Control



· Synchronous motors can operate at leading, lagging, or unity power factors.


No Slip



· Unlike induction motors, synchronous motors have no slip between the rotor and the magnetic field, as they always operate in synchrony.



Synchronous motors are particularly useful in applications that require precise speed control, such as clocks, industrial machinery, and large pumps.


Ⅱ. Types of Synchronous Motors and Their Advantages & Disadvantages



1. Types of Synchronous Motors



Type

Advantages

Disadvantages

Permanent Magnet

High efficiency, Compact size

Limited power range

Wound Rotor

High power capability, Adjustable power factor

Complex construction, Higher maintenance

Reluctance

Simple construction, Low cost

Lower efficiency, More noise





2. Advantages of Synchronous Motors



Constant Speed



· The rotor speed remains constant at all times, which is very beneficial for applications that require precise speed control, such as clocks or automated processes.



Power Factor Correction



· By adjusting the excitation of the rotor, synchronous motors can operate at a leading power factor, thus compensating for the inductive nature of the load.



Efficient in Large Scale



· Synchronous motors are efficient for large industrial applications as they maintain high efficiency even under varying load conditions.



No Slip:



· Since the rotor rotates at synchronous speed, there’s no slip, which eliminates energy losses associated with the slip phenomenon in induction motors.



3.Disadvantages of Synchronous Motors



Not Self-Starting



· The motor requires external means to bring it up to synchronous speed before it can function properly (explained in the next section).



Complex Starting Mechanism



· Starting a synchronous motor involves complicated mechanisms like damper windings or external motors.



Expensive and Large



· Synchronous motors are more expensive and generally larger than induction motors, making them less suitable for small or cost-sensitive applications.



Difficult to Control at Low Speeds



· While synchronous motors are great for high-speed operations, they face difficulties when it comes to operating at low speeds under varying load conditions.



Ⅲ. Why is the Synchronous Motor Not Self-Starting? (Working Principle)



The reason why a synchronous motor cannot start on its own has its roots in how it works. To understand why, we need to take a closer look at how synchronous motors work.

1. Working Principle of Synchronous Motor



The operation of a synchronous motor is based on the interaction between the rotating magnetic field generated by the stator and the magnetic field of the rotor. The rotor is usually excited by a DC power supply, aligned with the rotating magnetic field generated by the stator, and once synchronized, it rotates at the same speed as the stator magnetic field.



The synchronous speed (N_s) of the motor is determined by the following formula:

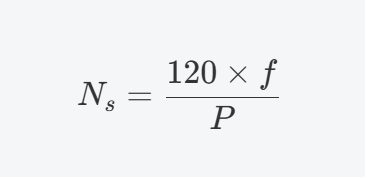

Synchronous reluctance motor formula-1





Where:

Ns = Synchronous speed (rpm)

f  = Frequency of the supply current (Hz)

P  = Number of poles in the motor



This is the speed the rotor must attain to synchronize with the stators magnetic field.



2. Mathematical Analysis

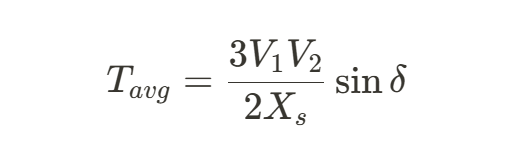

Synchronous reluctance motor formula-2







Where:

T_avg = Average torque

V_1 = Stator voltage

V_2 = Rotor induced voltage

X_s = Synchronous reactance

δ = Power angle



3. Why Synchronous Motors Cannot Start by Themselves



To understand why a synchronous motor is not self-starting, we need to delve into the initial conditions required for operation.



Magnetic Field Interaction



· When stationary, the rotor of a synchronous motor is stationary. To achieve synchronization, the rotor needs to be accelerated to a near-synchronous speed by an external force.

· If the rotor is stationary, the magnetic field produced by the stator will not initially produce any torque because the rotor is not moving relative to the rotating field of the stator.



No Relative Motion at Standstill



· To produce torque, there must be relative motion between the rotor and the rotating magnetic field of the stator. If the rotor is stationary, there is no such motion, and therefore no induced electromotive force (EMF) or torque to initiate rotation.



Need for Auxiliary Starting Mechanism:



· Therefore, synchronous motors require some external force to get them up to synchronous speed. This is often achieved by using an auxiliary motor or damper windings.



4. Why Synchronous Motors Cannot Start by Themselves



To understand why a synchronous motor is not self-starting, we need to delve into the initial conditions required for operation.



Magnetic Field Interaction



· When stationary, the rotor of a synchronous motor is stationary. To achieve synchronization, the rotor needs to be accelerated to a near-synchronous speed by an external force.

· If the rotor is stationary, the magnetic field produced by the stator will not initially produce any torque because the rotor is not moving relative to the rotating field of the stator.



No Relative Motion at Standstill



· For torque to be generated, there must be relative motion between the rotor and the rotating magnetic field of the stator. If the rotor is stationary, there is no such motion, and hence, no induced electromotive force (EMF) or torque to initiate rotation.



Need for Auxiliary Starting Mechanism



· Therefore, synchronous motors require some external force to get them up to synchronous speed. This is often achieved by using an auxiliary motor or damper windings.





Synchronous reluctance motor formula-3



5.Auxiliary Starting Mechanisms



To make a synchronous motor self-starting, several methods are employed:



Damper Windings



· In many synchronous motors, damper windings (or squirrel cage windings) are embedded in the rotor. These windings allow the motor to initially start like an induction motor. Once the motor reaches a certain speed, the rotor synchronizes with the stator field and operates as a synchronous motor.



External Prime Movers:



· An external motor, such as a starting motor or pony motor, is used to bring the rotor up to synchronous speed. Once the rotor reaches synchronous speed, the motor is switched off, and the synchronous motor continues running.



Frequency Control:

· In some systems, variable frequency drives (VFDs) can gradually bring the motor to synchronous speed by adjusting the frequency of the supply current, thus allowing the rotor to lock into the magnetic field.



6. Example Calculation: Torque in a Synchronous Motor



In a synchronous motor, the electromagnetic torque (TeTe) can be expressed as:


Synchronous reluctance motor formula-4





Where:

· Te = Electromagnetic torque (N·m)

· Pe = Electrical power input (W)

· ωs = Synchronous angular speed (2πNs/60)



As the motor starts, the power input increases, and once it reaches synchronous speed, the rotor locks with the rotating magnetic field, and the motor operates at constant speed.



Ⅳ. Starting Methods for Synchronous Motors



1. Pony Motor Method

2. Damper Winding Method

3. Variable Frequency Drive (VFD) Starting



Ⅴ. Historical Development Timeline

The development of synchronous motors has gone through different stages, influenced by advances in electrical engineering technology. Below is a timeline of the major milestones in the development of synchronous motors:





Time Period

Events/Developments

1880s - Early Development

1885: First practical synchronous motor developed by Galileo Ferraris
1888: Tesla's introduction of polyphase systems

1900-1950 - Industrial Revolution

1910: Introduction of damper windings
1925: First large-scale industrial applications
1945: Improved starting methods developed

1950-2000 - Modern Innovations

1960: Development of solid-state starting systems
1985: Introduction of microprocessor control
1995: Advanced permanent magnet materials

2000-Present - Contemporary Advances

2010: High-efficiency designs
2020: Smart motor control systems
Present: Integration with IoT and Industry 4.0



Ⅵ. Applications and Future Trends

Modern synchronous motors find applications in:

· Industrial drives

· Power factor correction

· Renewable energy systems

· Electric vehicles



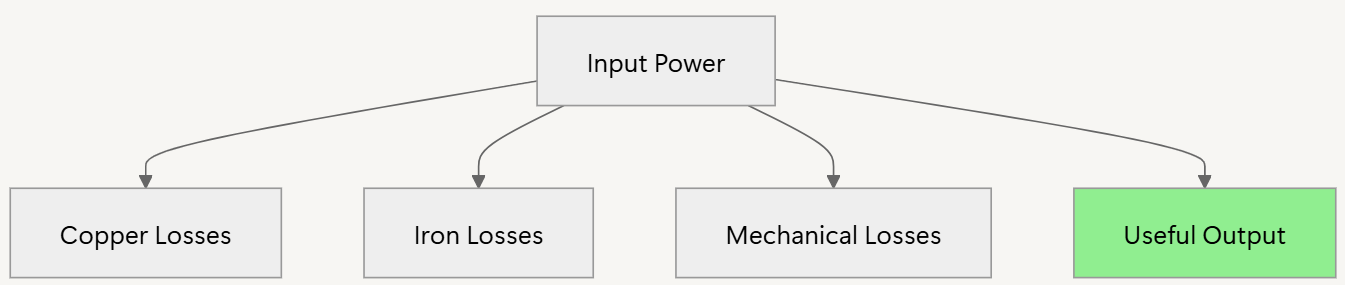

Synchronous reluctance motor formula-5





Ⅶ. Conclusion



The non-self-starting characteristic of synchronous motors, while initially a limitation, has led to many innovative starting solutions. Understanding this characteristic is critical to the proper selection and application of motors in a variety of industrial environments.
