How Does A Synchronous Reluctance Motor Work? Electromagnetic Principle Explained

Introduction: Understanding the Working Principle of SynRM

A Synchronous Reluctance Motor (SynRM) is an advanced AC motor that generates torque by utilizing the difference in magnetic reluctance between different rotor axes.

Unlike induction motors, SynRM does not rely on rotor current to produce torque. Unlike permanent magnet synchronous motors (PMSM), SynRM does not require permanent magnets.

Instead, SynRM uses an optimized rotor structure with flux barriers to create magnetic saliency, allowing the rotor to align with the rotating magnetic field generated by the stator.

This unique electromagnetic principle enables SynRM motors to achieve:

• High efficiency

• Low rotor losses

• Magnet-free operation

• Excellent performance in variable speed industrial applications

Modern SynRM technology is widely used in:

• Industrial pumps

• HVAC systems

• Fans

• Compressors

• Energy-saving retrofit projects

1. Basic Electromagnetic Principle of SynRM

A SynRM operates based on a fundamental electromagnetic concept:

Magnetic flux always follows the path with the lowest magnetic reluctance.

The rotor is designed with different magnetic resistance paths, creating a magnetic imbalance called saliency.

1.1 What Is Magnetic Reluctance?

Magnetic reluctance describes the resistance that a magnetic circuit presents to magnetic flux.

It is similar to electrical resistance:

• Electrical resistance limits current flow

• Magnetic reluctance limits magnetic flux flow

The rotor design of SynRM intentionally creates:

• Low reluctance path (d-axis)

• High reluctance path (q-axis)

This electromagnetic design principle is the foundation of modern high efficiency synchronous motors used in IE4 and IE5 industrial applications.

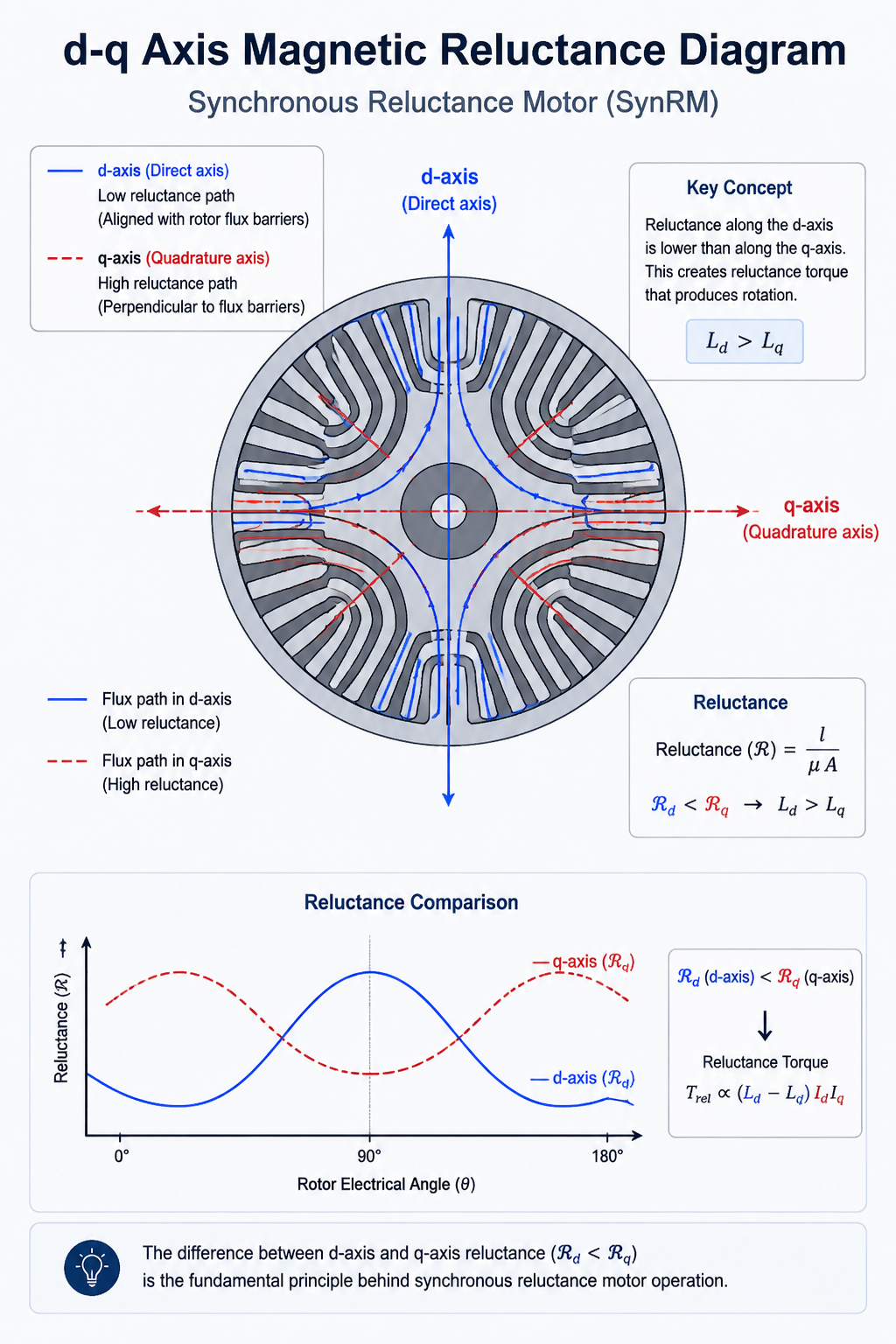

1.2 Magnetic Saliency (Ld and Lq Difference)

The key performance factor of SynRM is the inductance difference:

• Ld = direct-axis inductance

• Lq = quadrature-axis inductance

A higher difference between Ld and Lq creates stronger torque production.

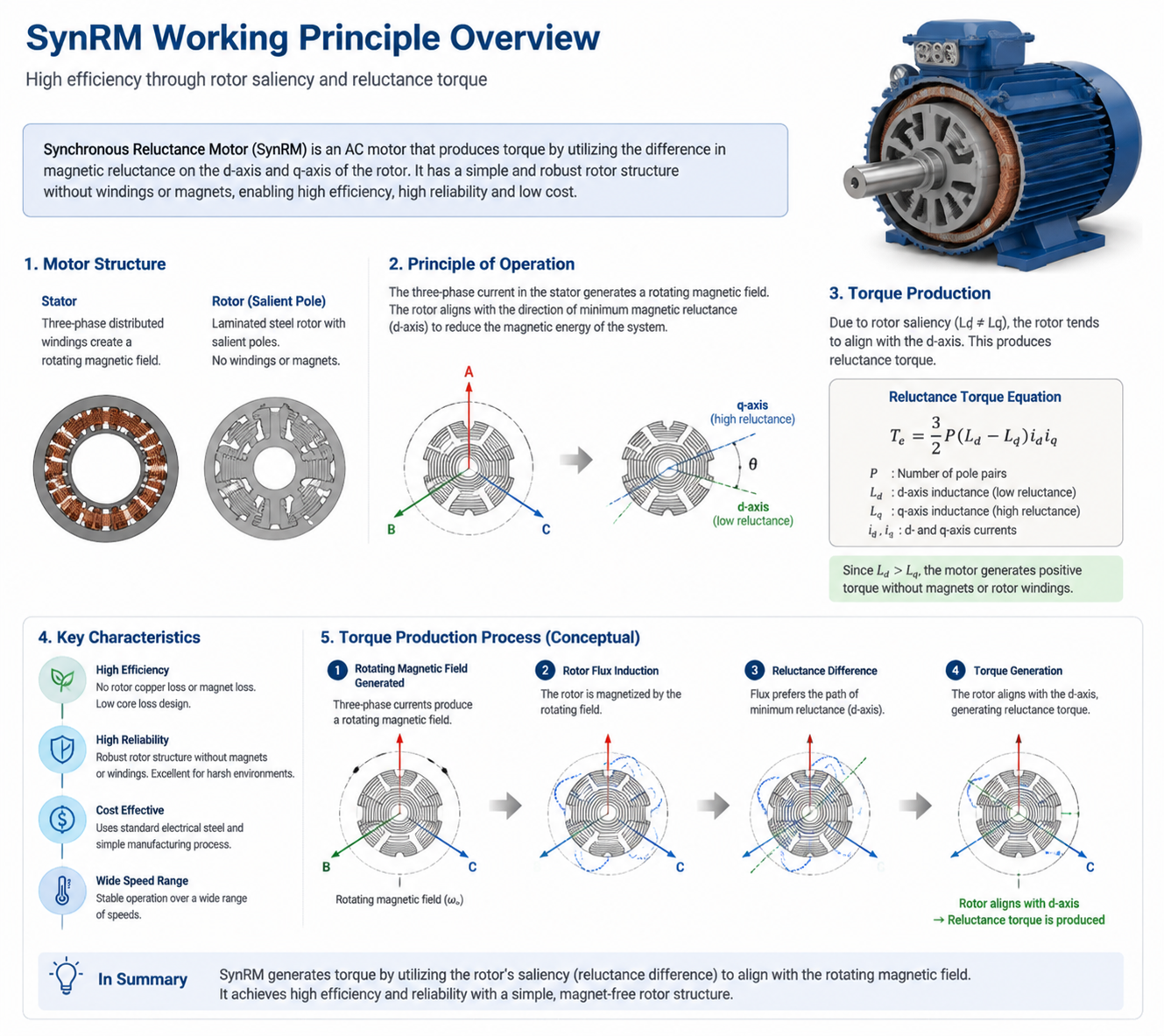

2. How Does a SynRM Generate Torque?

The torque generation process of SynRM consists of three main stages.

2.1 Stage 1: Stator Creates a Rotating Magnetic Field

When three-phase AC power is supplied to the stator winding:

1. Three-phase current flows through stator coils

2. A rotating magnetic field is generated

3. The magnetic field rotates at synchronous speed

The synchronous speed is determined by:

• Supply frequency

• Number of motor poles

2.2 Stage 2: Rotor Aligns With Magnetic Field

The SynRM rotor does not contain:

• Permanent magnets

• Rotor windings

• Squirrel cages

Instead, it contains specially designed flux barriers.

When exposed to the rotating magnetic field:

• Magnetic flux prefers the lowest reluctance direction

• Rotor rotates toward the aligned position

• Continuous torque is produced

2.3 Stage 3: Continuous Synchronous Operation

Once synchronized:

• Rotor speed equals stator magnetic field speed

• No slip occurs

• Rotor losses are minimized

This is the major difference compared with induction motors.

3. SynRM Rotor Structure: The Key to Performance

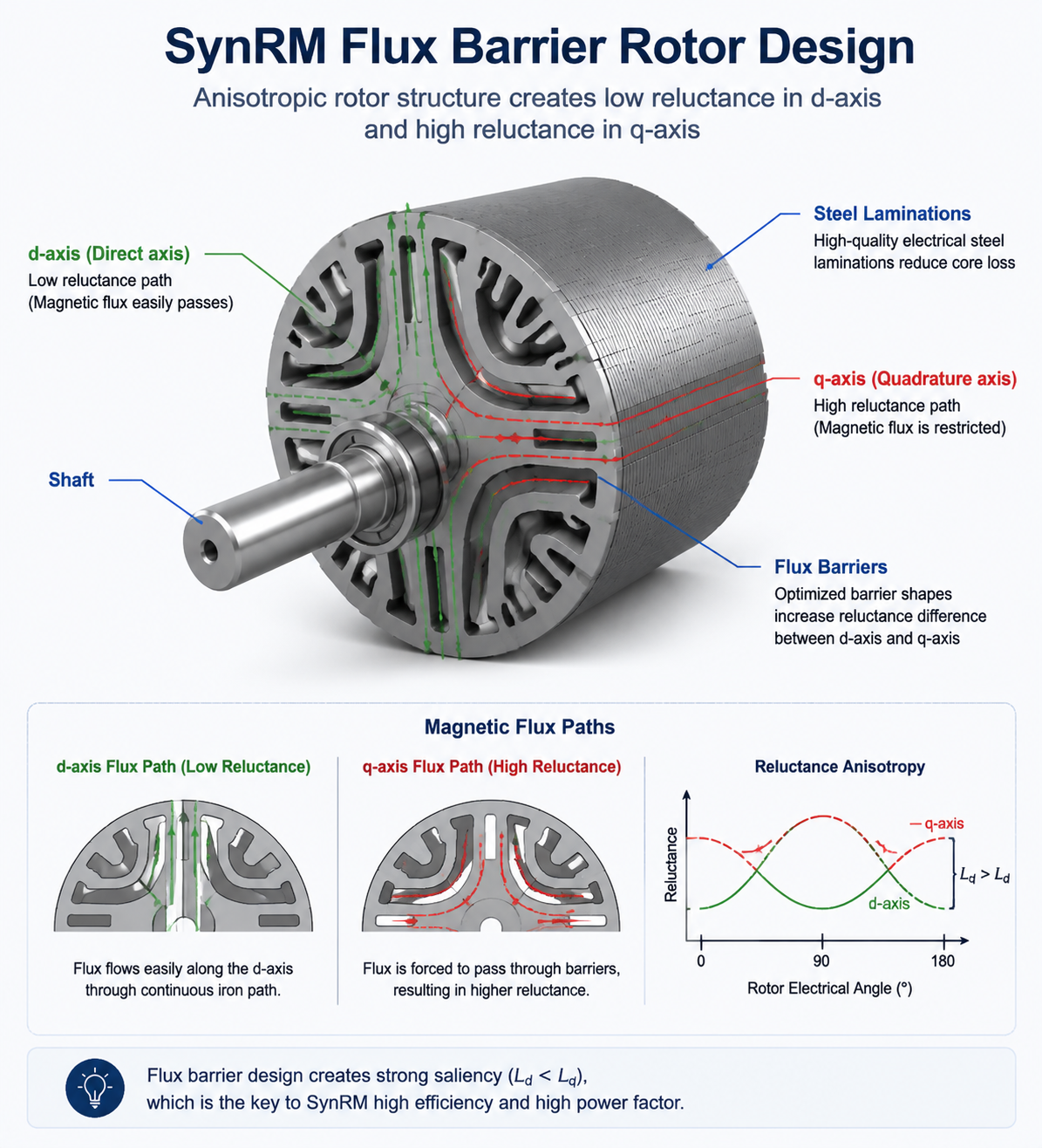

3.1 Flux Barrier Design

Flux barriers are internal air gaps or non-magnetic areas inside the rotor.This advanced rotor structure is a key technology used in Huima Technology's IE5 synchronous reluctance motor solutions.

Their purpose is:

• Guide magnetic flux

• Increase saliency ratio

• Improve torque output

3.2 Why SynRM Does Not Need Magnets

Traditional PMSM motors use permanent magnets to create rotor flux.

SynRM creates rotor magnetic behavior through:

• Rotor geometry

• Magnetic reluctance difference

• Electromagnetic optimization

Advantages:

• No rare-earth materials

• Lower material risk

• Stable supply chain

4. SynRM Electromagnetic Torque Equation

The torque produced by a SynRM is related to the difference between d-axis and q-axis inductance.

The simplified relationship is:

T ∝ (Ld − Lq) × Id × Iq

Where:

• T = electromagnetic torque

• Ld = direct-axis inductance

• Lq = quadrature-axis inductance

• Id/Iq = current components

4.1 Increasing SynRM Torque Capability

Engineers improve SynRM performance by optimizing:

Rotor geometry

Increasing magnetic saliency.

Flux barrier design

Improving magnetic separation.

Electromagnetic control

Optimizing current angle through vector control.

5. SynRM Control System and VFD Operation

SynRM motors normally operate together with variable frequency drives (VFD).

The VFD provides:

• Frequency control

• Speed regulation

• Torque optimization

5.1 Field-Oriented Control (FOC)

Advanced SynRM systems use:

• Vector control

• Maximum torque per ampere (MTPA)

• Parameter optimization

These control methods maximize efficiency and torque output.

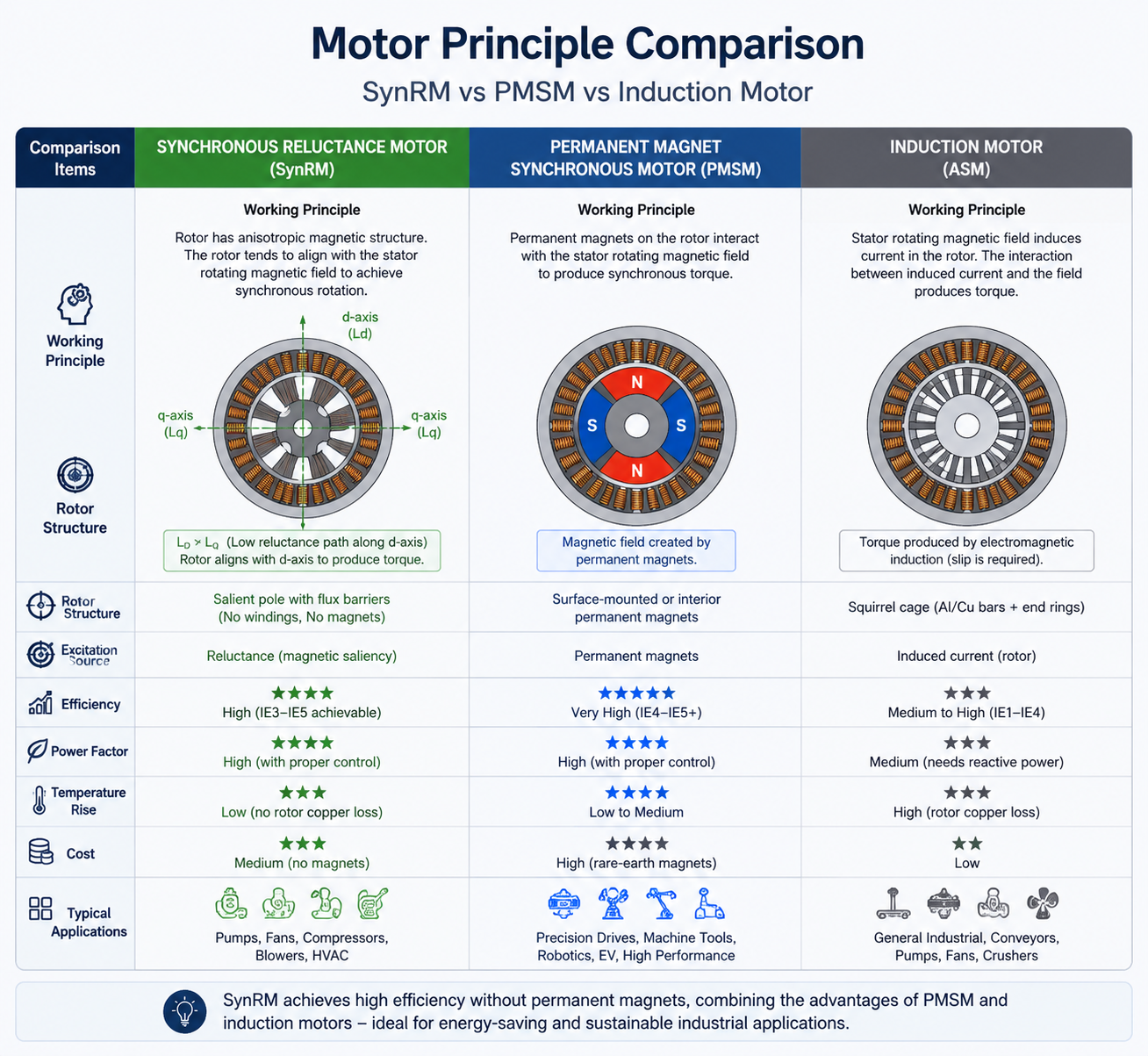

6. SynRM vs Induction Motor: Electromagnetic Difference

7. Industrial Applications Based on SynRM Working Principle

The electromagnetic advantages of SynRM make it suitable for applications requiring:

• Continuous operation

• Variable speed control

• High efficiency

7.1 Pumps

SynRM provides:

• High partial-load efficiency

• Lower electricity consumption

• Long-term energy savings

Internal link:

industrial pump motor solutions

7.2 HVAC Systems

SynRM advantages:

• Excellent variable speed performance

• Reduced operating cost

Internal link:

HVAC energy saving motor systems

7.3 Compressors

Suitable for:

• Industrial air compressors

• Refrigeration systems

Internal link:

high efficiency compressor motor solutions

8. Advantages of SynRM Electromagnetic Design

Key Advantages

1. No Rotor Copper Loss

Because there is no rotor winding:

• Lower heat generation

• Higher efficiency

2. No Rare Earth Dependency

No permanent magnets means:

• Stable material cost

• Better sustainability

3. High Reliability

Simple rotor structure provides:

• Long service life

• Lower maintenance requirements

9. Why SynRM Technology Is Important for Future Industry

Industrial companies are moving toward SynRM because of:

• Higher energy efficiency requirements

• Rising electricity costs

• Carbon reduction targets

• Demand for sustainable motor solutions

SynRM provides an effective pathway from traditional induction motors toward next-generation high-efficiency systems.

10.Conclusion

The working principle of a Synchronous Reluctance Motor is based on a simple but powerful electromagnetic concept: magnetic flux naturally follows the path of minimum reluctance.

Through advanced rotor design, flux barrier optimization, and intelligent motor control technology, SynRM achieves high efficiency without permanent magnets or rotor copper losses.

For industrial applications requiring energy savings, reliability, and long-term operating cost reduction, SynRM has become one of the most promising high-efficiency motor technologies.

11. Frequently Asked Questions (FAQ)

Q1: How does a synchronous reluctance motor produce torque?

A SynRM produces torque through the difference in magnetic reluctance between the rotor d-axis and q-axis. The rotor aligns with the stator rotating magnetic field to create rotation.

Q2: Does a SynRM motor have magnets?

No. SynRM motors do not use permanent magnets. Torque is generated entirely through magnetic reluctance.

Q3: Why is SynRM more efficient than induction motors?

SynRM eliminates rotor copper losses and slip losses, resulting in higher efficiency, especially in variable-speed applications.

Q4: Does SynRM require a VFD?

Yes. A VFD is normally required to control speed, torque, and optimize efficiency.

Q5: What is the difference between SynRM and PMSM?

SynRM generates torque through magnetic reluctance, while PMSM uses permanent magnets. PMSM provides higher torque density, while SynRM offers lower material dependency and high efficiency.

Q6: Where are SynRM motors commonly used?

SynRM motors are widely used in pumps, fans, HVAC systems, compressors, and industrial energy-saving applications.
