Introduction
Selecting the right motor for a gearbox requires more than matching motor power. The motor and gearbox must work together to meet the application's output speed, torque, duty cycle, installation requirements, and operating environment.
For gearbox manufacturers, distributors, and equipment OEMs, correct motor selection helps reduce integration problems, improve drive-system efficiency, and simplify future maintenance and replacement.
The key is to select the motor and gearbox as one integrated drive system. Start with the driven machine's requirements, calculate the required speed and torque, determine the appropriate gear ratio, and then verify motor performance and mechanical compatibility.
This guide explains how to select a suitable motor for an industrial gearbox, which parameters to check before ordering, and how high-efficiency synchronous reluctance motors (SynRM) and permanent magnet synchronous motors (PMSM) may fit different gearbox applications.

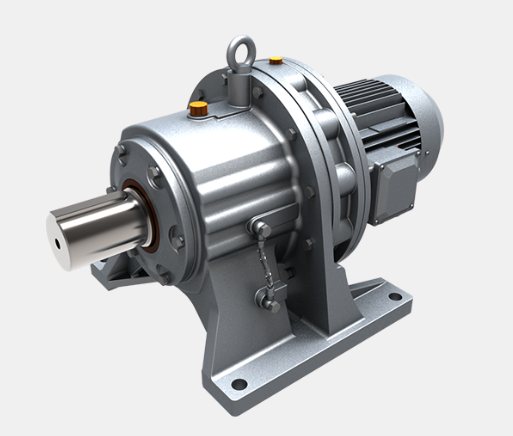

Industrial Motor and Gearbox Integration for Industrial Drive Systems
Quick Answer: What Should You Check When Selecting a Motor for a Gearbox?
Before choosing a motor for a gearbox, verify these essential parameters:
Required gearbox output speed and torque.
Motor rated power, speed, and torque.
Gearbox reduction ratio and transmission efficiency.
Starting torque, acceleration requirements, and load characteristics.
Gearbox input interface, motor frame, shaft, and flange dimensions.
Voltage, frequency, control method, and VFD compatibility.
Operating duty, environmental conditions, and thermal limits.
Motor and gearbox efficiency, maintenance needs, and total cost of ownership.
A motor with the correct rated power may still be unsuitable if it cannot provide the required starting torque, operates outside its permitted speed range, or does not fit the gearbox's mechanical interface.
Table of Contents
The first step is to understand the machine driven by the gearbox. Different applications place different demands on the motor and transmission.
Typical industrial gearbox applications include:
Belt and screw conveyors
Mixers and agitators
Packaging machinery
Material handling systems
Industrial processing equipment
Feeders and dosing equipment
Production-line machinery
The application determines whether the drive operates under a relatively uniform load or experiences frequent starts, reversals, acceleration, or shock loading.
A conveyor running at a stable speed may require relatively steady output torque. A loaded mixer or feeder may need substantially more torque during startup than during normal operation.
Before selecting the motor, identify:
Continuous operating torque
Starting or breakaway torque
Acceleration torque
Peak torque and its duration
Starts and stops per hour
Operating hours per day
Whether the machine reverses direction
These requirements affect motor sizing, gearbox selection, thermal performance, and the service factor recommended by the gearbox manufacturer.
The required output speed comes from the driven machine, not simply from the motor's rated speed.
For example, a machine may require an output speed of 50 rpm, while the selected motor operates at approximately 1,500 rpm. The gearbox must reduce the motor speed to the required output speed.
The required reduction ratio can be estimated using:
Gear ratio = Motor speed ÷ Required gearbox output speed
The final ratio should be selected from the gearbox manufacturer's available ratios. Always check the actual output speed using the selected motor's operating speed and the exact gearbox ratio.
Power, torque, and speed are closely related. They should be evaluated together rather than used independently.
If the required output torque and speed are known, the mechanical power required at the gearbox output can be estimated using:
P (kW) = T (N·m) × n (rpm) ÷ 9550
Where:
P = mechanical power in kilowatts
T = torque at the specified shaft, in newton-metres
n = rotational speed at the same shaft, in revolutions per minute
If calculating the motor power needed to deliver a specified gearbox output, gearbox losses must also be considered.
A preliminary estimate is:
Required motor power (kW) = T_out × n_out ÷ (9550 × η_g)
Where:
T_out = required gearbox output torque, in N·m
n_out = required gearbox output speed, in rpm
η_g = gearbox efficiency expressed as a decimal
This is a preliminary power calculation. The final motor and gearbox selection must also account for load dynamics, starting requirements, thermal limits, and the manufacturer's rating criteria.
Assume an industrial machine requires:
Parameter | Example value |
|---|---|
Required output torque | 300 N·m |
Required output speed | 50 rpm |
Assumed gearbox efficiency | 94% |
Operating condition | Continuous operation |
First, calculate the mechanical output power:
P_out = 300 × 50 ÷ 9550 ≈ 1.57 kW
Then account for gearbox losses:
P_motor ≈ 1.57 ÷ 0.94 ≈ 1.67 kW
This result is a theoretical starting point, not a final motor recommendation. The engineer must check available motor ratings, the actual gearbox efficiency at the operating point, startup and acceleration demands, and the applicable gearbox service factor before approving a motor.
The basic reduction-ratio formula is:
i = n_motor ÷ n_out
For example, assume:
Motor operating speed: 1,500 rpm
Required output speed: 50 rpm
Then:
i = 1,500 ÷ 50 = 30
The theoretical reduction ratio is 30:1.
A gearbox with a nominal ratio of 30:1 would provide approximately 50 rpm output when the motor runs at 1,500 rpm. The actual operating speed may differ if the motor speed differs from the assumed value.
For a preliminary estimate, gearbox output torque can be calculated as:
T_out ≈ T_motor × i × η_g
Where:
T_out = gearbox output torque
T_motor = motor shaft torque
i = gearbox reduction ratio
η_g = gearbox efficiency
For a 3 kW motor running at 1,500 rpm:
T_motor = 9550 × 3 ÷ 1500 ≈ 19.1 N·m
Assuming a 30:1 reduction ratio and a gearbox efficiency of 94%:
T_out ≈ 19.1 × 30 × 0.94 ≈ 539 N·m
This is an illustrative theoretical estimate. It does not mean that the gearbox can safely transmit 539 N·m. The selected gearbox must be rated for the actual continuous and peak torque, input speed, duty, and application loads.
For a more detailed explanation of motor torque calculations, see the related article on how to calculate motor torque from power and speed. If that article has not yet been published, create it first or update the link after publication.
Even when power and speed are suitable, the motor must physically fit the gearbox.

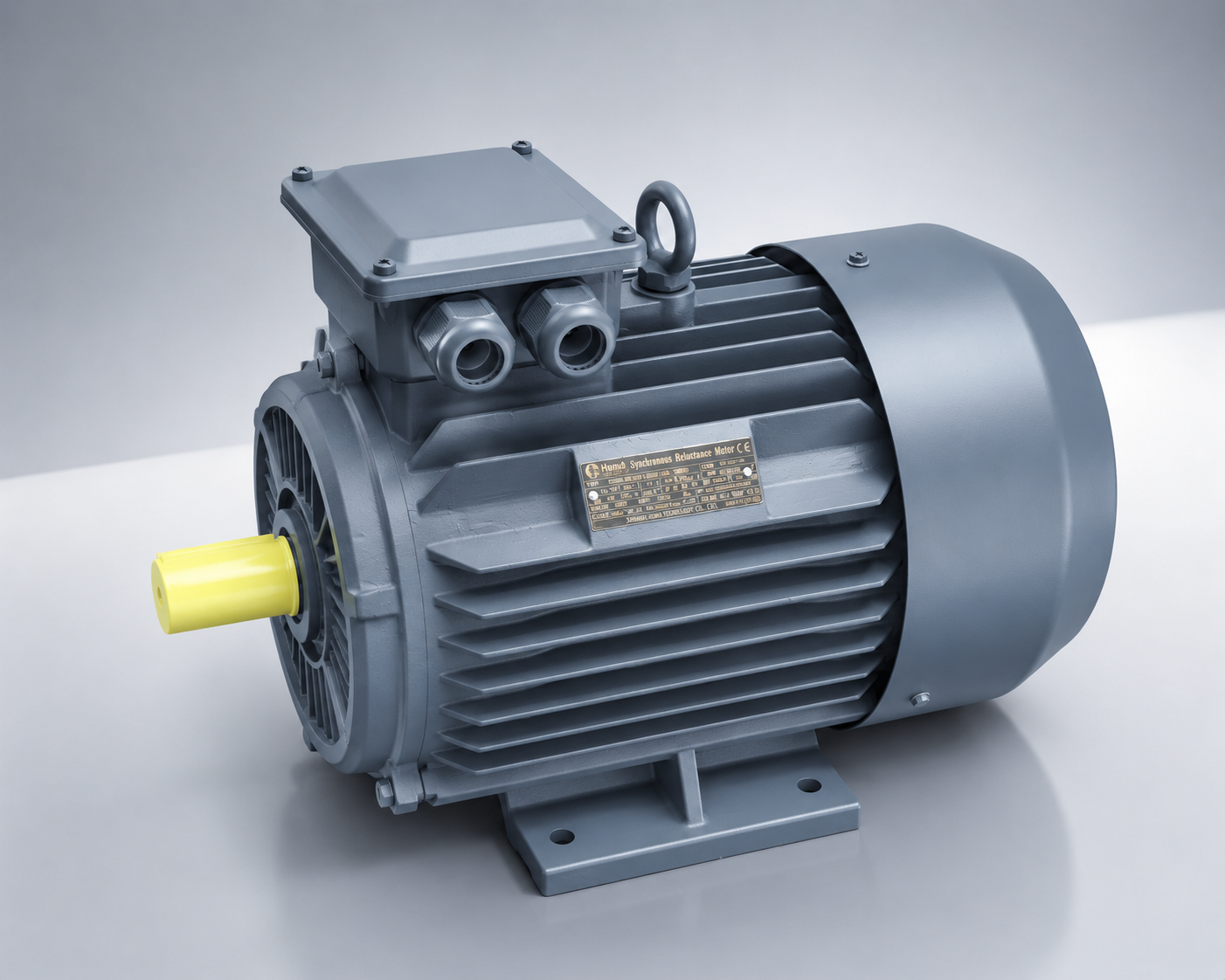

Motor Flange and Shaft Dimensions for Gearbox Compatibility
Check the exact motor frame size and mounting arrangement specified by the gearbox manufacturer.
Common IEC motor mounting arrangements include:
B3: Foot-mounted
B5: Flange-mounted
B35: Foot-and-flange-mounted
The correct arrangement depends on the gearbox design and how the motor is connected.
Before ordering, compare the motor drawing with the gearbox input interface.
Important dimensions and features may include:
Motor frame size
Flange diameter
Spigot or locating diameter
Bolt-hole pattern and pitch-circle diameter
Shaft diameter and extension length
Shaft key and keyway dimensions
Input coupling or adapter design
Available installation space
Do not assume that two motors are interchangeable simply because they have the same power rating or frame designation. The gearbox manufacturer's interface requirements and the approved dimensional drawings must match.
The gearbox configuration also affects the complete drive arrangement.
Gearbox type | Typical selection consideration |
|---|---|
Helical gearbox | Parallel-shaft or inline arrangements and efficient industrial power transmission |
Bevel-helical gearbox | Right-angle power transmission and layout constraints |
Worm gearbox | Right-angle reduction; efficiency and heat generation require attention |
Planetary gearbox | Compact installation and high torque density, subject to application-specific ratings |
These are general descriptions, not universal performance rankings. The correct gearbox depends on required torque, speed, space, precision, duty, efficiency, and the manufacturer's technical data.
Once the load requirements and mechanical interface are understood, select the motor technology that best fits the application.
Huima High-Efficiency Synchronous Reluctance Motor for Industrial Applications
Three-phase induction motors are widely used in industrial drive systems. They may be suitable where established supply chains, familiar controls, and standard motor interfaces are priorities.
When selecting an induction motor, verify its efficiency class, rated speed, starting performance, and suitability for the intended operating cycle.
Synchronous reluctance motors can be considered for gearbox systems where high motor-system efficiency and industrial operating performance are priorities.
Huima supplies synchronous reluctance motor systems for industrial transmission applications, including motors intended for gearbox use.
Huima's SynRM product range uses a ferrite-assisted rotor design. Motor and drive compatibility must be checked for the specific application, including the required controller, speed range, torque characteristics, mounting interface, and operating duty.
Potential evaluation points include:
Motor-system efficiency at the actual working point
Required power and speed
Compatibility with the gearbox input interface
Control system and VFD requirements
Operating temperature and duty cycle
Purchase cost and expected energy consumption
Learn more about Huima's synchronous reluctance motor for gearbox applications.
Permanent magnet synchronous motors (PMSMs) may be appropriate when the application benefits from their torque characteristics, efficiency, or compact motor design.
However, a PMSM must be selected according to its rated operating conditions and compatible drive system. A gearbox cannot compensate for a motor that lacks the required torque, speed range, or thermal capacity.
When evaluating PMSM solutions, check:
Rated and peak torque requirements
Operating speed and frequency range
Drive and control compatibility
Mechanical dimensions and coupling requirements
Cooling and thermal limits
Total system cost
Do not compare motor technologies using efficiency class alone. Compare the motor and gearbox system at the actual operating point, and ensure that each proposed configuration meets the machine's load requirements.
The motor must match the available power supply and control method.
Confirm the required:
Rated voltage
Supply frequency, such as 50 Hz or 60 Hz
Number of phases
Rated current
Motor speed
Connection arrangement
Voltage and frequency influence motor performance and operating limits. Do not assume a motor designed for one supply specification can deliver the same output under another specification without checking the manufacturer's data.
A variable-frequency drive (VFD) may be required when the machine needs adjustable output speed, controlled acceleration, or a particular starting profile.
For a VFD-controlled gearbox motor, check:
Whether the motor is compatible with the selected drive.
Whether the required speed range is permitted.
Whether sufficient torque is available during startup and low-speed operation.
Whether additional cooling is needed at low speeds.
Whether the gearbox's lubrication and thermal limits permit the intended speed range.
Whether the drive has the correct control mode and motor parameters.
For synchronous reluctance and permanent magnet synchronous motors, drive compatibility is particularly important. Confirm the complete motor-drive combination with the supplier rather than assuming a standard induction-motor control mode will work.
A gearbox motor must be suitable for the actual working cycle, not just the nominal power rating.
Record how the machine operates:
Continuous operation or intermittent operation
Hours of operation per day
Starts and stops per hour
Reversals per hour
Acceleration time
Peak-load duration
Frequency of overload events
Frequent starting, high inertia, and shock loading can increase thermal and mechanical demands. These factors should be considered when selecting both the motor and gearbox.
The gearbox manufacturer may specify a service factor based on the application, daily operating time, and load characteristics.
The service factor should be selected using the manufacturer's methodology. It should not be treated as a universal multiplier that can be applied to motor power without further analysis.
Also verify the gearbox's rated output torque, permitted input speed, thermal capacity, and limits on radial and axial loads.
The operating environment may determine the required enclosure, protection, insulation, cooling, and corrosion resistance.
Check:
Ambient temperature
Indoor or outdoor installation
Dust and water exposure
Corrosive atmosphere
Required IP protection rating
Cooling method
Altitude, where relevant
Hazardous-area requirements, if applicable
The motor's protection rating alone does not establish whether the gearbox seals, lubricant, coating, and complete drive assembly are suitable for the environment.
The lowest purchase price is not always the lowest-cost option over the equipment's service life.
When comparing motor options, consider:
Motor efficiency at the expected load
Gearbox efficiency at the selected ratio and operating point
Annual operating hours
Load profile and speed-control strategy
Electricity price
Initial purchase and integration costs
Maintenance requirements
Expected service life
A high-efficiency motor can reduce motor losses, but the total system benefit depends on the complete drive and how it operates.
A simplified annual energy-cost comparison is:
Annual energy cost = Average electrical input power (kW) × Annual operating hours × Electricity price per kWh
For a meaningful comparison, use measured or technically justified input power under comparable operating conditions. Do not compare nameplate output power directly with electrical input power, and do not assume the gearbox efficiency remains constant across all loads and speeds.
Huima's high-efficiency motor solutions can be evaluated for suitable gearbox applications by comparing the existing drive system with the proposed motor and control configuration.
Before confirming an order, prepare a technical specification containing the following information.
Parameter | Information to confirm |
|---|---|
Application | Conveyor, mixer, feeder, packaging machine, or other equipment |
Required output speed | rpm |
Required output torque | Continuous and peak torque in N·m |
Motor power | kW or HP |
Motor speed | Rated rpm and required operating range |
Gear ratio | Required and available ratio |
Gearbox type | Helical, bevel-helical, worm, planetary, or other |
Motor mounting | B3, B5, B35, or specified interface |
Mechanical interface | Frame, flange, shaft, adapter, and drawing |
Electrical supply | Voltage, frequency, and phase |
Control method | Direct supply or VFD-controlled operation |
Duty | Operating hours, starts, stops, reversals, and load cycle |
Environment | Temperature, dust, water, corrosion, and IP requirements |
Options | Brake, encoder, temperature sensors, or other requirements |
Quantity | Prototype, sample order, or batch production |
For repeat OEM orders, approve the motor drawing and technical specification before mass production. Any later change to motor speed, shaft dimensions, flange, voltage, or drive system should be reviewed for compatibility.
Jiangsu Huima Technology Co., Ltd. provides industrial synchronous reluctance motor systems and permanent magnet synchronous motors for industrial applications.

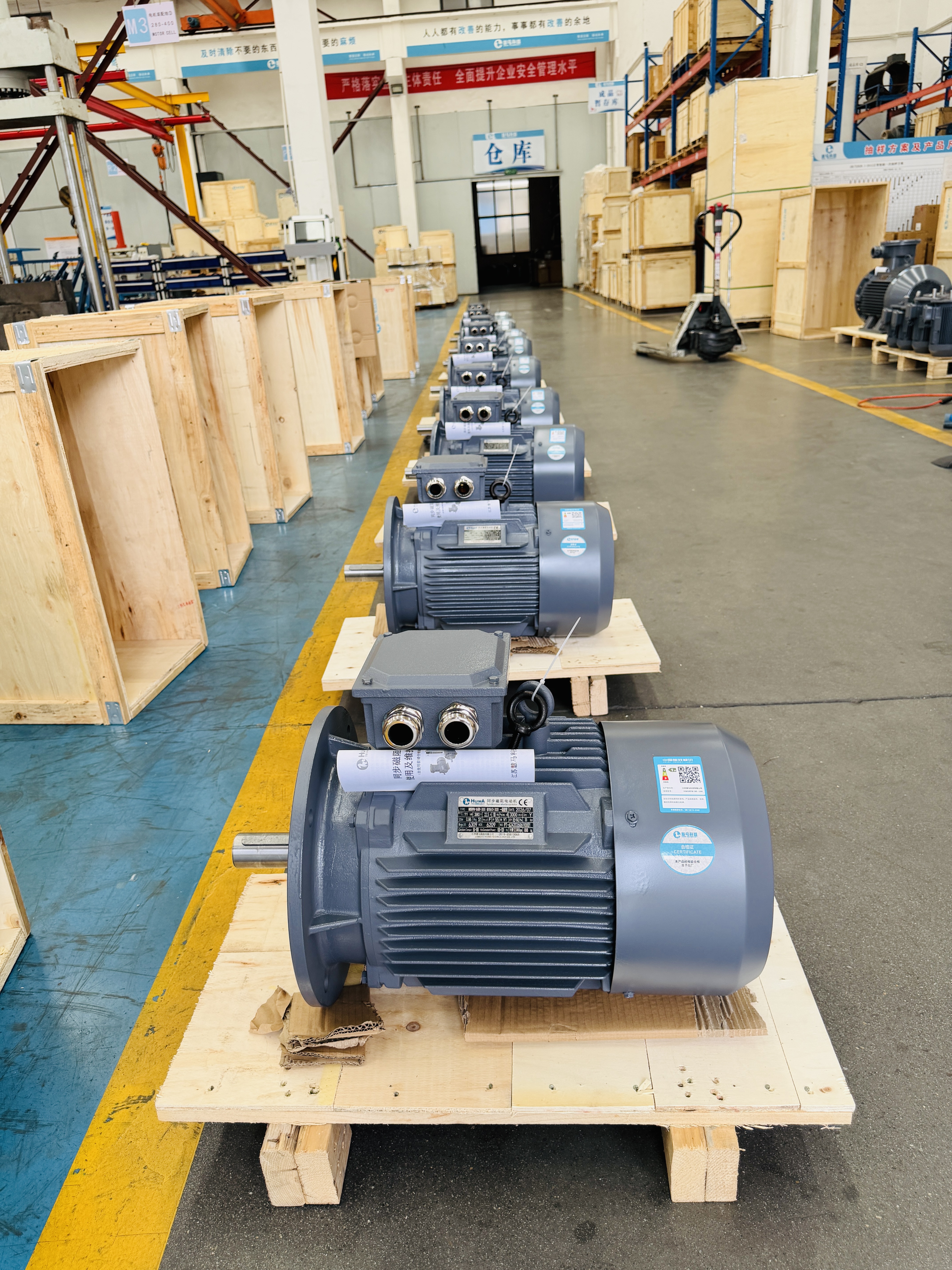

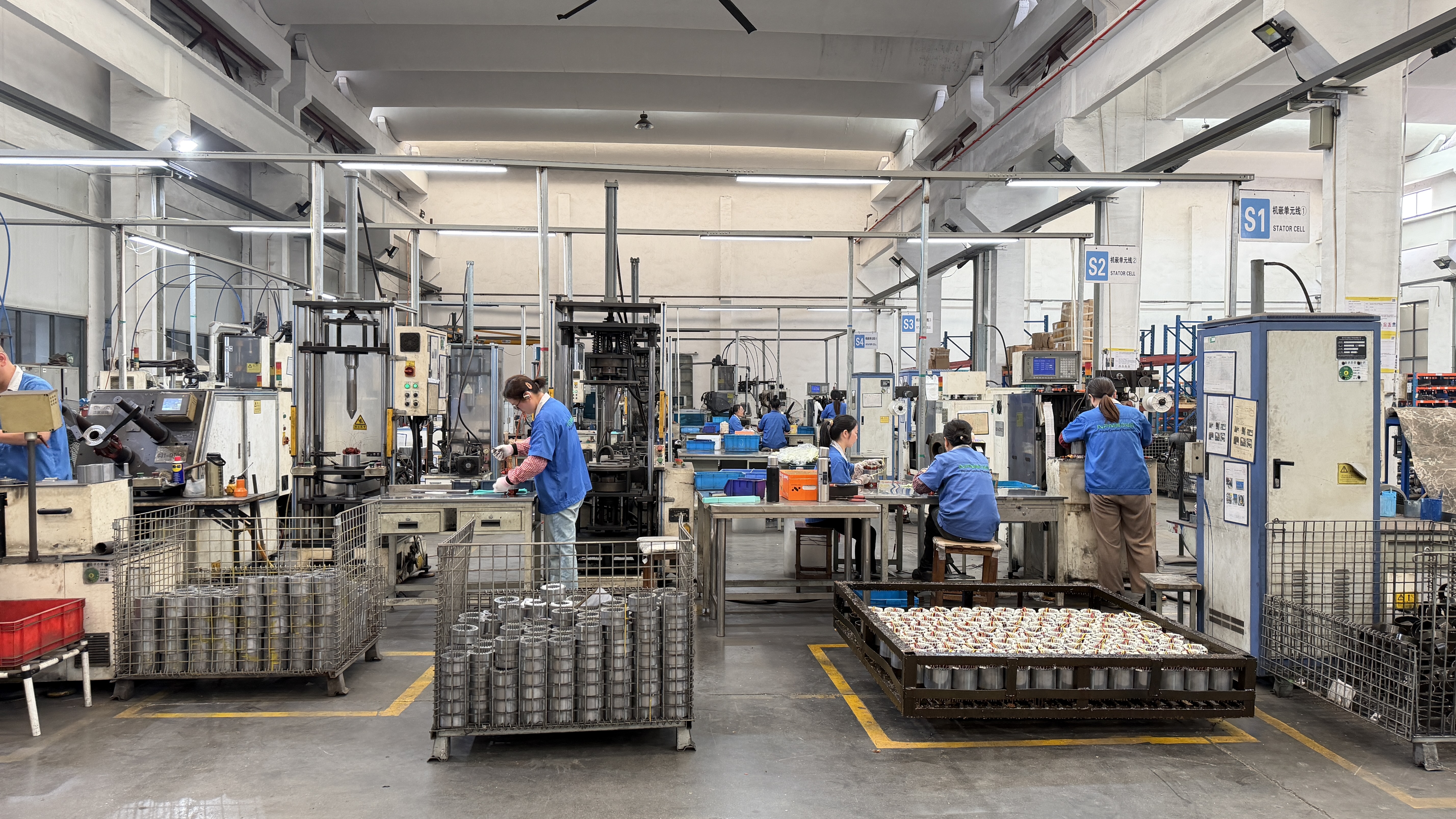

Huima Motor Manufacturing and OEM Support for Industrial Drive Projects
For gearbox manufacturers and distributors, the motor selection process should begin with the actual application requirements and the gearbox's mechanical interface.
Huima can discuss project requirements such as:
Motor power and rated speed
Required gearbox input interface
Mounting and dimensional requirements
Voltage and frequency
VFD and control compatibility
Efficiency targets
OEM customization requirements
For a new gearbox project, provide the gearbox model or dimensional drawing together with the required motor specifications. For a replacement project, share the existing motor nameplate and the gearbox input-interface details.
These documents help the engineering team evaluate whether the proposed motor is suitable and identify any missing information before confirming a configuration.
Explore Huima's motor product range or contact the team through the Huima contact page.
Start with the driven machine's required output speed and torque. Calculate the approximate gear ratio and motor power, then verify starting torque, duty cycle, motor speed, gearbox ratings, mechanical dimensions, electrical supply, and operating environment.
Divide the motor's operating speed by the required gearbox output speed.
Gear ratio = Motor speed ÷ Required output speed
For example, a motor operating at 1,500 rpm and a required output speed of 50 rpm give a theoretical ratio of 30:1. Confirm the actual operating speed using the selected motor and gearbox specifications.
A higher reduction ratio generally increases theoretical output torque while reducing output speed, but actual output torque is affected by gearbox efficiency and its rated capacity. The selected gearbox must remain within its permitted torque, speed, thermal, and load limits.
A synchronous reluctance motor can be used in suitable gearbox applications when its power, speed, torque, drive system, mounting interface, and duty requirements match the application. Huima offers SynRM motor systems for gearbox applications. Confirm the specific configuration with the supplier before ordering.
Potentially, yes. The PMSM must match the required mechanical interface and deliver the required torque and speed. Its control system must also be compatible with the motor. Check flange and shaft dimensions, rated and peak torque, speed range, cooling, and gearbox limits before approving the replacement.
Provide the application, motor power, rated speed, voltage, frequency, required output speed and torque, gearbox ratio and model, mounting arrangement, interface drawing, duty cycle, operating environment, quantity, and any VFD or customization requirements. An existing nameplate and dimensional drawing are particularly helpful for replacement projects.
No. Motor power is only one selection parameter. Speed, torque, reduction ratio, service factor, duty cycle, mounting dimensions, input speed limits, and gearbox thermal capacity must also be checked.
Selecting the right motor for a gearbox is a system-level engineering decision. The correct solution must meet the driven machine's output speed and torque requirements while remaining compatible with the gearbox's mechanical interface, operating duty, electrical supply, and environmental conditions.
For gearbox manufacturers, distributors, and OEMs, a repeatable selection process helps reduce specification errors and supports more reliable product integration.
High-efficiency motor technologies, including SynRM and PMSM, may offer advantages in suitable applications, but the final decision should be based on the complete motor-gearbox system and its real operating conditions.
Need a motor for your gearbox project? Share your gearbox model, interface drawing, required power and speed, electrical specifications, and order quantity with Huima Technology. Our team can review the application requirements and discuss a suitable industrial motor configuration.
