Industrial Motor Selection Guide How To Choose The Right High Efficiency Motor for Your Application

Introduction: Why Choosing the Right Industrial Motor Matters

Industrial motors are the driving force behind thousands of machines and production systems worldwide.

They are widely used in:

• Pumps

• Fans

• Compressors

• Conveyors

• Mixers

• HVAC systems

• Industrial automation equipment

However, selecting the correct motor is not simply about choosing the required power rating.

A proper motor selection must consider:

• Application requirements

• Load characteristics

• Operating hours

• Efficiency requirements

• Speed control method

• Installation environment

With global industries moving toward energy efficiency and carbon reduction, high-efficiency motor technologies such as:

• Synchronous Reluctance Motors (SynRM)

• Permanent Magnet Synchronous Motors (PMSM)

are becoming increasingly important alternatives to traditional induction motors.

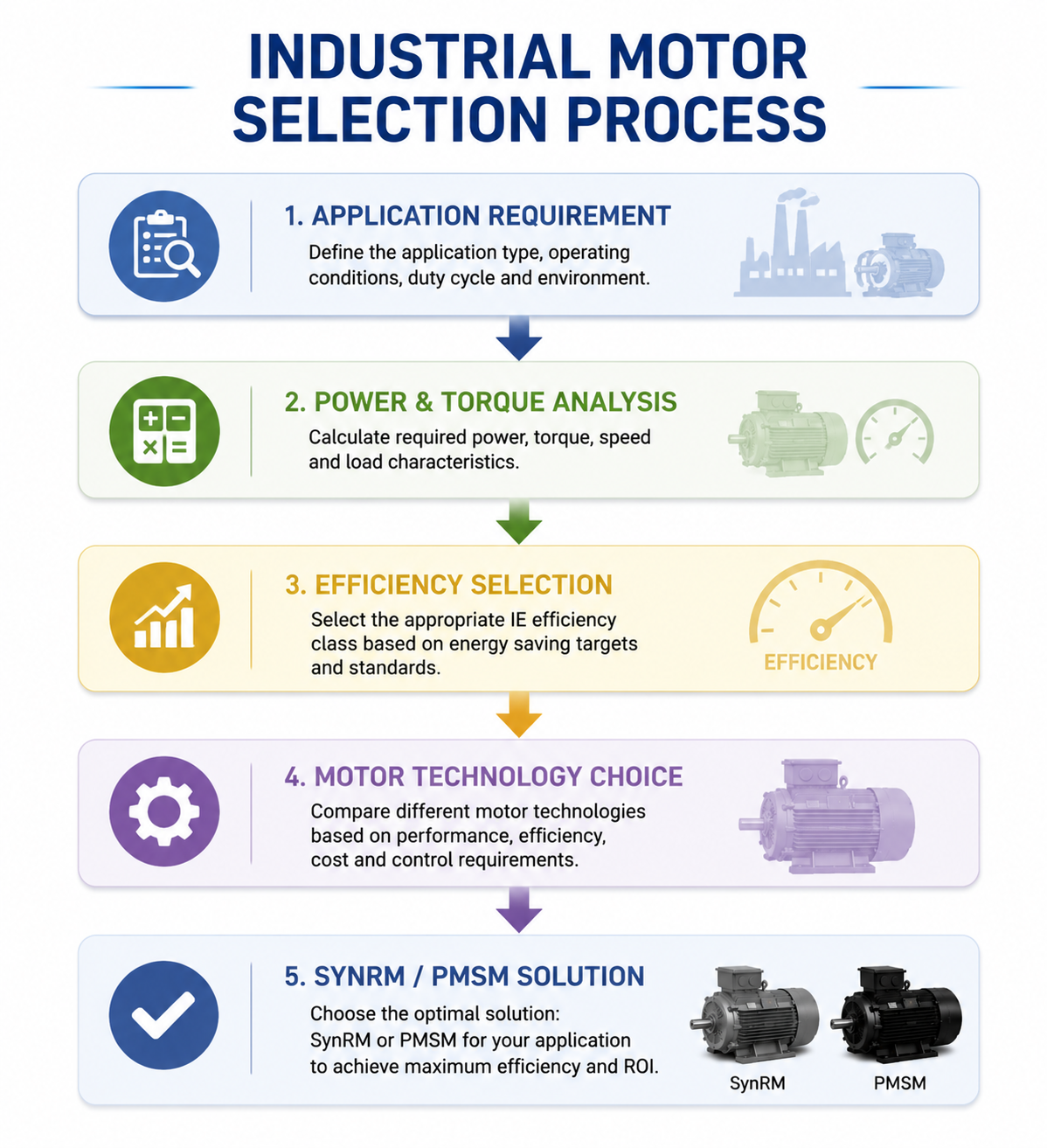

1. What Factors Should Be Considered When Selecting an Industrial Motor?

Selecting the correct motor requires understanding several key parameters.

1.1 Motor Power Requirement

Motor power is usually determined by:

• Mechanical load

• Required torque

• Operating speed

1.1.1 Avoid Oversized Motors

Oversized motors may cause:

• Higher initial cost

• Lower efficiency during normal operation

• Increased energy consumption

1.1.2 Avoid Undersized Motors

Undersized motors may cause:

• Overheating

• Reduced lifespan

• Insufficient torque

1.2 Torque Requirements

Torque is one of the most important factors in motor selection.

Different applications require different torque characteristics.

1.2.1 Constant Torque Applications

Examples:

• Conveyors

• Mixers

• Compressors

Require:

• Stable torque output

• Reliable operation

1.2.2 Variable Torque Applications

Examples:

• Pumps

• Fans

• HVAC systems

Require:

• Efficient speed adjustment

• Good partial load performance

1.3 Operating Speed

Motor speed depends on:

• Application requirements

• Gearbox ratio

• Control system

1.3.1 Fixed Speed Applications

Traditional motors may operate directly from the grid.

1.3.2 Variable Speed Applications

Applications with changing loads usually require:

• VFD control

• High-efficiency synchronous motors

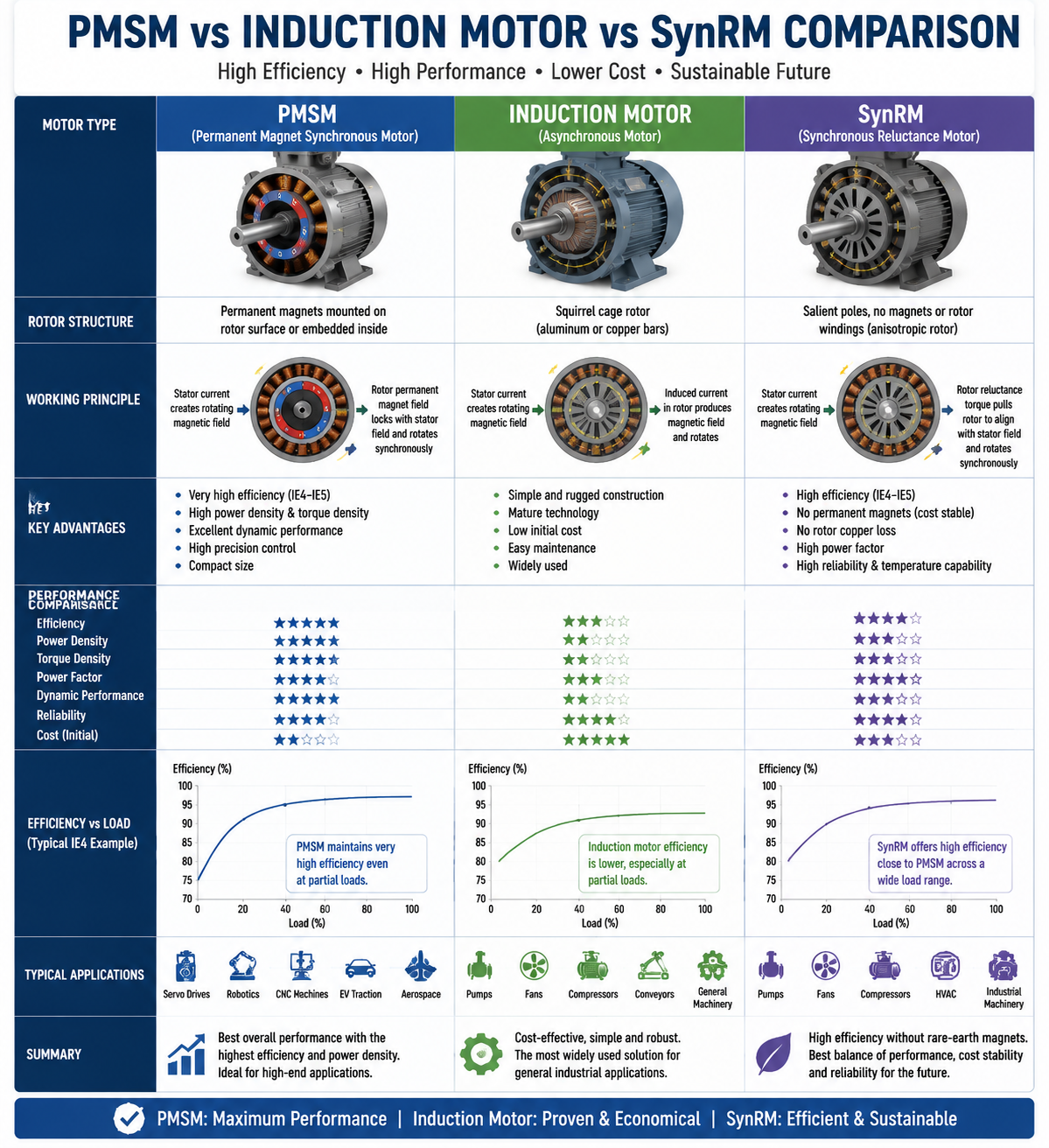

2. How to Choose Between Induction Motor, SynRM, and PMSM?

3. When Should You Choose a SynRM Motor?

A Synchronous Reluctance Motor is an excellent choice when energy efficiency and lifecycle cost are the priority.

3.1 Applications Suitable for SynRM

3.1.1 Pumps and Fans

SynRM is ideal because:

• Long operating hours

• Variable load conditions

• High energy-saving potential

3.1.2 Industrial HVAC Systems

Advantages:

• Excellent partial-load efficiency

• Reliable continuous operation

3.1.3 Compressors

Benefits:

• Lower energy consumption

• Stable performance

3.2 Key Advantages of SynRM

3.2.1 No Permanent Magnets

Benefits:

• No rare-earth dependency

• Stable supply chain

• Cost advantages

3.2.2 High Efficiency Operation

SynRM provides:

• Low losses

• Lower temperature rise

• Improved reliability

4. When Should You Choose a PMSM Motor?

A Permanent Magnet Synchronous Motor is preferred when performance density and compact design are important.

4.1 Applications Suitable for PMSM

4.1.1 Compact Industrial Equipment

Suitable for:

• Limited installation space

• High output requirements

4.1.2 Precision Speed Control Applications

Examples:

• Automation equipment

• Advanced machinery

4.1.3 High Performance Compressors

Benefits:

• High torque density

• Excellent dynamic response

4.2 Key Advantages of PMSM

4.2.1 High Power Density

Permanent magnets provide:

• Strong magnetic field

• Smaller motor size

4.2.2 Excellent Variable Speed Performance

With VFD:

• Accurate control

• High efficiency

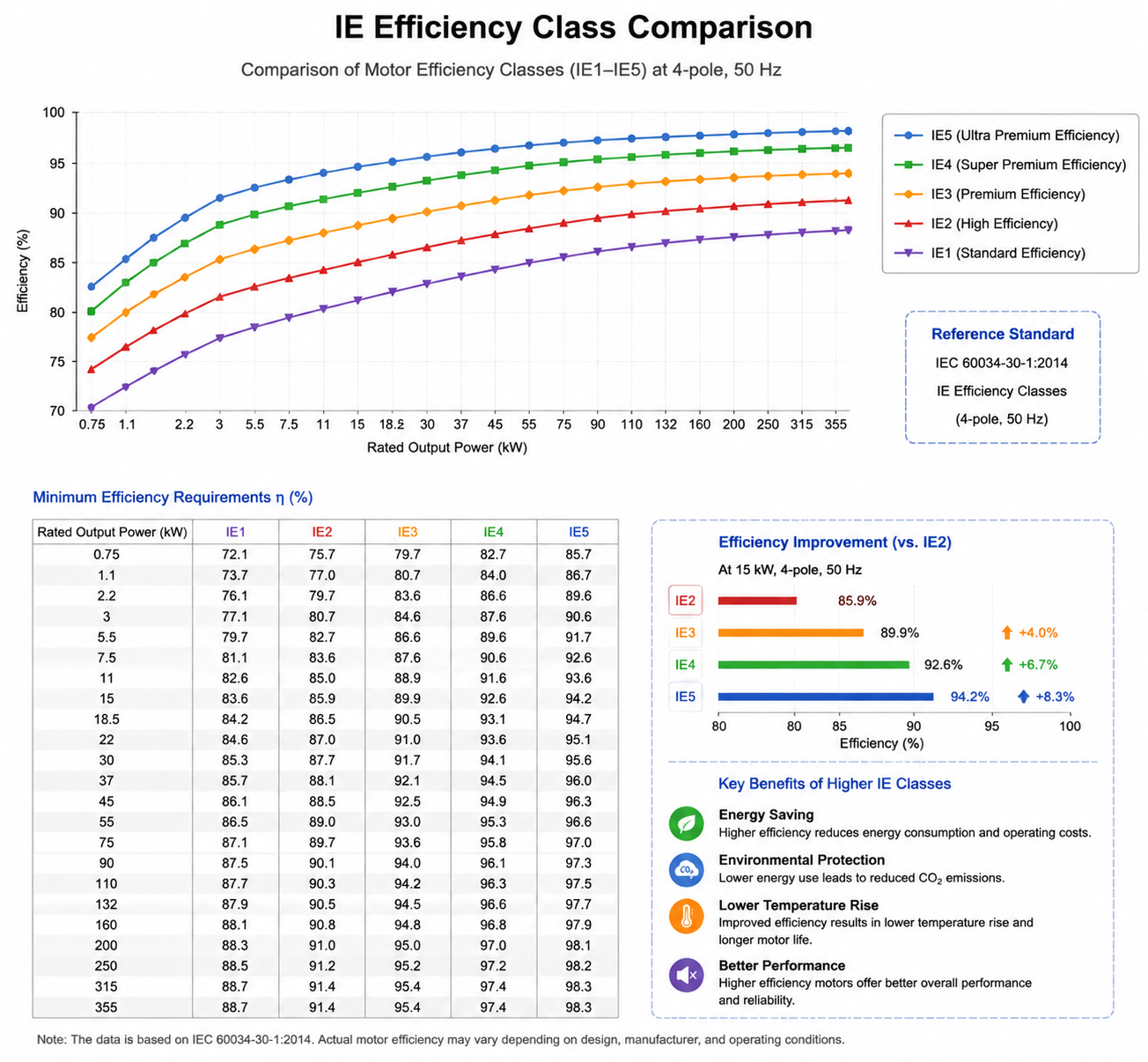

5. How to Select Motor Efficiency Class: IE3 vs IE4 vs IE5?

Motor efficiency class directly affects lifetime operating cost.

5.1 IE3 Motors

5.1.1 Suitable Applications

• Standard industrial equipment

• Moderate operating hours

5.2 IE4 Motors

5.2.1 Recommended For

• Continuous operation

• Energy-saving projects

5.3 IE5 Motors

5.3.1 Future-Oriented Industrial Solutions

Advantages:

• Maximum efficiency

• Lower energy consumption

• Reduced carbon emissions

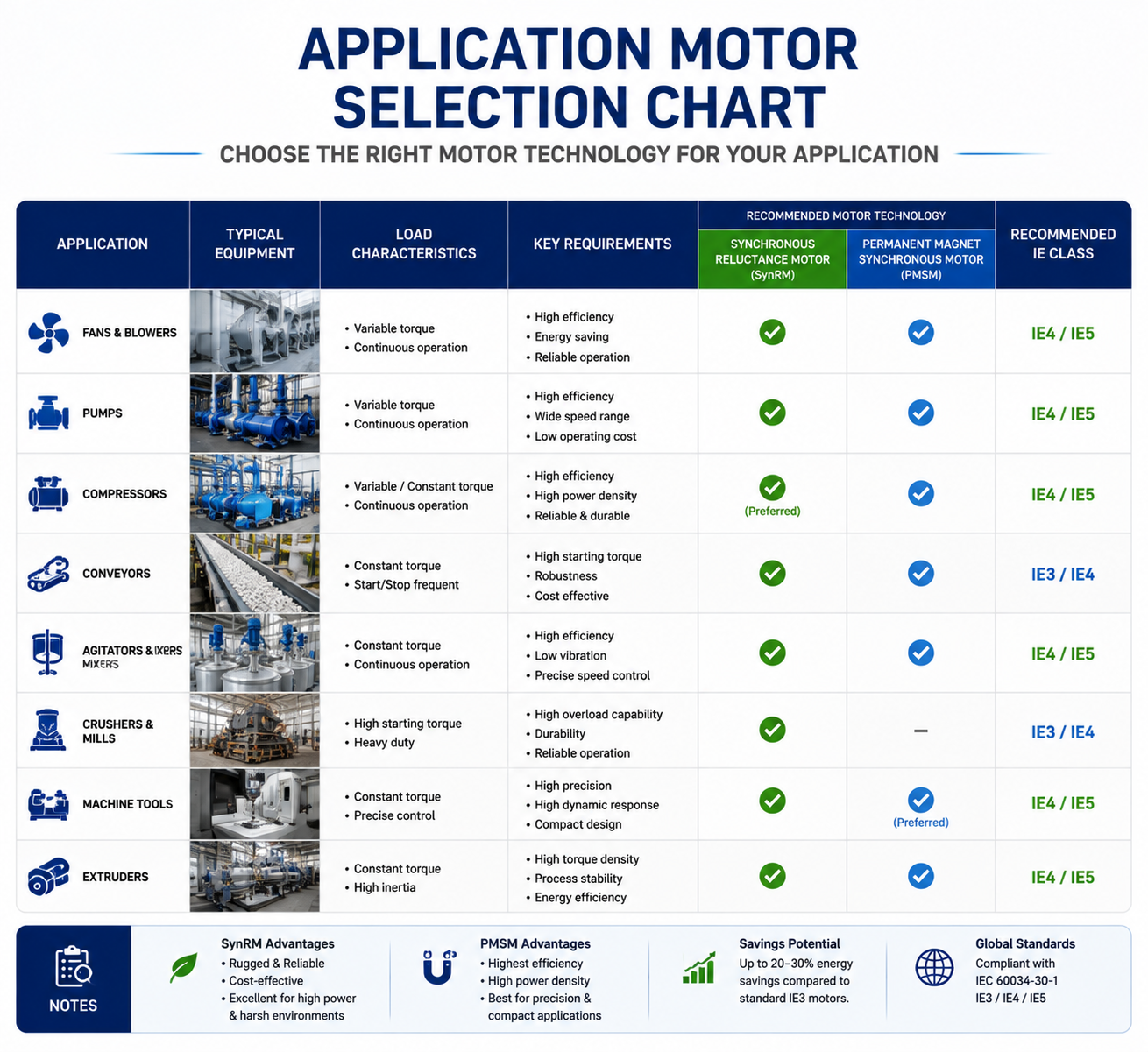

6. Motor Selection Based on Industrial Applications

6.1 Pump Applications

Recommended Solution:

SynRM / PMSM

Selection:

• Long running time → SynRM

• Compact system → PMSM

6.2 Fan and HVAC Applications

Recommended Solution:

SynRM

Reason:

• Excellent partial-load efficiency

• Continuous operation

6.3 Compressor Applications

Recommended Solution:

SynRM / PMSM

Selection:

• Industrial compressor → SynRM

• High-performance compressor → PMSM

6.4 Conveyor Applications

Recommended Solution:

SynRM

Reason:

• Constant torque requirement

• Reliable operation

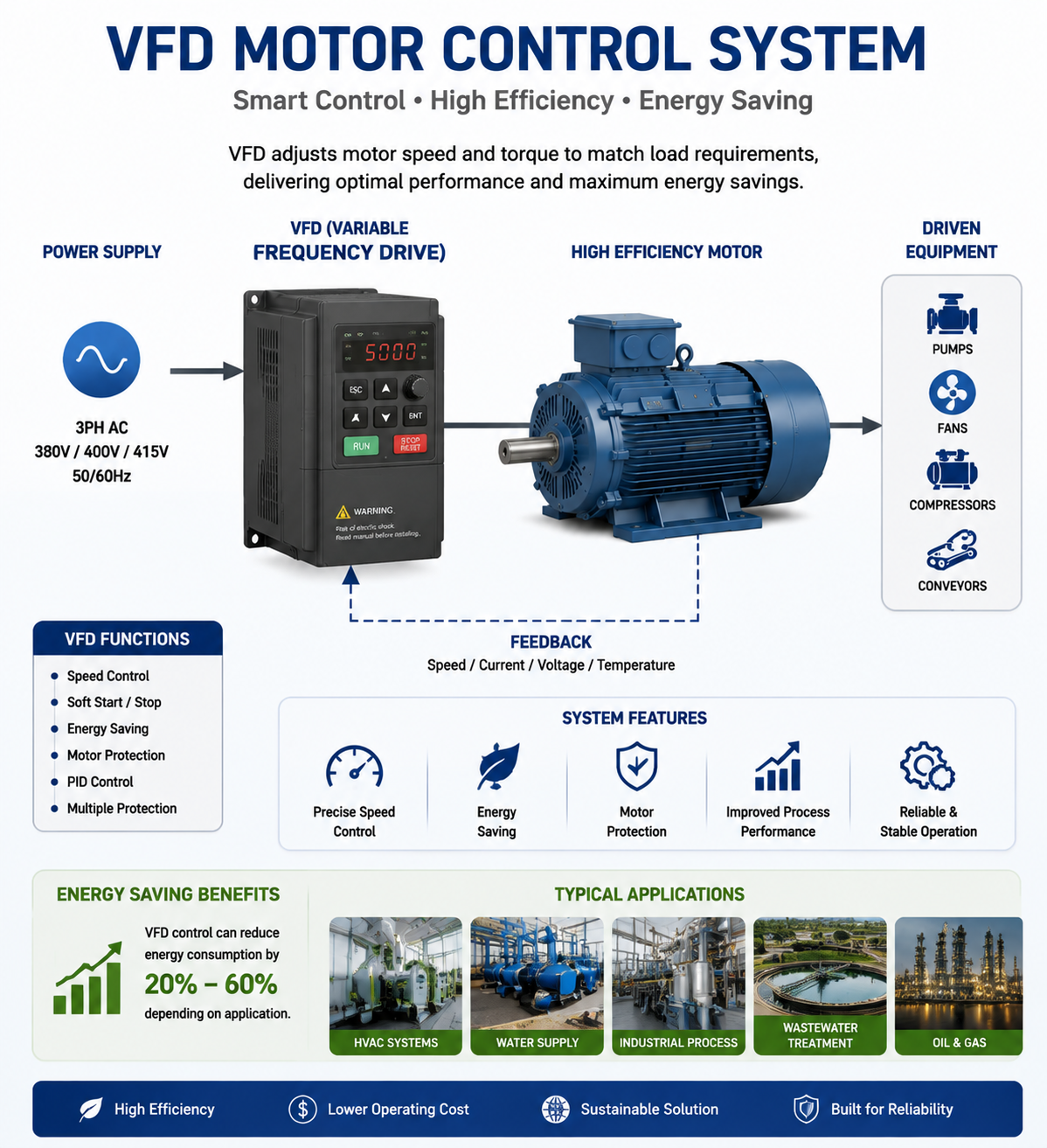

7. Importance of VFD Compatibility in Motor Selection

Modern industrial motors often work with VFD systems.

7.1 Benefits of VFD + High Efficiency Motor

7.1.1 Energy Optimization

Adjust:

• Speed

• Torque

• Output power

7.1.2 Improved System Control

Provides:

• Stable operation

• Reduced mechanical stress

8. How Huima Technology Helps Customers Select the Right Motor

Huima Technology provides customized:

• SynRM motors

• PMSM motors

• IE3-IE5 high efficiency solutions

8.1 Engineering Support

Customized Motor Matching

Support:

• Power selection

• Torque calculation

• Dimension matching

• VFD compatibility

8.2 OEM Manufacturing Capability

Flexible Customization

Options:

• Voltage

• Mounting

• Cooling

• Shaft design

9. Conclusion

Selecting the right industrial motor requires balancing:

• Efficiency

• Performance

• Cost

• Application requirements

SynRM and PMSM technologies provide advanced solutions for modern industrial systems.

SynRM is ideal for:

• Energy saving

• Long operating hours

• Lifecycle cost optimization

PMSM is ideal for:

• High torque density

• Compact design

• Advanced performance

Huima Technology provides customized SynRM and PMSM high efficiency motor solutions to help global industries improve energy efficiency and achieve sustainable operation.

10. Frequently Asked Questions (FAQ)

Q1: How do I choose the right industrial motor?

Consider power, torque, speed, efficiency class, operating conditions, and control requirements before selecting a motor.

Q2: Which is better, SynRM or PMSM?

Both provide high efficiency. SynRM is ideal for energy-saving applications, while PMSM is better for compact and high-performance applications.

Q3: Should I choose IE4 or IE5 motors?

For equipment running many hours per year, IE5 motors usually provide better lifecycle savings.

Q4: Can SynRM replace induction motors?

Yes. SynRM motors can replace many induction motors in industrial applications with improved efficiency.

Q5: Do high efficiency motors require VFD?

Many applications use VFD control to maximize energy savings and improve performance.
