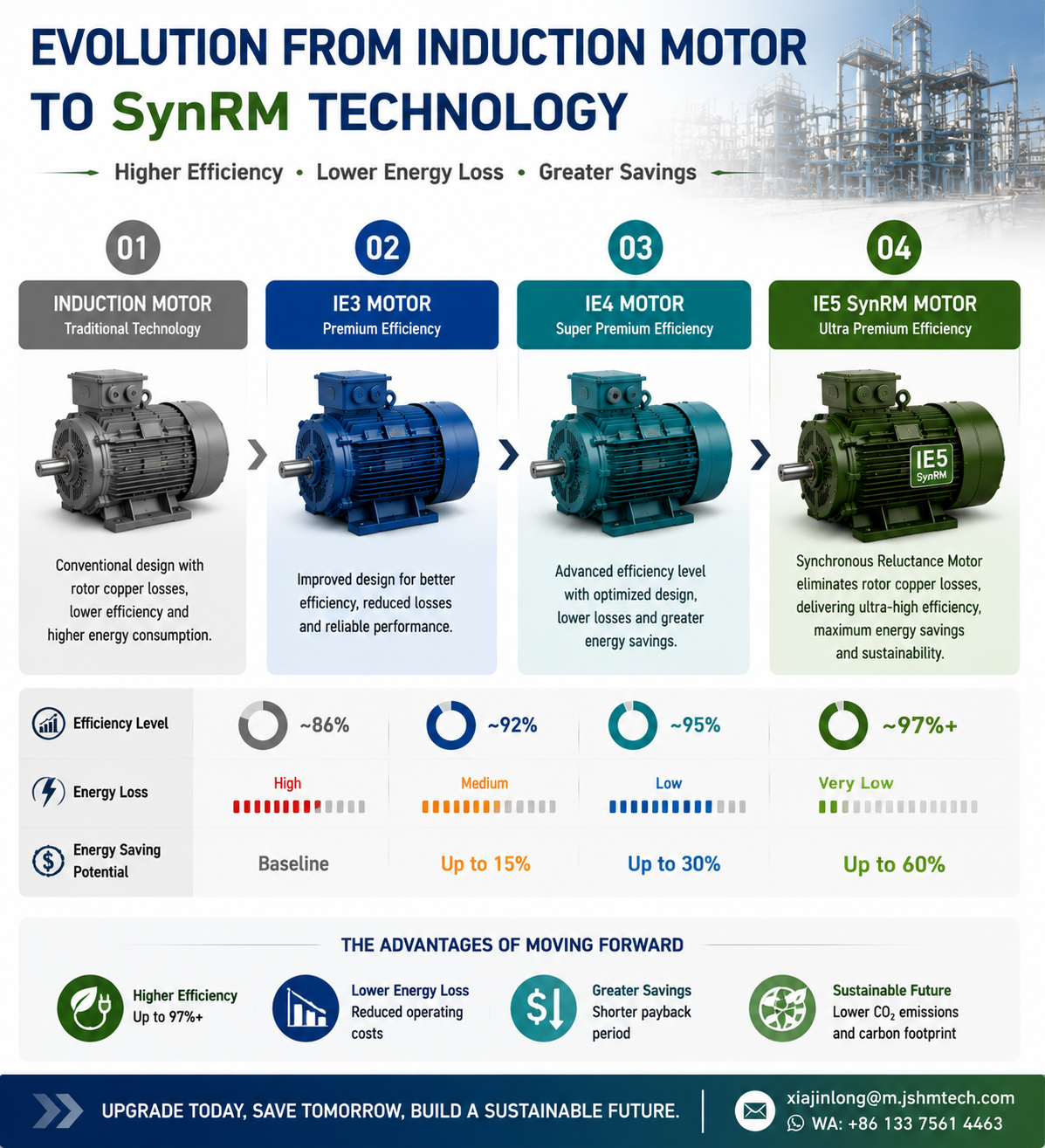

Introduction: The Shift From Induction Motors to Synchronous Reluctance Motors
For more than 100 years, induction motors have been the dominant motor technology in industrial applications.
They are widely used because of:
Simple construction
Reliable operation
Low maintenance requirements
Competitive initial cost
Today, millions of induction motors operate in:
Pumps
Fans
Compressors
HVAC systems
Conveyors
Industrial machinery
However, industrial requirements are changing.
Companies are facing:
Higher electricity costs
More strict energy regulations
Carbon reduction requirements
Demand for higher efficiency equipment
As a result, many industries are upgrading from traditional induction motors to Synchronous Reluctance Motors (SynRM).
Modern SynRM motors provide:
IE4 and IE5 efficiency levels
Reduced energy losses
Excellent variable-speed performance
Long-term operating cost advantages
This article explains the differences between SynRM and induction motors from:
Working principle
Efficiency
Performance
Cost
Application suitability
Table of Contents
An induction motor, also called an asynchronous motor, is the most common industrial motor type.
It works through electromagnetic induction between:
Stator magnetic field
Rotor current
When AC power is supplied:
The stator generates a rotating magnetic field.
The rotating magnetic field induces current in the rotor.
The interaction creates electromagnetic torque.
The rotor must rotate slightly slower than synchronous speed.
This speed difference is called: Slip
A Synchronous Reluctance Motor (SynRM) generates torque using magnetic reluctance differences instead of rotor current.
Unlike induction motors:
SynRM rotor does not require:
Rotor winding
Rotor bars
Permanent magnets
SynRM rotor contains specially designed:
Magnetic flux barriers
High and low reluctance paths
These create reluctance torque.
Unlike induction motors:
SynRM rotor rotates exactly at:
Synchronous speed
Benefits:
No slip losses
Higher efficiency

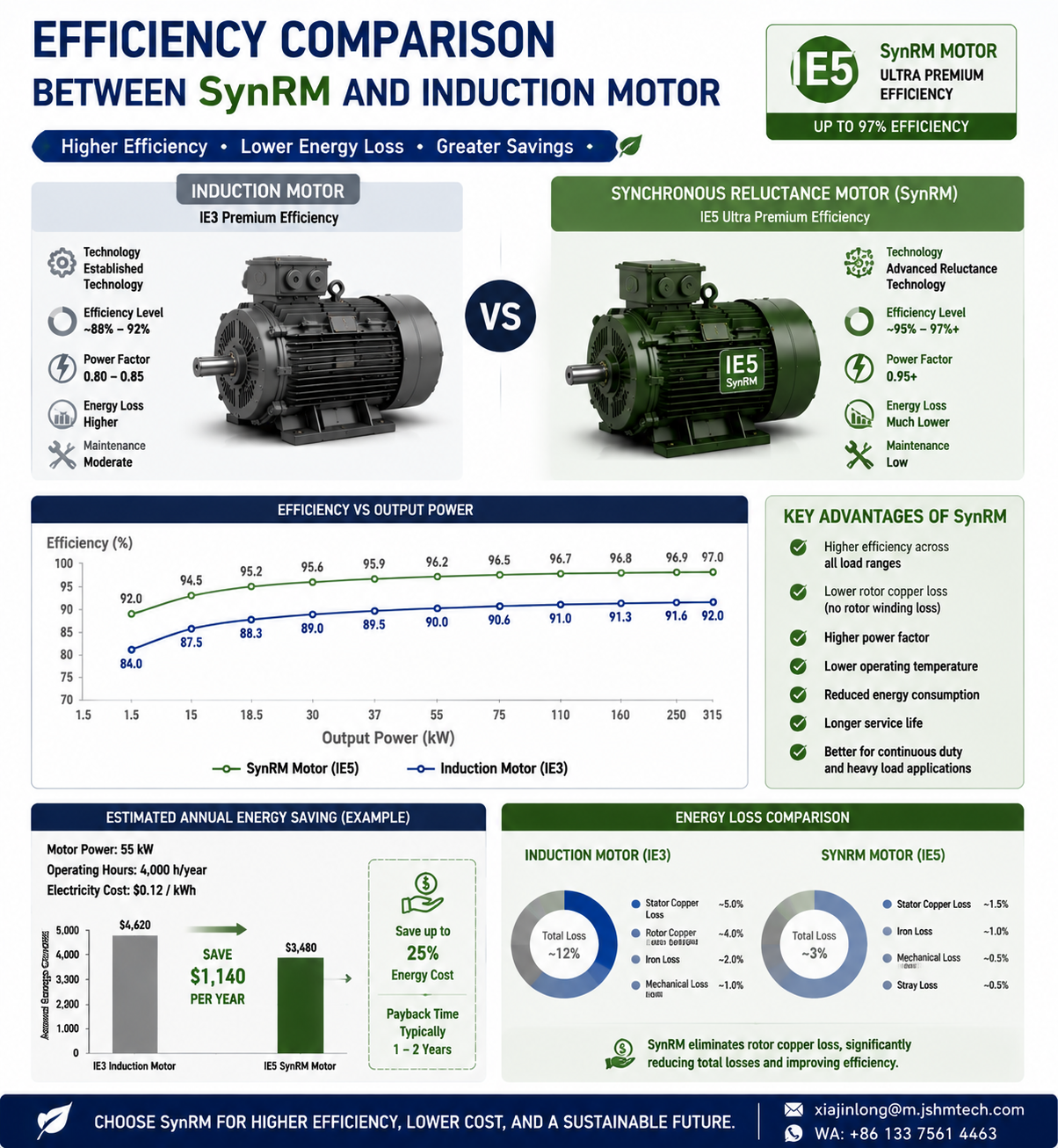

Efficiency is the biggest difference between these two technologies.
Feature | Induction Motor | SynRM |
|---|---|---|
Efficiency Level | IE3-IE4 | IE3-IE5 |
Rotor Loss | High | Almost Zero |
Slip Loss | Yes | No |
Heat Generation | Higher | Lower |
Partial Load Efficiency | Medium | Excellent |
Induction motors require rotor current.
This causes:
Copper loss
Heat generation
Efficiency reduction
SynRM eliminates this loss completely.
Because SynRM operates synchronously:
Rotor speed = Magnetic field speed
Therefore:
No slip energy loss.
Many industrial systems rarely operate at full load.
Examples:
Pumps
Fans
HVAC
SynRM maintains high efficiency during variable operation.
Advantages:
Good starting torque
Mature technology
Limitations:
Lower efficiency at variable speed
Advantages:
High torque efficiency
Excellent variable speed operation
Possible but:
Higher losses
Reduced efficiency at low speed
Designed for:
Variable speed operation
Precise control
Energy saving
Rotor losses generate additional heat.
Results:
Higher temperature
More cooling requirements
Because rotor losses are minimized:
Benefits:
Lower temperature rise
Longer service life

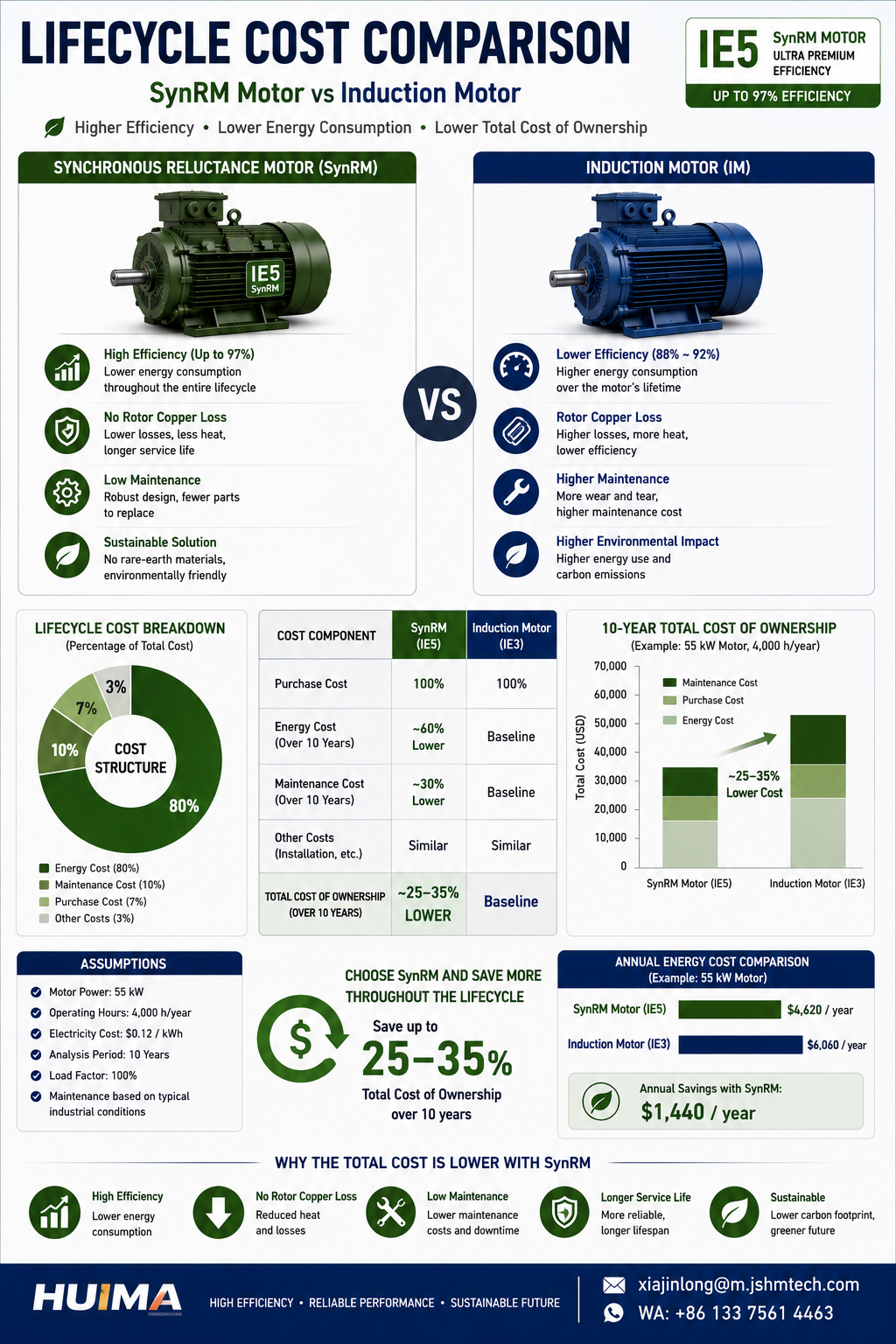

Many customers compare only purchase price.
However, industrial users focus on:
Total Cost of Ownership (TCO)
Advantages:
Lower purchase cost
Mature supply chain
Initial cost may be higher.
However:
Energy savings compensate over operation time.
For motors operating thousands of hours annually:
Energy cost becomes the largest expense.
SynRM reduces:
Electricity consumption
Operating costs
Potential issues:
Rotor losses
Higher temperature
Advantages:
Simple rotor structure
No rotor winding
Lower maintenance requirement
Benefits:
Long operating hours
Variable speed efficiency
Energy saving potential
Benefits:
Excellent partial load efficiency
Continuous operation capability
Benefits:
Stable performance
Lower energy consumption
Benefits:
Reliable torque output
High efficiency operation
Low operating hours
Low energy cost sensitivity
Simple fixed-speed applications
Continuous operation
High electricity cost
Variable speed applications
Energy-saving projects
Industries are moving toward:
IE4
IE5
SynRM provides a practical upgrade path from traditional induction motors.
Benefits:
Lower energy losses
Reduced electricity cost
Advantages:
No rare earth dependency
Stable cost structure
Huima Technology specializes in:
Synchronous Reluctance Motors
Permanent Magnet Synchronous Motors
IE3-IE5 high efficiency motors
Providing:
Frame matching
Shaft customization
Mounting solutions
Including:
Motor selection
Efficiency analysis
Application recommendation
Induction motors have powered industries for more than a century.
However, modern energy challenges require better solutions.
Compared with traditional induction motors, SynRM provides:
IE4-IE5 performance
Lower energy losses
Excellent variable-speed capability
Lower temperature rise
Reduced operating costs
Long-term energy savings
For industries looking to upgrade their motor systems, Synchronous Reluctance Motors represent a practical and future-ready replacement solution.
Huima Technology provides customized IE5 SynRM and PMSM high efficiency motor solutions for global industrial applications.
The main difference is the rotor design. Induction motors use rotor current to generate torque, while SynRM generates torque through magnetic reluctance without rotor copper losses.
Yes. SynRM motors can achieve IE4 and IE5 efficiency levels and provide higher efficiency, especially in variable-speed applications.
Yes. Many industrial applications such as pumps, fans, compressors, and conveyors can upgrade from induction motors to SynRM solutions.
No. SynRM motors use reluctance torque technology and do not require rare earth permanent magnets.
The initial investment may be higher, but lower electricity consumption can provide better lifecycle cost performance.
