Introduction: Why Are Industries Considering PMSM Instead of Induction Motors?
Induction motors have been the standard choice for industrial equipment for decades.
Their popularity comes from several advantages:
Simple construction
Reliable operation
Mature manufacturing technology
Competitive initial cost
Wide industrial availability
However, the operating cost of an industrial motor can be much more important than its initial purchase price.
A motor operating thousands of hours per year continuously consumes electricity throughout its service life.
This has increased demand for high-efficiency motor technologies, particularly:
IE4 and IE5 high-efficiency motor systems
Among these technologies, PMSM has become an important solution for applications requiring high efficiency, high torque density, and variable-speed performance.
But how different is PMSM from a traditional induction motor?
And when does it make sense to replace an induction motor with PMSM?
This guide compares the two technologies from their:
Working principles
Rotor structures
Efficiency
Torque characteristics
Speed control
Energy consumption
Cost
Industrial applications
An induction motor, also known as an asynchronous motor, generates torque through electromagnetic induction.
It consists mainly of:
Stator
Rotor
Bearings
Shaft
Cooling system
Motor housing
The squirrel-cage induction motor is particularly common in industrial applications.
When AC power is supplied to the stator winding, a rotating magnetic field is generated.
This magnetic field interacts with the rotor.
The rotating magnetic field induces current in the rotor conductors.
The interaction between the magnetic field and rotor current generates electromagnetic torque.
The rotor must rotate slightly slower than the synchronous speed to maintain electromagnetic induction.
This speed difference is called slip.
Slip is fundamental to induction motor operation, but it is also associated with rotor losses.
A Permanent Magnet Synchronous Motor (PMSM) uses permanent magnets embedded in or mounted on the rotor to generate magnetic flux.
Unlike an induction motor, the PMSM rotor does not need induced rotor current to establish its main magnetic field.
As a result, PMSM can operate synchronously with the rotating magnetic field.
Permanent magnets provide the rotor's magnetic field.
This eliminates the need for conventional rotor excitation through induced current.
The rotor follows the rotating magnetic field generated by the stator.
Therefore:
Rotor speed = Synchronous speed
under normal synchronous operation.
The interaction between:
Stator magnetic field
Permanent magnet rotor field
produces electromagnetic torque.
Feature | Induction Motor | PMSM |
|---|---|---|
Operating Principle | Electromagnetic induction | Permanent magnet excitation |
Motor Type | Asynchronous | Synchronous |
Rotor Current | Required | Not required for main rotor excitation |
Slip | Required | No normal operating slip |
Rotor Losses | Higher | Very low compared with induction rotor losses |
Efficiency | IE3–IE4 commonly available | IE4–IE5 solutions available |
Torque Density | Moderate | High |
Variable Speed | Good with VFD | Excellent with suitable drive |
Motor Size | Relatively larger | Can be more compact |
Permanent Magnets | No | Yes |
Maintenance | Low | Low |
Important: Actual efficiency, torque density, dimensions, and operating range depend on the specific motor design, power rating, speed, drive, and application.
Efficiency is one of the main reasons industries consider PMSM.
The key difference is the source of rotor magnetic excitation.
In a squirrel-cage induction motor, electromagnetic induction produces rotor current.
The rotor has electrical resistance, so part of the input energy is converted into heat.
This is commonly referred to as rotor copper loss.
PMSM uses permanent magnets to establish rotor magnetic flux.
The rotor therefore does not need the same type of induced electrical current used by an induction motor to produce its magnetic field.
This can significantly reduce rotor-related losses.
Reduced rotor electrical losses can contribute to:
Lower heat generation
Reduced thermal stress
Higher system efficiency
PMSM is particularly attractive in systems where motor speed changes according to process demand.
Typical examples include:
Pumps
Fans
HVAC equipment
Compressors
When combined with an appropriate variable frequency drive, PMSM can provide highly efficient variable-speed operation.

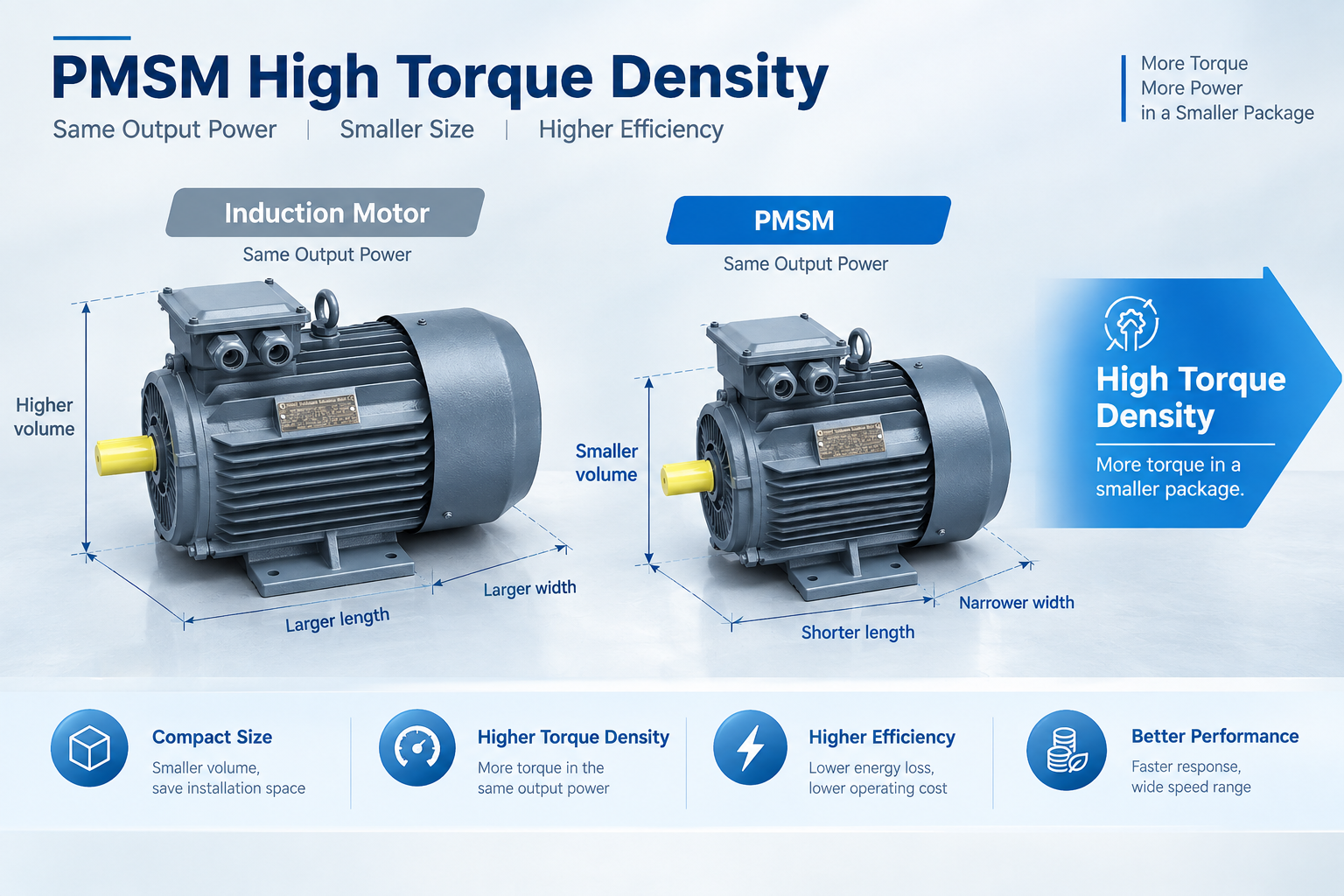

Another major advantage of PMSM is high torque density.
Torque density describes how much torque a motor can produce relative to its size or mass.
Higher torque density can enable:
Smaller motor packages
Reduced equipment footprint
Higher output from limited installation space
Permanent magnets generate magnetic flux without requiring rotor electrical excitation.
This enables a high electromagnetic torque output relative to motor volume in many designs.
For applications where installation space is limited, PMSM can provide an important advantage.
This is particularly relevant to:
Compact compressors
Industrial machinery
HVAC equipment
Specialized OEM equipment
Modern industrial systems increasingly use variable frequency drives.
The combination of motor + drive has become an important part of energy-efficient industrial systems.
Induction motors can work effectively with VFDs.
However, efficiency varies depending on:
Motor design
Speed
Load
Drive efficiency
Operating point
PMSM is inherently suited to electronically controlled variable-speed operation.
PMSM systems can provide:
Accurate speed control
Stable operation
Fast dynamic response
The drive can adjust motor speed according to actual equipment demand.
For variable-torque applications such as pumps and fans, this can substantially improve overall system energy performance.
The potential energy savings from upgrading to PMSM depend on:
Motor power
Annual operating hours
Load profile
Existing motor efficiency
Electricity price
VFD operation
System efficiency
Therefore, a proper comparison should use actual operating data instead of assuming a fixed percentage of savings.
A simplified calculation is:
Annual Energy Consumption = Input Power × Operating Hours
For example, if a motor operates:
6,000 hours/year
even a relatively small reduction in input power can create meaningful annual savings.
When evaluating a PMSM upgrade, consider:
Motor purchase price
Drive cost
Installation cost
Annual operating hours
Electricity tariff
Existing motor efficiency
Expected PMSM efficiency
Load profile
This provides a more accurate Total Cost of Ownership (TCO) calculation.
The purchase price should not be the only factor in industrial motor selection.
A better approach is to compare:
Initial Investment + Energy Cost + Maintenance + Lifecycle Cost
Induction motors have:
Mature manufacturing processes
Large global supply chains
Widely standardized designs
Therefore, they can be highly competitive for standard applications.
PMSM may have a higher initial purchase price.
However, for motors operating for many hours per year, electricity consumption can become much more important than the initial price.
The economic advantage should therefore be evaluated over the motor's expected operating life.
Both motor technologies can provide reliable industrial operation when correctly designed, installed, and operated.
However, their internal structures are different.
Typical maintenance requirements include:
Bearing inspection
Lubrication
Cooling system inspection
Electrical connection inspection
PMSM also requires:
Bearing maintenance
Cooling system inspection
Electrical connection inspection
Drive system monitoring
The absence of conventional rotor electrical excitation can reduce rotor-related heat generation.
However, PMSM systems should still be correctly matched with their drive and operating conditions.

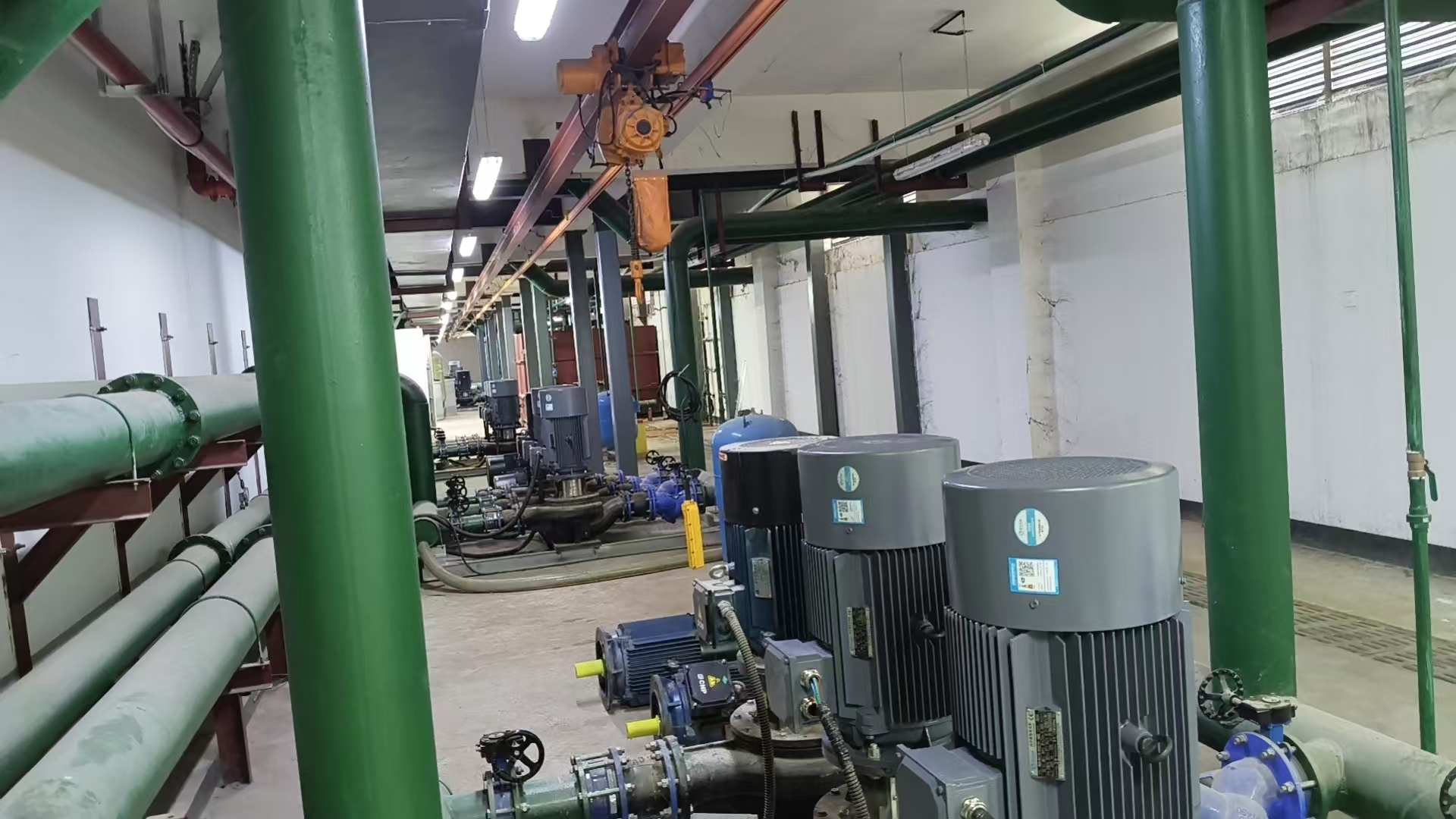

PMSM technology is suitable for a wide range of industrial applications.

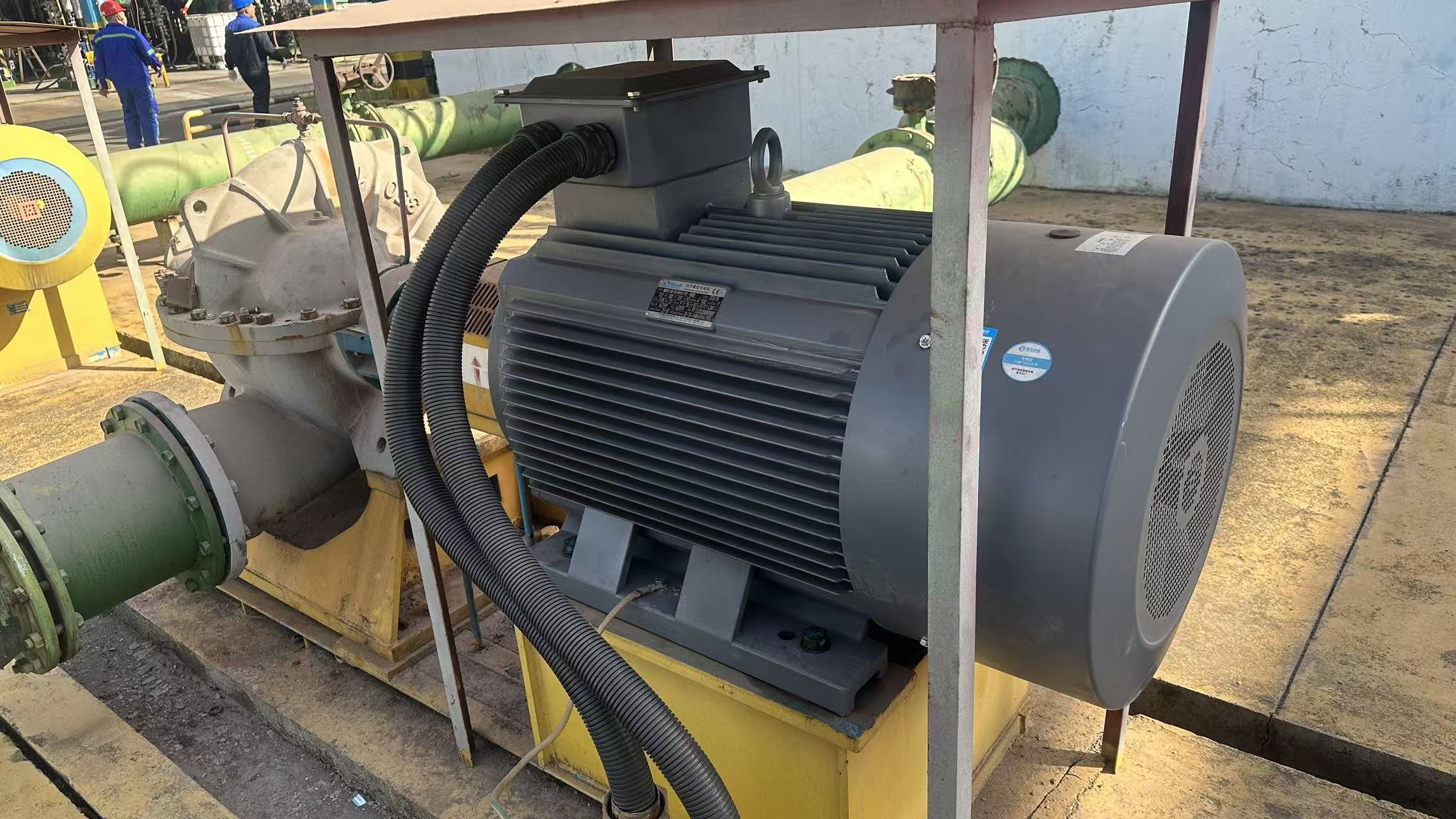

PMSM can be used in:
Water pumps
Process pumps
Circulation pumps
Industrial pumping systems
The combination of PMSM and VFD can help match motor speed with actual flow requirements.
PMSM can provide:
High efficiency
Compact design
Variable-speed operation
This makes it suitable for advanced HVAC equipment.
PMSM can be considered for:
Air compressors
Refrigeration compressors
Industrial compression systems
The high torque density of PMSM can be especially valuable where equipment size is constrained.
PMSM can be integrated into:
Industrial machinery
Automation equipment
Specialized production systems
OEM customers can select the motor according to:
Output power
Speed
Torque
Dimensions
Control requirements
There is no universal answer.
The correct choice depends on the application.
Induction motors remain a practical choice when:
Motor operating hours are relatively low
Energy cost is not the dominant concern
Standard motor design is required
For straightforward applications with limited speed variation, induction motors can remain a cost-effective solution.
PMSM is attractive when:
Motors operate for long periods
Electricity costs are significant
Energy efficiency is a major objective
PMSM is particularly suitable when:
Installation space is limited
High output is required
Compact equipment design is important
PMSM can be considered for systems requiring:
Precise speed control
Variable load operation
High-efficiency VFD operation
Selection Factor | Induction Motor | PMSM |
|---|---|---|
Initial Cost | Generally lower | Generally higher |
Efficiency Potential | High | Very high |
Rotor Electrical Loss | Yes | Very low |
Slip | Required | No normal operating slip |
Torque Density | Moderate | High |
Variable-Speed Performance | Good | Excellent |
Motor Size | Standard | Can be more compact |
Permanent Magnets | No | Yes |
Long-Hour Operation | Good | Excellent potential |
Energy Saving Projects | Suitable | Highly suitable |
OEM Compact Design | Good | Excellent |
VFD Integration | Widely available | Required for many applications |
Since Huima Technology focuses on both PMSM and SynRM, this is an important section for website positioning.
PMSM is not the only high-efficiency synchronous motor technology.
SynRM provides another solution.
High torque density
Compact design
High efficiency
Excellent variable-speed performance
No permanent magnets
Reduced rotor losses
High efficiency
Stable material supply
Excellent industrial energy-saving potential
A professional motor supplier should not simply recommend one technology to every customer.
The selection should consider:
Power
Speed
Torque
Load profile
Motor dimensions
Operating hours
VFD
Environmental conditions
Target efficiency
Total cost of ownership
This is where application engineering becomes important.

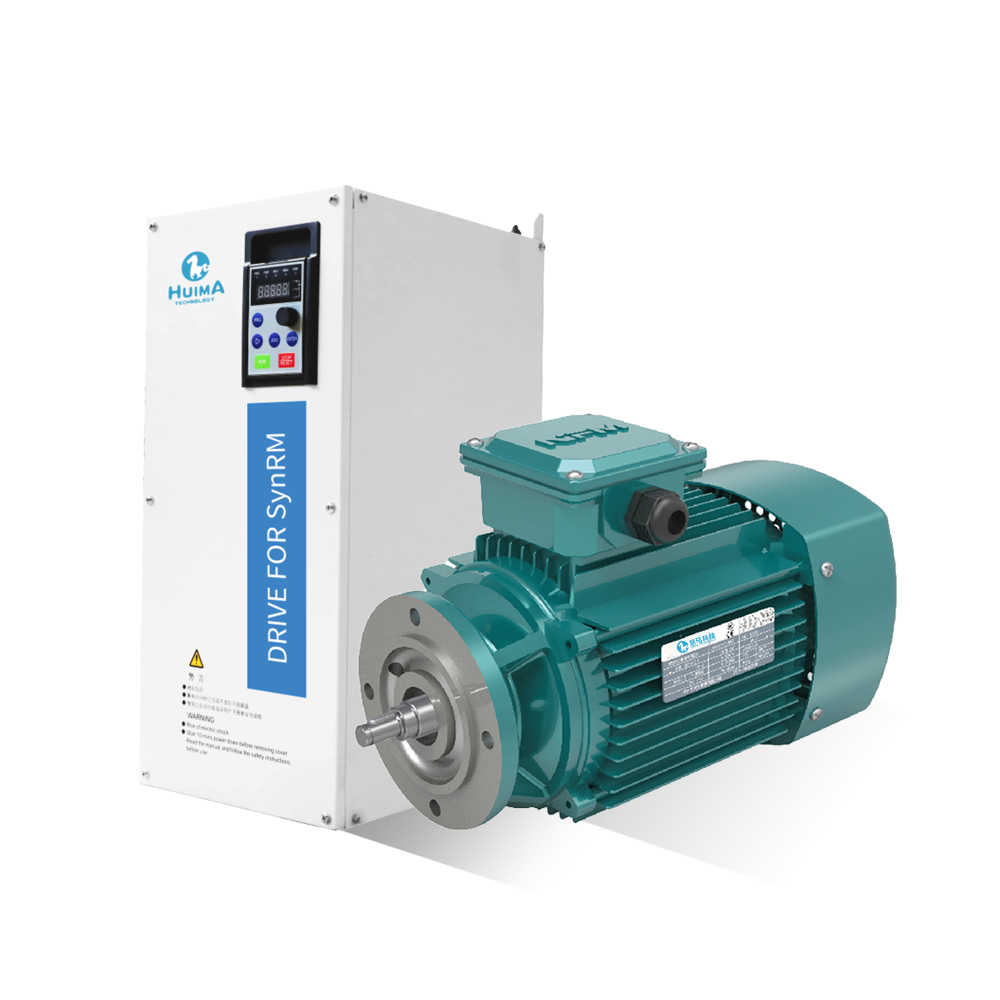

Huima Technology provides Permanent Magnet Synchronous Motors and Synchronous Reluctance Motors for industrial applications.
The company focuses on high-efficiency motor solutions for applications including:
Pumps
Fans
HVAC
Compressors
Industrial machinery
Huima PMSM solutions can be configured according to:
Rated power
Rated speed
Voltage
Frequency
Mounting
Shaft dimensions
Cooling requirements
For motor replacement and OEM integration, key parameters include:
Frame size
Mounting dimensions
Shaft diameter
Shaft extension
Flange dimensions
Bearing configuration
The motor should also be matched according to:
Voltage
Frequency
Rated current
Speed
Torque
Drive requirements
For existing induction motor installations, Huima can evaluate whether a PMSM upgrade is technically and economically suitable.
A typical evaluation process includes:
Existing Motor
↓
Operating Data
↓
Load Profile
↓
PMSM Selection
↓
VFD Matching
↓
Energy Saving Evaluation
↓
ROI / TCO Analysis
Induction motors remain an important technology in industrial applications.
However, increasing energy costs, energy-efficiency requirements, and demand for compact equipment are accelerating the adoption of high-efficiency synchronous motor technologies.
Compared with traditional induction motors, PMSM offers important advantages in:
Reduced rotor-related losses
High efficiency potential
Excellent variable-speed performance
High torque density
Compact design
Precise speed control
Lower electricity consumption potential
Strong suitability for long-running applications
Excellent compatibility with variable-speed systems
PMSM can be applied to:
Pumps
HVAC
Fans
Compressors
Industrial machinery
However, PMSM is not automatically the best choice for every application.
The right solution depends on the complete operating system, including motor, drive, load, speed, torque, and operating hours.
For customers comparing PMSM, SynRM, and induction motors, Huima Technology can provide application-oriented high-efficiency motor solutions based on actual operating requirements.
PMSM can achieve higher efficiency because permanent magnets provide rotor magnetic excitation without the same rotor electrical losses found in induction motors. Actual efficiency depends on motor design, power rating, operating point, and drive system.
Yes, PMSM can replace induction motors in many industrial applications. However, the replacement must be checked for power, torque, speed, mounting dimensions, shaft dimensions, control method, and drive compatibility.
PMSM can be an excellent choice for pump applications, particularly where the pump operates for long hours or requires variable-speed control. A PMSM combined with an appropriate VFD can provide efficient operation across changing load conditions.
Many industrial PMSM systems require an appropriate drive for starting, synchronization, and speed control. The motor and drive should therefore be selected as a complete system.
The initial cost of a PMSM can be higher. However, the appropriate comparison should consider lifecycle energy consumption, operating hours, electricity prices, maintenance, and expected service life.
PMSM uses permanent magnets to generate rotor magnetic flux, while SynRM generates torque through rotor magnetic reluctance. PMSM generally offers very high torque density, while SynRM provides a magnet-free solution with high efficiency and reduced dependence on permanent magnet materials.
Yes. PMSM technology can be designed to achieve very high efficiency levels, including IE5 solutions where the specific motor design and applicable efficiency requirements are met.
