IE5 Motor Technology Explained: How Ultra Premium Efficiency Motors Reduce Industrial Energy Costs

Introduction: The Rise of IE5 Ultra Premium Efficiency Motors

Electric motors are responsible for a significant portion of global industrial electricity consumption.

They are widely used in:

• Pumps

• Fans

• Compressors

• HVAC systems

• Conveyors

• Industrial machinery

For decades, induction motors have been the standard choice because of their:

• Simple construction

• Reliable operation

• Low initial investment

However, increasing energy costs and global energy-efficiency regulations are accelerating the transition toward advanced motor technologies.

The next generation of industrial motors is moving toward:

• IE4 Super Premium Efficiency

• IE5 Ultra Premium Efficiency

IE5 motors represent one of the highest efficiency levels available for industrial motor systems, focusing on reducing losses and improving lifecycle energy performance.

Modern IE5 solutions are mainly based on advanced technologies such as:

• Synchronous Reluctance Motors (SynRM)

• Permanent Magnet Synchronous Motors (PMSM)

1. What Is an IE5 Motor?

An IE5 motor is an ultra-high efficiency motor designed to minimize electrical and mechanical losses during operation.

Compared with traditional motors, IE5 motors achieve higher efficiency through:

• Advanced electromagnetic design

• Reduced copper losses

• Optimized magnetic circuits

• Improved materials

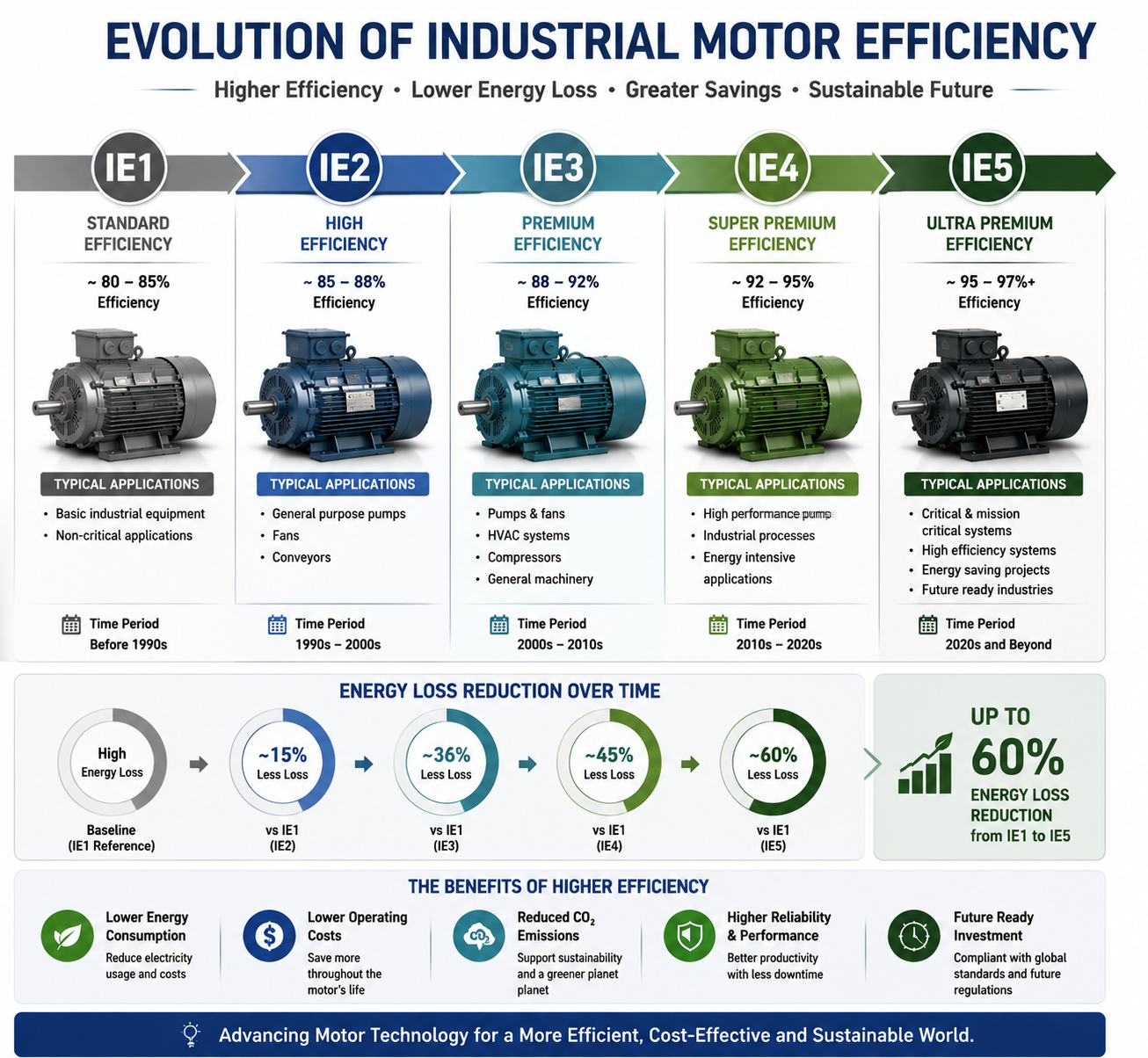

1.1 Understanding IE Motor Efficiency Classes

The IEC efficiency classification system defines different motor efficiency levels:

The higher the IE class:

• The lower the energy loss

• The higher the motor efficiency

• The lower the operating cost

1.1.1 Why Efficiency Class Matters for Industrial Users

For residential equipment, efficiency differences may have limited impact.

However, industrial motors often operate:

• 4,000–8,000 hours/year

• Continuously

• Under heavy loads

Therefore, even a small efficiency improvement can generate significant savings.

1.1.2 Efficiency Is More Than Just Purchase Cost

The total cost of ownership includes:

• Motor purchase cost

• Electricity consumption

• Maintenance cost

• Replacement cost

For industrial users:

Energy cost is usually much higher than the initial motor investment.

2. Why Are Industries Moving Toward IE5 Motors?

Industrial companies are adopting IE5 motors because of three major drivers:

2.1 Rising Industrial Energy Costs

Electricity is one of the largest operating expenses in industries.

High-efficiency motors help reduce:

• Power consumption

• Production costs

• Energy waste

2.1.1 Long Running Hours Create Greater Savings

Example:

A motor running:

• 24 hours/day

• 300 days/year

will benefit significantly from efficiency improvement.

2.2 Global Energy Efficiency Regulations

Many countries are increasing requirements for industrial motor efficiency.

The trend is moving toward:

• IE3 as minimum efficiency

• IE4 adoption

• IE5 future solutions

2.2.1 Sustainability and Carbon Reduction Goals

IE5 motors support companies in achieving:

• Lower CO₂ emissions

• Energy-saving targets

• Green manufacturing goals

2.3 Higher Performance Requirements

Modern industries require motors with:

• Better control

• Higher efficiency

• Lower heat generation

IE5 motors provide improved performance for advanced applications.

3. How Do IE5 SynRM Motors Achieve Ultra High Efficiency?

A SynRM motor generates torque through magnetic reluctance instead of permanent magnets.

Its IE5 performance comes from optimized electromagnetic design.

3.1 Elimination of Rotor Copper Loss

Traditional induction motors generate rotor current.

SynRM does not.

3.1.1 No Rotor Windings

SynRM rotor contains:

• No copper winding

• No rotor bars

• No induced current

Benefits:

• Lower heat

• Higher efficiency

• Improved reliability

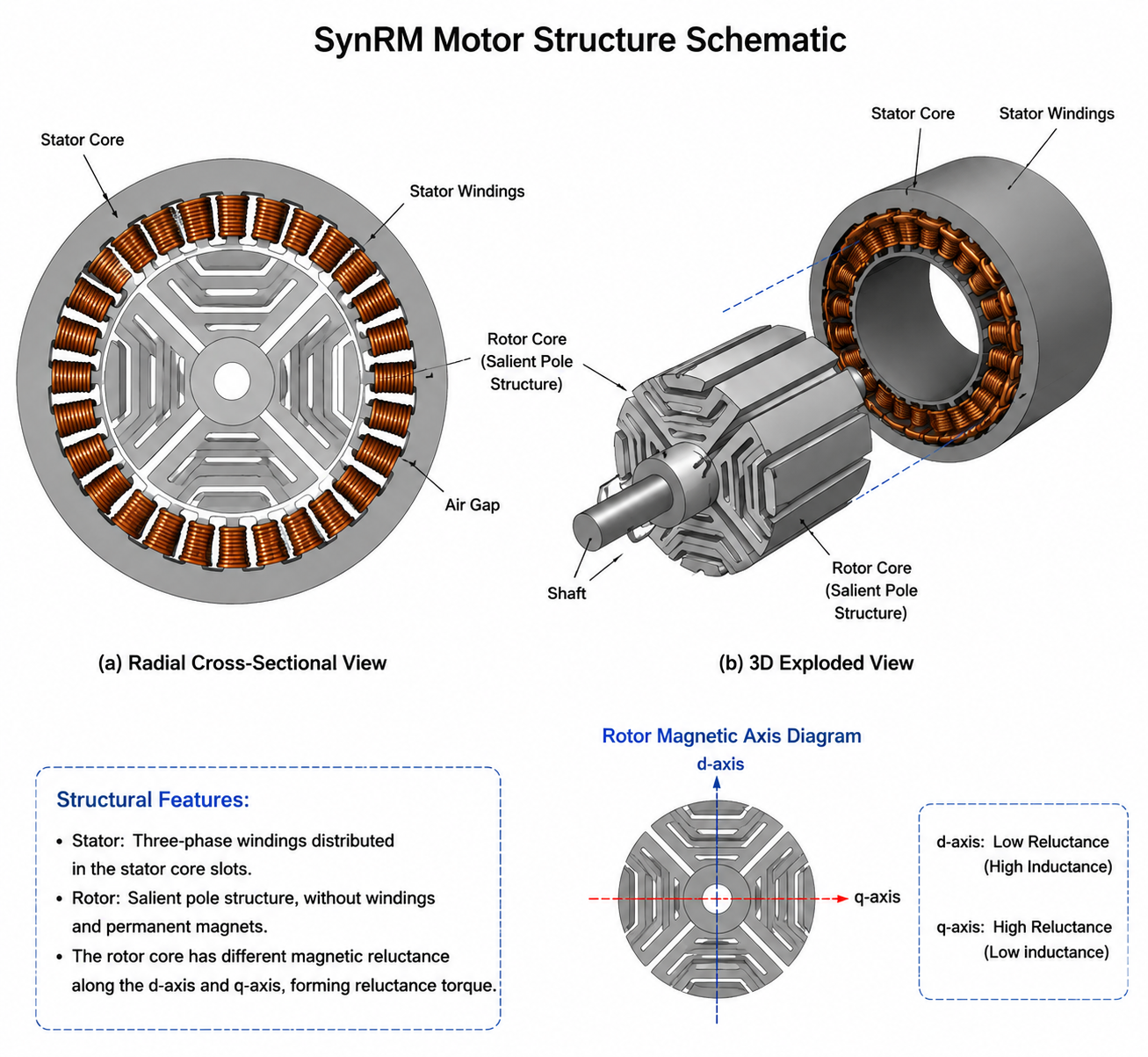

3.2 Advanced Flux Barrier Rotor Design

The SynRM rotor uses carefully designed magnetic paths.

3.2.1 Magnetic Reluctance Torque Generation

The rotor creates torque through:

• Different magnetic reluctance paths

• Magnetic field alignment

3.2.2 Stable Material Cost

Because SynRM does not require rare earth magnets:

Advantages:

• Reduced material risk

• Stable supply chain

• Long-term cost advantage

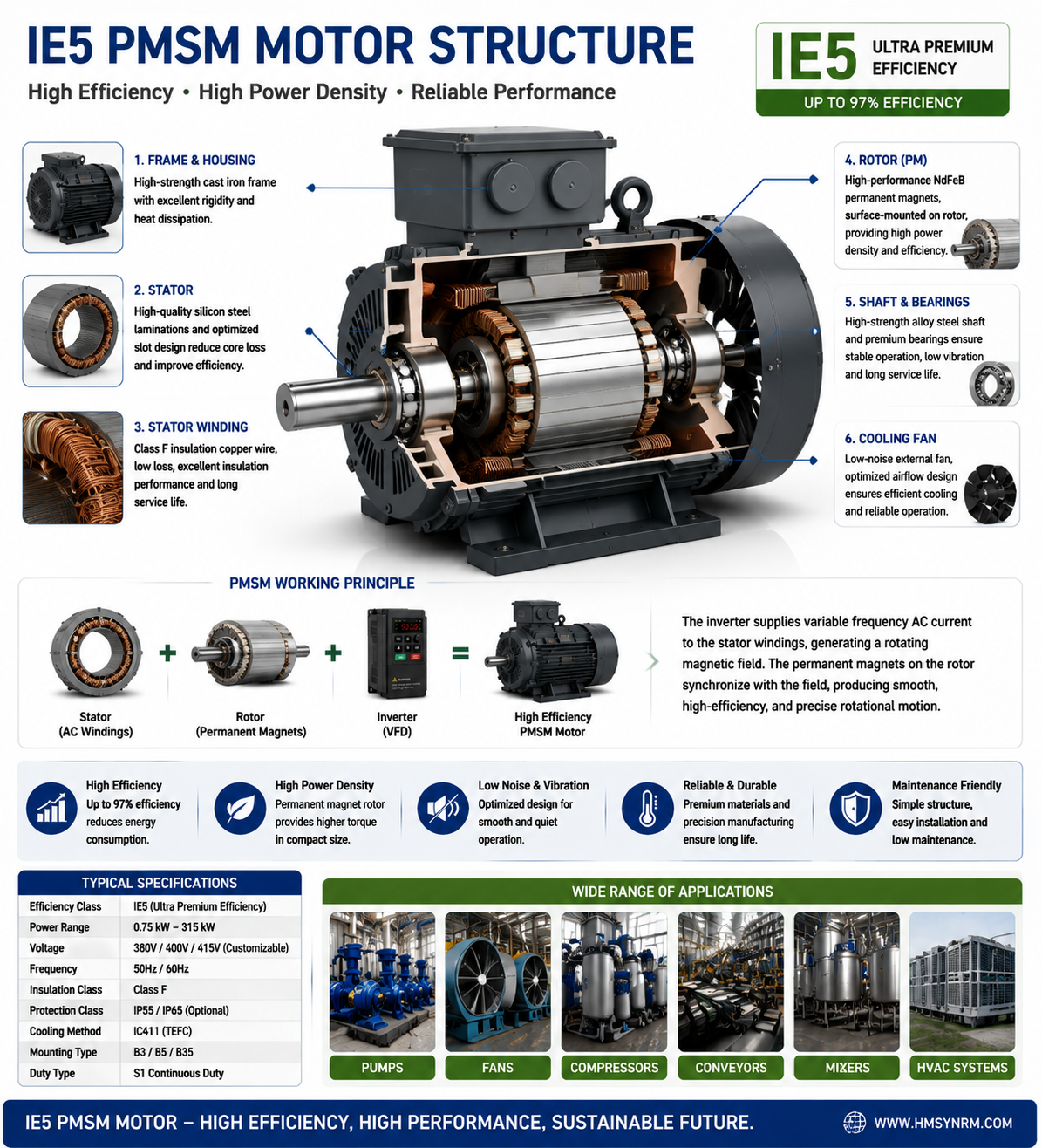

4. How Do IE5 PMSM Motors Achieve High Efficiency?

PMSM motors use permanent magnets to generate rotor magnetic flux.

4.1 Permanent Magnet Excitation Advantage

4.1.1 Reduced Rotor Losses

Permanent magnets eliminate rotor excitation losses.

Benefits:

• Higher efficiency

• Lower temperature rise

4.2 High Power Density Design

4.2.1 More Output From Smaller Size

PMSM provides:

• Compact structure

• High torque density

• Better performance

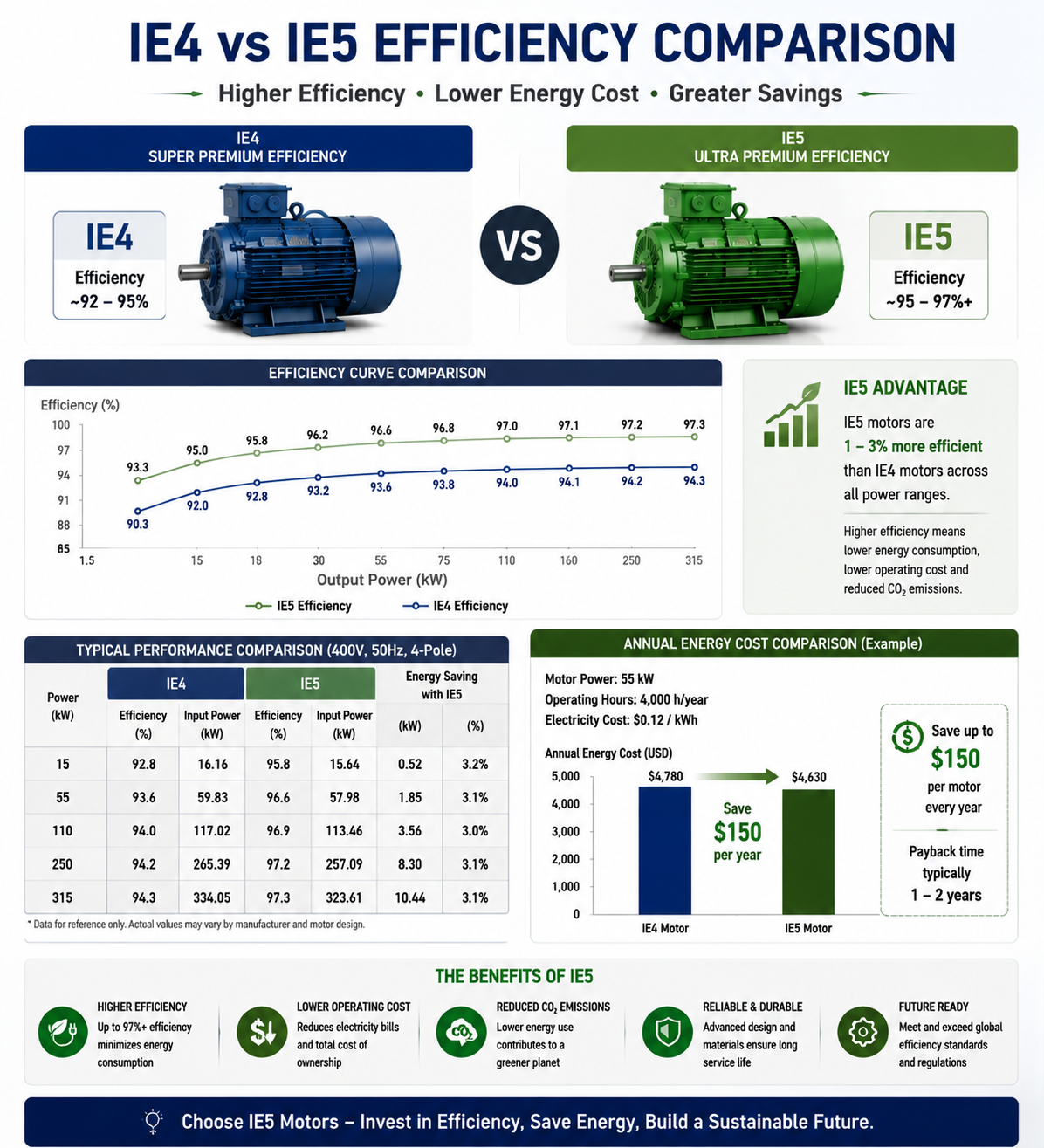

5. IE4 vs IE5 Motors: What Is the Difference?

5.1 Why IE5 Provides Better Lifecycle Value

5.1.1 Lower Electricity Consumption

IE5 motors reduce:

• Electrical losses

• Operating costs

5.1.2 Better Long-Term Investment

Although IE5 motors may have higher initial costs:

The return comes from:

• Energy savings

• Lower maintenance

• Longer operating life

6. IE5 Motor Applications in Industry

6.1 IE5 Motors for Pumps

Energy Saving Benefits

Suitable for:

• Water pumps

• Process pumps

• Circulation pumps

Advantages:

• Variable speed efficiency

• Lower electricity consumption

6.2 IE5 Motors for HVAC Systems

High Efficiency Fan Applications

Suitable for:

• Air handling units

• Ventilation systems

Advantages:

• Continuous operation efficiency

6.3 IE5 Motors for Compressors

High Torque Performance

Suitable for:

• Air compressors

• Refrigeration systems

Advantages:

• Stable operation

• Energy reduction

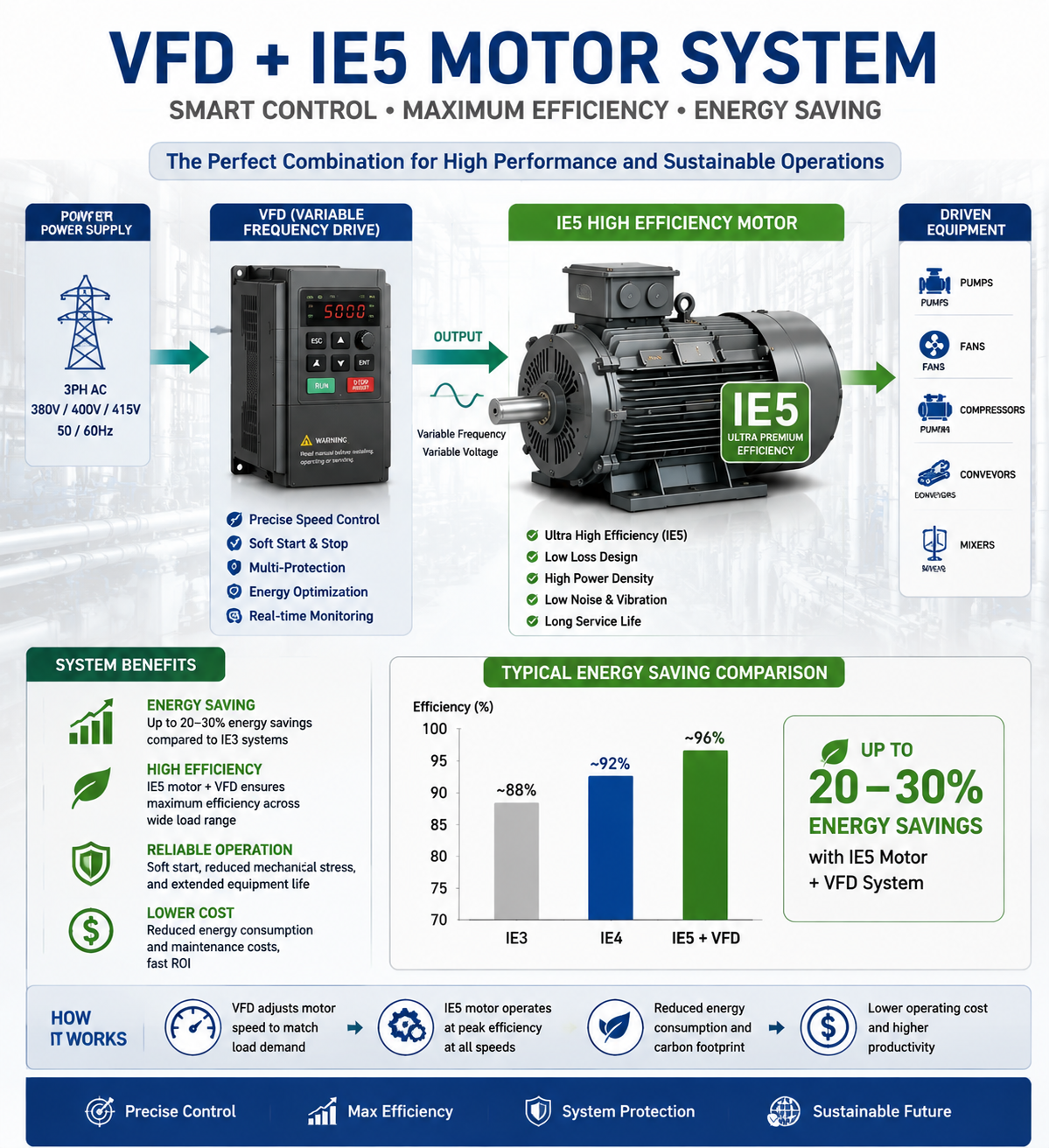

7. IE5 Motor + VFD: The Complete Energy Saving Solution

Modern IE5 systems usually combine:

• IE5 motor

• Variable frequency drive

• Intelligent control

7.1 Why VFD Improves IE5 Motor Performance

7.1.1 Optimized Speed Control

VFD adjusts:

• Motor speed

• Torque output

• Energy consumption

7.1.2 Better System Efficiency

Benefits:

• Reduced energy waste

• Improved process control

8. Why Choose Huima Technology IE5 Motor Solutions?

Huima Technology focuses on:

• SynRM motors

• PMSM motors

• High efficiency industrial motor systems

8.1 Advanced IE5 Motor Technology

8.1.1 SynRM and PMSM Solutions

Providing:

• IE4 efficiency

• IE5 efficiency

• Customized motor designs

8.2 OEM Customization Capability

8.2.1 Designed for Industrial Applications

Support:

• Voltage customization

• Mounting options

• Cooling solutions

• Shaft design

9. Conclusion: IE5 Motors Are the Future of Industrial Energy Efficiency

The industrial motor market is moving toward higher efficiency technologies.

IE5 motors provide:

• Lower energy consumption

• Reduced operating costs

• Better sustainability performance

Among available technologies:

IE5 SynRM:

• Magnet-free

• Cost stable

• Highly efficient

IE5 PMSM:

• High torque density

• Compact design

• Excellent performance

For industries seeking long-term energy savings, IE5 SynRM and PMSM motors represent the next generation of high-efficiency motor solutions.

Huima Technology provides customized IE5 SynRM and PMSM motor solutions for global industrial applications.

10. Frequently Asked Questions (FAQ)

Q1: What is an IE5 motor?

An IE5 motor is an ultra premium efficiency motor designed to minimize energy losses and provide higher efficiency than traditional motor technologies.

Q2: Are IE5 motors better than IE4 motors?

Yes. IE5 motors provide higher efficiency and lower energy losses, especially in applications with long operating hours.

Q3: Which technologies can achieve IE5 efficiency?

SynRM and PMSM technologies are among the leading solutions capable of achieving IE5 efficiency levels.

Q4: Are IE5 motors suitable for industrial applications?

Yes. IE5 motors are especially suitable for pumps, fans, HVAC systems, compressors, and other continuous-duty applications.

Q5: Do IE5 motors need VFD control?

Many IE5 SynRM and PMSM motors operate with VFD systems to achieve optimal efficiency and control performance.
