Why Are Industries Replacing Induction Motors with IE5 SynRM And PMSM Solutions?

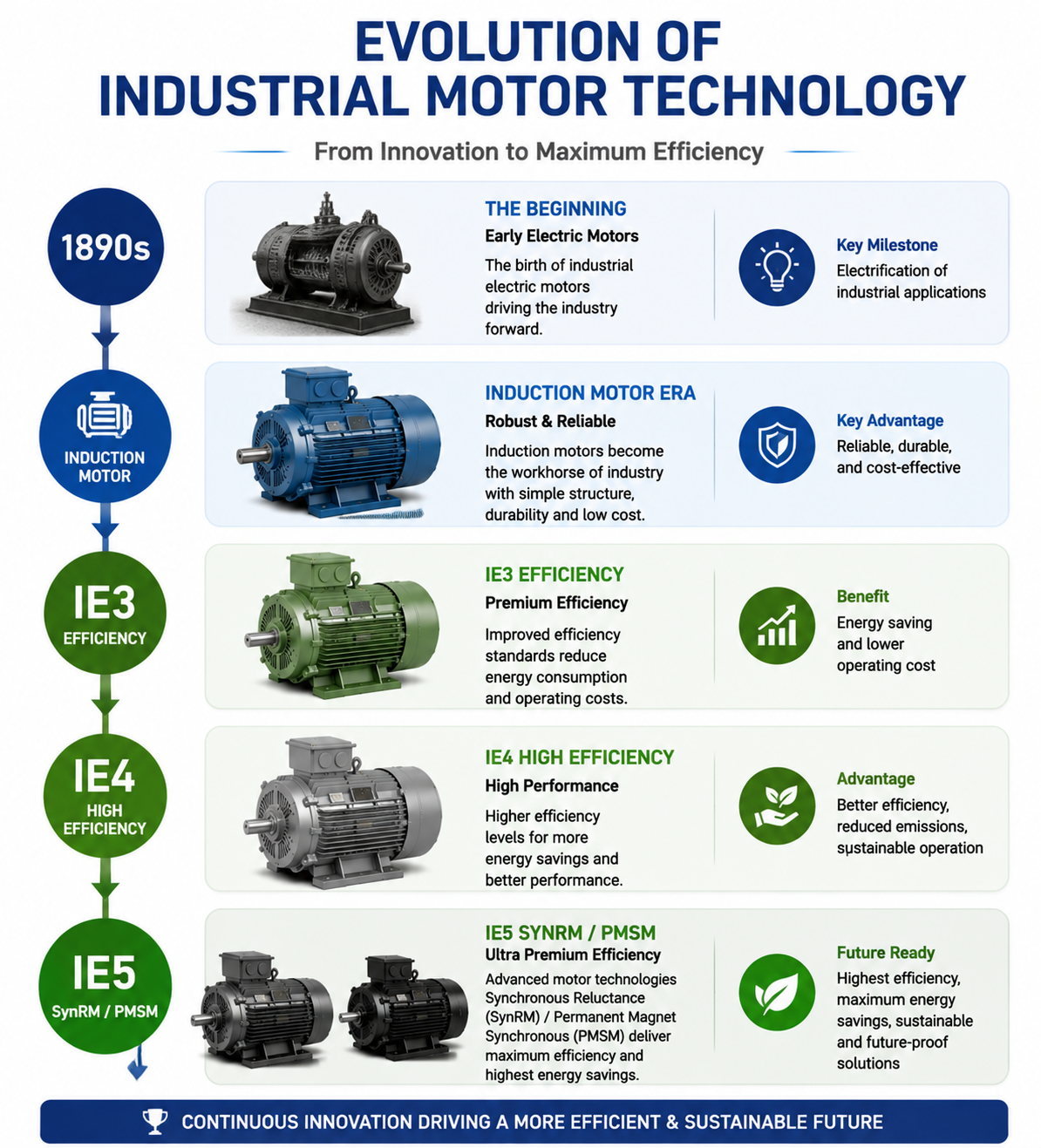

Introduction: The Transformation From Traditional Induction Motors to High Efficiency Motors

For more than a century, induction motors have been the most widely used motor technology in industrial applications.

They are popular because of:

• Simple structure

• Reliable operation

• Low initial cost

• Easy maintenance

However, modern industries are facing new challenges:

• Increasing electricity costs

• Stricter energy efficiency regulations

• Carbon reduction targets

• Higher production requirements

Because electric motors consume a significant share of industrial electricity, improving motor efficiency has become one of the fastest ways to reduce operating costs.

As a result, industries are increasingly upgrading from traditional induction motors to advanced high-efficiency technologies:

• Synchronous Reluctance Motors (SynRM)

• Permanent Magnet Synchronous Motors (PMSM)

These technologies provide:

• IE4 and IE5 efficiency levels

• Lower energy losses

• Better variable-speed performance

• Improved lifecycle economics

1. Why Are Industries Moving Away From Traditional Induction Motors?

Although induction motors remain widely used, their operating principle creates several limitations.

1.1 Rotor Losses Reduce Motor Efficiency

Induction motors generate rotor current through electromagnetic induction.

This creates unavoidable losses.

1.1.1 Rotor Copper Loss Creates Heat Generation

During operation:

• Rotor current flows

• Copper resistance produces heat

• Energy is wasted

The result:

• Lower efficiency

• Higher temperature

• More cooling requirements

1.1.2 Slip Causes Additional Energy Loss

Induction motors operate with slip between:

• Stator magnetic field speed

• Rotor mechanical speed

This means:

The rotor cannot reach synchronous speed.

1.2 Traditional Motors Are Less Efficient Under Variable Loads

Many industrial systems do not operate continuously at full load.

Examples:

• Pumps

• Fans

• HVAC

• Compressors

During partial-load operation:

Traditional motors may experience efficiency reduction.

1.2.1 Variable Speed Applications Need Better Motor Technology

With increasing VFD usage, industries need motors optimized for:

• Variable speed

• High efficiency

• Accurate control

SynRM and PMSM are specifically designed for these operating conditions.

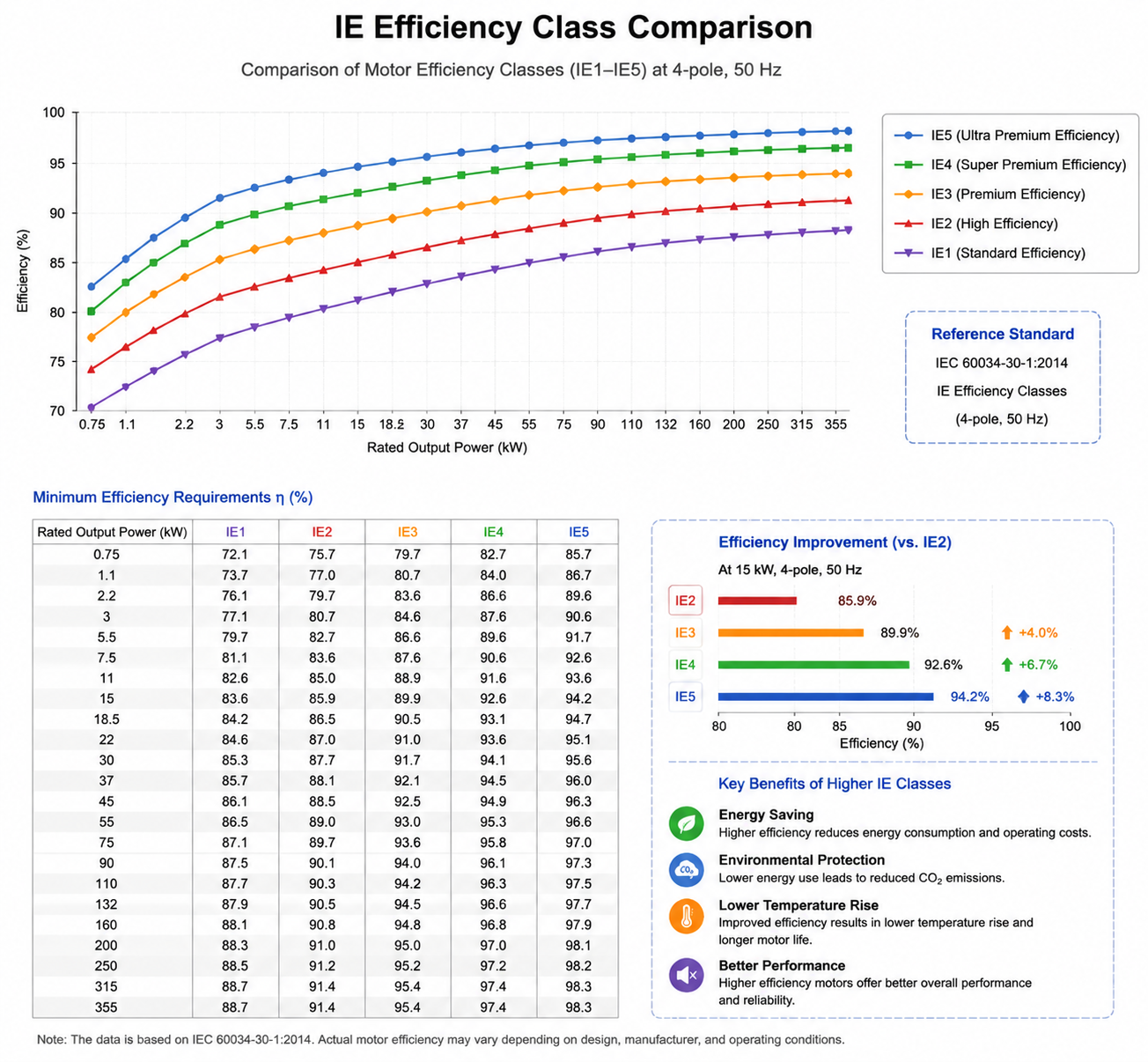

2. What Makes IE5 Motors Different?

The IEC efficiency classification system defines motor efficiency levels.

IE5 represents the highest efficiency level currently defined for variable-speed AC motors.

2.1 Lower Energy Losses

2.1.1 Reduced Electricity Consumption

Higher efficiency means:

• Less electrical input

• More mechanical output

• Lower operating cost

2.1.2 Improved Carbon Reduction Performance

Lower energy consumption results in:

• Reduced CO₂ emissions

• Improved sustainability

• Easier compliance with environmental goals

3. Why Industries Choose SynRM Motors Instead of Induction Motors

A Synchronous Reluctance Motor (SynRM) generates torque through magnetic reluctance instead of rotor current.

This creates several advantages.

3.1 Magnet-Free Rotor Design

3.1.1 No Rare Earth Materials Required

Unlike PMSM:

SynRM does not use permanent magnets.

Benefits:

• Stable material supply

• Lower resource dependency

• Reduced material price risk

3.1.2 Almost Zero Rotor Losses

Because there are:

• No rotor winding

• No rotor current

SynRM achieves:

• Lower heat generation

• Higher efficiency

• Better reliability

3.2 Easy Replacement of Existing Motors

One important advantage of SynRM is retrofit capability.

3.2.1 Mechanical Compatibility

Many SynRM motors can replace existing induction motors without major mechanical modifications.

Suitable for:

• Pumps

• Fans

• Compressors

• Conveyors

3.2.2 Faster Return on Investment

Energy savings can offset the initial investment difference.

The calculation depends on:

• Motor power

• Running hours

• Electricity cost

• Load profile

ABB has highlighted IE5 SynRM solutions as retrofit-friendly options with significant loss reduction compared with IE3 motors.

4. Why Industries Choose PMSM Motors Instead of Induction Motors

A Permanent Magnet Synchronous Motor (PMSM) uses permanent magnets to generate rotor magnetic flux.

4.1 Higher Torque Density

4.1.1 Smaller Size With Higher Output

Permanent magnets provide strong magnetic flux.

Advantages:

• Compact motor design

• Higher power density

• Space saving

4.2 Excellent Dynamic Performance

4.2.1 Precise Speed Control

With VFD control:

PMSM provides:

• Fast response

• Accurate speed regulation

• High efficiency

4.3 Applications Suitable for PMSM Upgrade

Common applications:

Compressors

Benefits:

• High torque density

• Compact design

Advanced Pumps

Benefits:

• Precise flow control

Automation Equipment

Benefits:

• High dynamic performance

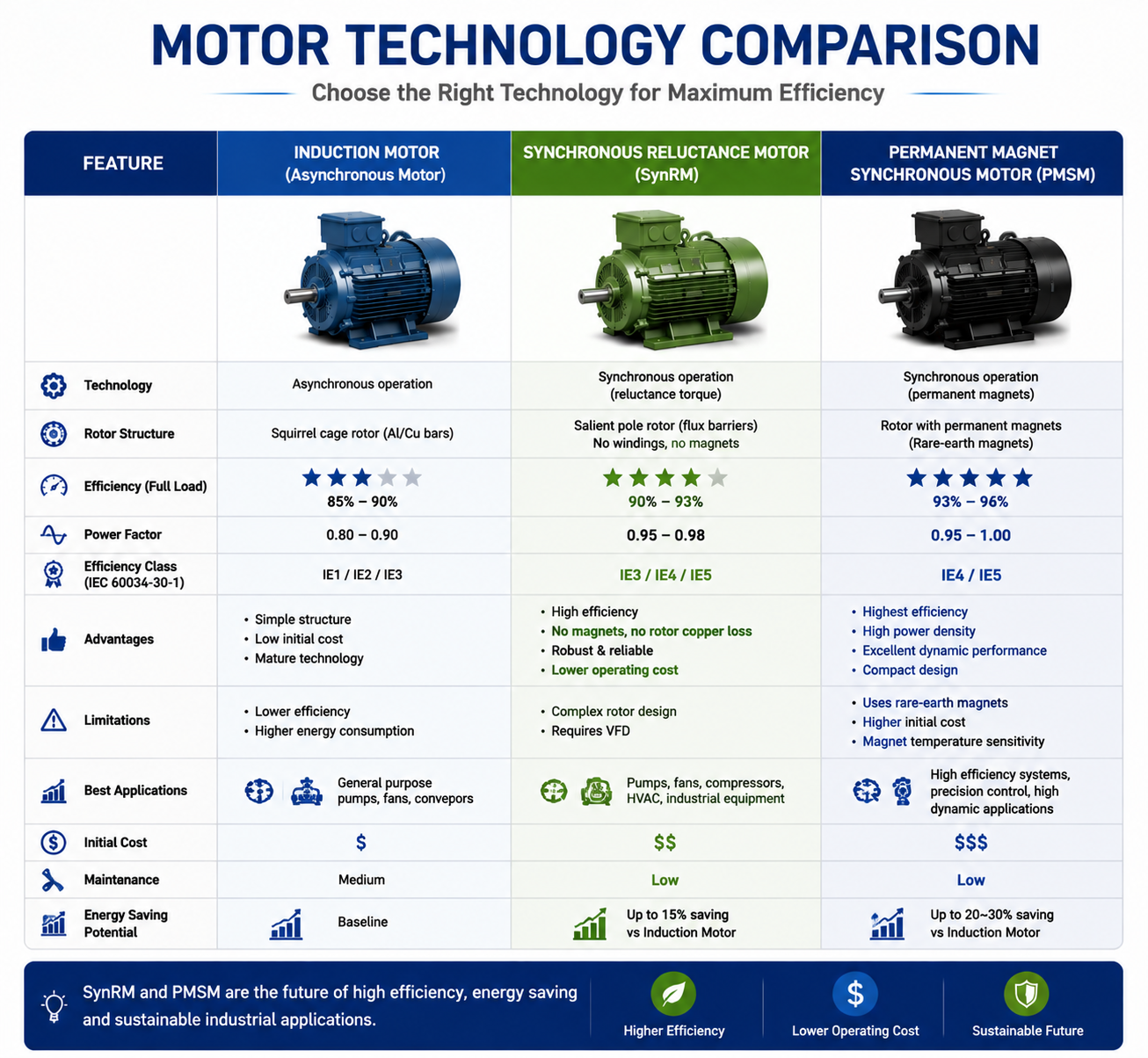

5. SynRM vs PMSM vs Induction Motor Comparison

6. Which Industries Benefit Most From Motor Upgrades?

6.1 Pump Industry

Energy Saving Potential

Applications:

• Water pumps

• Process pumps

• Circulation pumps

Recommended:

SynRM / PMSM

6.2 HVAC Industry

Continuous Operation Advantage

Applications:

• Fans

• Air handling units

• Cooling systems

Recommended:

SynRM

6.3 Compressor Industry

High Performance Requirements

Applications:

• Air compressors

• Refrigeration compressors

Recommended:

SynRM / PMSM

6.4 Manufacturing Industry

Production Line Applications

Examples:

• Conveyors

• Mixers

• Extruders

Recommended:

SynRM

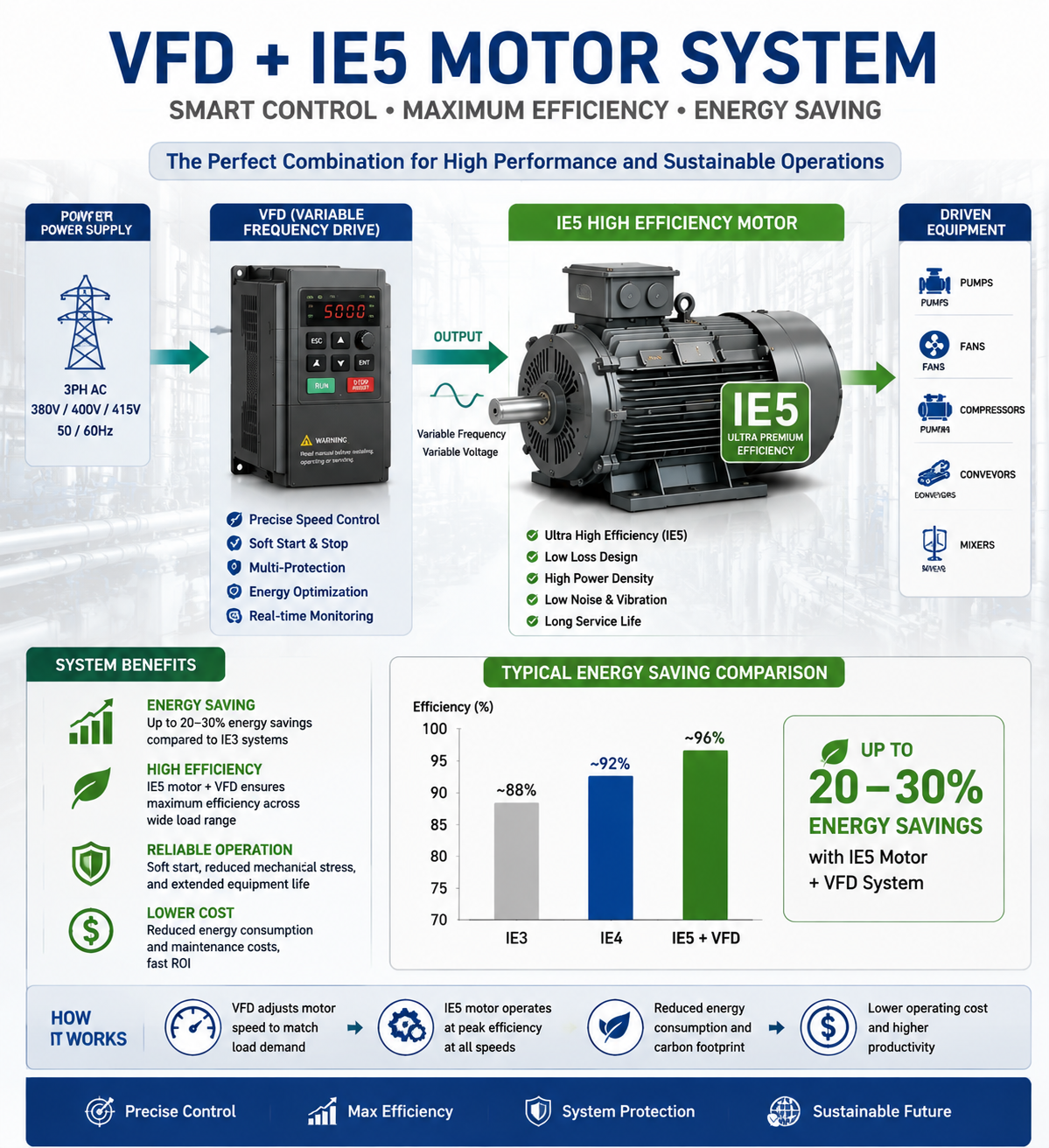

7. The Role of VFD in High Efficiency Motor Upgrades

Modern motor upgrades usually combine:

• High efficiency motor

• Variable frequency drive

• Intelligent control system

7.1 Energy Optimization

Adjusting Motor Speed According to Demand

Benefits:

• Reduced unnecessary energy consumption

• Improved system efficiency

7.2 Improved System Reliability

Benefits:

• Lower mechanical stress

• Reduced maintenance

8. How Huima Technology Supports Industrial Motor Upgrades

Huima Technology provides:

• SynRM motors

• PMSM motors

• IE3-IE5 efficiency solutions

8.1 Customized Replacement Solutions

Motor Dimension Matching

Support:

• Frame size

• Mounting type

• Shaft design

8.2 Application Engineering Support

Complete Motor Selection Assistance

Including:

• Power calculation

• Torque matching

• VFD compatibility

9. Conclusion: The Future of Industrial Motors Is High Efficiency

The industrial motor market is moving from traditional induction technology toward advanced synchronous motor solutions.

SynRM and PMSM technologies provide:

SynRM:

• Magnet-free design

• High efficiency

• Stable lifecycle cost

PMSM:

• High torque density

• Compact structure

• Excellent performance

For companies seeking:

• Lower energy costs

• Higher efficiency

• Sustainable production

upgrading to IE5 SynRM and PMSM motors is becoming an important strategy.

Huima Technology provides customized high efficiency SynRM and PMSM motor solutions for global industrial applications.

10. Frequently Asked Questions (FAQ)

Q1: Why are industries replacing induction motors?

Industries are upgrading because high-efficiency motors reduce energy consumption, operating costs, and carbon emissions.

Q2: Can SynRM replace induction motors?

Yes. SynRM motors can replace many induction motors, especially in pumps, fans, compressors, and other variable-speed applications.

Q3: Is PMSM more efficient than induction motors?

Yes. PMSM generally achieves higher efficiency because permanent magnets eliminate rotor excitation losses.

Q4: Which is better, SynRM or PMSM?

SynRM is ideal for energy-saving and cost-stable applications, while PMSM is better when high torque density and compact design are required.

Q5: Are IE5 motors worth the investment?

For equipment operating many hours per year, IE5 motors can provide significant lifecycle cost savings.
