Electric motors are indispensable in modern life—powering everything from bathroom hair dryers and campus electric scooters to large-scale industrial car-building machinery. Among a motor’s many components, the permanent magnet (PM) acts as its “power core”: it dictates the motor’s strength, size, lifespan, and cost. For engineering sophomores or newcomers to motor design, selecting the right magnet material doesn’t require memorizing complex formulas—it’s about understanding which material fits specific application scenarios.
Unlike rigid technical textbooks, this article uses simple language, relatable examples, and visual aids (tables and mind maps) to simplify magnet selection. We focus on “real-world applicability” rather than abstract theory, ensuring you can confidently choose the right magnet for your next project—whether it’s a DIY robot or a small household appliance.
Before delving into specific materials, let’s answer a basic question: How do magnets make motors spin? The principle is surprisingly straightforward!
Every motor has two core components:
The stationary part with wire coils. When electricity flows through these coils, they generate a moving magnetic field.
The rotating part (the spinning shaft you can see). Permanent magnets attached to the rotor create a fixed magnetic field.
The attraction and repulsion between these two magnetic fields (one from the stator, one from the rotor) drive the rotor to spin, converting electrical energy into mechanical motion. Think of it like playing with two magnets as a kid: opposite poles pull each other, same poles push each other, and this push-pull motion gets things moving!
Not all magnets are created equal. The material you choose impacts three key aspects of motor performance:
A strong magnet can make a tiny motor highly powerful (like the one in your wireless earbuds). A weak magnet forces the motor to be larger to deliver the same output.
Can the magnet retain strength in heat (e.g., near a car engine) or rain (e.g., an outdoor fan)?
Some magnets are affordable enough for toys, while others are so expensive they’re only used in space rockets.

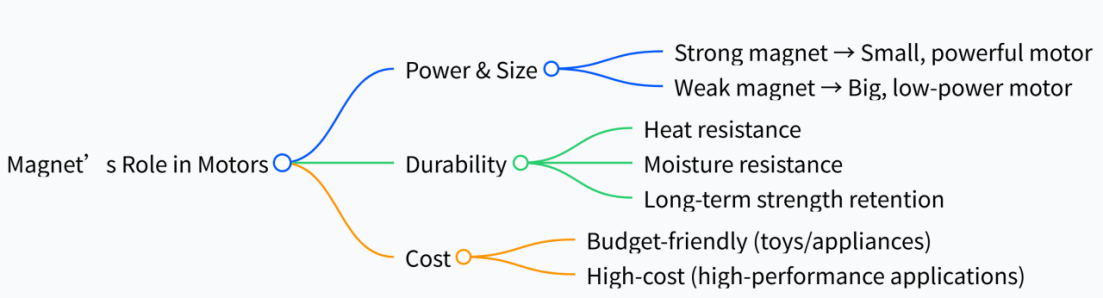

To visualize this, refer to the simple mind map below:
Before comparing materials, let’s learn 5 basic properties that matter for motor design. No complicated jargon—just the essentials to make an informed choice:
Property | Simple Explanation | Why It Matters for Motors |
Magnetic Energy Product (BHmax) | A measure of a material’s “magnetic power” (in MGOe). Think of it as a magnet’s “muscle mass.” | Higher values mean a smaller motor can produce more power. A 50 MGOe magnet is far stronger than a 5 MGOe one. |
Temperature Tolerance | The maximum temperature a magnet can withstand without losing strength. | Motors in hot environments (e.g., under a car hood) need magnets that don’t weaken in heat. |
Corrosion Resistance | Whether the magnet rusts or degrades when exposed to water/moisture. | Outdoor motors (e.g., garden pumps) need magnets that can handle rain or humidity. |
Coercivity | A magnet’s resistance to “demagnetization” (losing strength from other magnets or electrical spikes). | Motors that start/stop frequently (e.g., power drills) need high coercivity to stay strong. |
These properties are like a magnet’s “resume”—they reveal its strengths and limitations. Now let’s explore the four most common magnet materials used in motors.
Four main magnet materials dominate modern motor design. Each has a distinct “personality”—some are cheap and durable, others are compact and powerful. Below is a detailed breakdown, perfect for sophomore-level understanding, with relatable examples:
Alnico (short for aluminum-nickel-cobalt) is one of the oldest magnet materials—think of it as the “grandpa” of magnets. It’s made by mixing aluminum, nickel, cobalt, and a small amount of iron, then heating it to bond the metals (a process called “sintering”).
It can withstand temperatures up to 540°C (hotter than a pizza oven!). Other magnets would melt or lose strength here.
It doesn’t have the strongest magnetic pull, but it retains strength for decades. An Alnico motor from the 1970s might still work perfectly today!
Due to its low power density, Alnico motors must be larger to match the power of stronger magnets. A small Alnico motor is roughly the size of your fist.
• Industrial oven motors (they operate at 400°C—Alnico doesn’t mind!).
• Engine sensors in cars (installed near the hot engine block).
• Vintage car motors (restorers use Alnico to preserve the original design).
• Portable devices (e.g., laptops, drones)—it’s too large and heavy.
• High-speed motors (e.g., electric bike hubs)—it can’t keep up with power demands.
Ferrite (also called “ceramic” magnets) is the most widely used magnet material globally, thanks to its low cost and durability. It’s made by mixing iron oxide (yes, rust!) with metals like strontium, pressing the mixture into shape, and firing it like pottery.
It’s 10–20 times cheaper than rare-earth magnets, making it ideal for low-cost appliances.
It doesn’t corrode—you can dip it in water and it won’t rust. Perfect for outdoor use!
It’s stronger than Alnico but weaker than neodymium. A ferrite motor needs to be bigger to match a neodymium motor’s power.
• Household appliances: Blenders, washing machines, ceiling fans (your $50 fan almost certainly uses ferrite magnets).
• Toy motors: Remote-control cars, robotic kits (the $10 toy car relies on ferrite to stay budget-friendly).
• Outdoor tools: Garden pumps, patio fans (they handle rain and humidity effortlessly).
• Compact, high-power motors (e.g., laptop fans, electric vehicle traction motors)—it would make the motor overly bulky.
• High-performance tools (e.g., cordless drills)—it can’t generate enough torque.
SmCo is the “luxury” magnet—made from rare-earth metals samarium and cobalt, it’s expensive but unbeatable in harsh conditions. Think of it as the “mountain climber” of magnets: it thrives where others struggle.
Far more powerful than Alnico or ferrite, so small SmCo magnets can power large motors.
It withstands temperatures up to 300°C and doesn’t rust—no protective coating needed.
15–25 times pricier than ferrite. Only used when performance takes priority over cost.
• Aerospace: Satellite motors (operating in extreme heat/cold in space).
• Military: Drone propulsion systems, missile guidance (reliability in harsh conditions is non-negotiable).
• Precision tools: Medical devices (e.g., MRI machines), high-speed lathes (failure is not an option).
• Consumer products (e.g., fans, toys)—it would make them prohibitively expensive.
• Low-power applications (e.g., small desk fans)—you’d pay for performance you don’t need.
Neodymium (short for neodymium-iron-boron) is the most popular high-performance magnet. It’s the strongest per cubic centimeter—think of it as the “sprinter” of magnets: small, fast, and powerful.
Up to 10 times stronger than ferrite. A neodymium magnet the size of a coin can lift 10 pounds (≈4.5 kg)—that’s why it’s used in electric cars!
Can be manufactured into tiny, complex parts (thin discs, custom rings) for compact devices.
Rusts easily (needs a nickel or epoxy coating) and weakens above 150°C.
• Electric vehicles: Traction motors (powering the wheels—Tesla uses neodymium magnets!).
• Consumer electronics: Phone vibrators, laptop fans, wireless headphones (your AirPods have tiny neodymium magnets).
• Renewable energy: Wind turbine generators (strong magnets are needed to convert wind into electricity).
• High-heat environments (e.g., industrial ovens)—it loses strength quickly.
• Rough-use tools (e.g., construction drills)—it’s brittle and can crack if dropped.
• Budget projects (e.g., DIY garden pumps)—it’s too expensive.
Material | Strength (MGOe) | Max Temp | Corrosion | Cost | Best For | Fun Example |
Alnico | 3–7 | 540°C | Moderate | Medium | High-heat motors | Industrial oven motor |
Ferrite | 3–5 | 200°C | Excellent | Low | Household appliances/toys | Ceiling fan, toy RC car |
SmCo | 15–30 | 300°C | Excellent | High | Aerospace/precision tools | Satellite motor, MRI machine |
Neodymium | 20–52 | 150°C | Poor | Med-High | Small, powerful motors (EVs/electronics) | Electric car traction motor, phone vibrator |
Neodymium magnets aren’t one-size-fits-all—their manufacturing process affects strength and flexibility. For custom motors (e.g., 3D printer parts, medical devices), here are three common variations.
Grind neodymium, iron, and boron into powder, press into shape, and heat to bond (sintering).
The strongest neodymium magnet (up to 52 MGOe), but limited to simple shapes (tiles, discs).
High-power motors (electric car traction systems, wind turbines) where strength is paramount.
Mix neodymium powder with plastic/rubber binder, then inject into molds.
Can be shaped into complex parts (gears, tiny shafts), less brittle than sintered neodymium, but weaker (up to 12 MGOe).
Precision motors (camera autofocus, medical pumps) where shape matters more than absolute strength.
Mix neodymium powder with plastic, inject into molds (like plastic toys).
Ultra-complex shapes (can be molded directly onto motor shafts), low strength (up to 6.5 MGOe), saves assembly time.
Step motors (3D printers, office printers) where precise, custom parts are essential.
The table below summarizes the differences:
Neodymium Type | Strength (MGOe) | Shape Flexibility | Best For |
Sintered | 20–52 | Low (simple shapes) | High-power motors |
Bonded | 5–12 | Medium (complex parts) | Precision motors |
Injection-Molded | 3–6.5 | High (ultra-custom) | Step motors/custom designs |
Now that you know about the materials, let’s walk through a simple 5-step process to choose the right one for your project. Perfect for sophomores, this method works for any motor design.
Start by asking: What will the motor do?
• Example 1: A laptop fan → needs to be tiny and lightweight → neodymium (bonded or sintered).
• Example 2: A toy car motor → needs to be affordable → ferrite.
• Example 3: An industrial oven motor → needs heat resistance → Alnico or SmCo.
• If size/weight is critical (e.g., laptop, drone): Choose neodymium or SmCo (high power density = small size).
• If size doesn’t matter (e.g., industrial pump): Choose ferrite or Alnico (cheaper, bulkier).
•
Hot (＞150°C) → Alnico/SmCo; normal (0–100°C) → ferrite/neodymium.
Wet (outdoor/marine) → ferrite/SmCo; dry (indoor) → any material (neodymium needs coating).
Rough use (e.g., drills) → ferrite/Alnico (tough); gentle use (e.g., phones) → neodymium.
• Low budget (＜$20 motor): Ferrite (only practical option).
• Medium budget (
100): Bonded neodymium.
• High budget ($100+): Sintered neodymium or SmCo.
Build a small prototype and test it! Ask:
• Does it deliver enough power?
• Is it the right size/weight?
• Does it hold up in its intended environment?
If it’s too weak: Upgrade from ferrite to bonded neodymium.
If it overheats: Switch from neodymium to SmCo.
If it’s too expensive: Downgrade from SmCo to bonded neodymium.
Suppose you’re designing a motor for a portable electric scooter (budget: $50, size: small, environment: outdoor).
• Step 1: Purpose → Power the scooter (needs torque + small size).
• Step 2: Size → Small/lightweight (high power density required).
• Step 3: Environment → Outdoor (moisture, mild heat) → neodymium with coating.
• Step 4: Budget → $50 → bonded neodymium (cheaper than sintered).
• Step 5: Test → If torque is low, upgrade to sintered neodymium (add $10 to budget).
Result: Bonded neodymium magnet → small, powerful, and affordable!
• A neodymium magnet the size of a marble can lift a metal can—imagine its power in a motor!
• Ferrite magnets are in nearly every household appliance—you probably have 10+ in your home right now.
• Alnico magnets were used in old radios—they’re why vintage radios are bulky but still functional.
• SmCo magnets survive in space, enduring temperatures from -150°C to 200°C.
These facts aren’t just entertaining—they help you remember which magnet to use for different jobs!
Choosing the right magnet material for an electric motor isn’t about picking the “strongest” option—it’s about finding the one that fits your project’s needs.
To recap:
Cheap, rust-proof, and perfect for appliances/toys.
Heat-resistant and reliable for high-temperature tasks.
Compact, powerful, and ideal for EVs/electronics (just add a protective coating!).
A luxury choice for extreme conditions (aerospace/precision tools).
By following the 5-step guide and using visual aids (mind map, tables), you can make the right choice every time—no complex formulas or advanced physics needed.
Whether you’re building a toy, a DIY robot, or a small electric car, the right magnet will make your motor work better, last longer, and fit perfectly. Remember: the best magnet material is the one that solves your problem—nothing more, nothing less!
