Introduction: Understanding Permanent Magnet Synchronous Motors
A Permanent Magnet Synchronous Motor (PMSM) is a high-efficiency AC motor that uses permanent magnets embedded in or mounted on the rotor to generate a constant magnetic field.
Unlike induction motors, PMSM motors do not require rotor current to create magnetic flux. The interaction between the rotor permanent magnetic field and the rotating magnetic field generated by the stator produces continuous synchronous rotation.
Because of their high efficiency, excellent speed control capability, and high torque density, PMSM motors are widely used in:
Industrial equipment
Pumps
Fans
Compressors
Automation systems
Energy-efficient motor applications
Modern PMSM technology has become one of the most important solutions for achieving IE4 and IE5 high efficiency motor performance.
Table of Contents
A PMSM is a synchronous motor that uses permanent magnets to create rotor excitation.
The main difference compared with conventional motors is:
The rotor contains permanent magnets
Rotor magnetic field is generated without electrical current
Rotor rotates at the same speed as the stator magnetic field
The word "synchronous" means:
The rotor speed is synchronized with the rotating magnetic field produced by the stator.

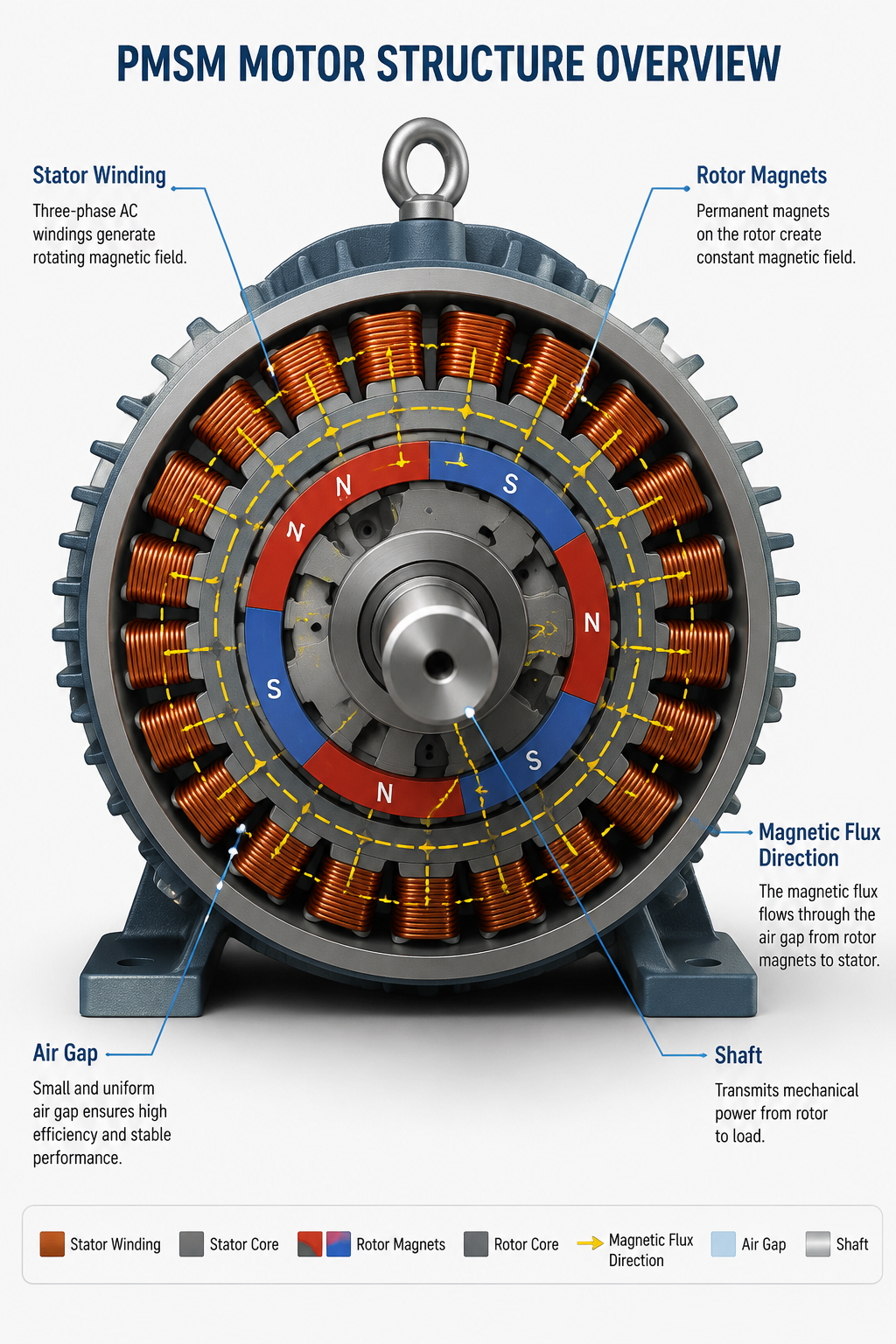

A PMSM mainly consists of:
The stator contains:
Three-phase windings
Laminated steel core
Electromagnetic field generation system
The rotor contains:
Permanent magnets
Magnetic flux paths
Mechanical support structure
Common materials include:
Neodymium iron boron (NdFeB)
Ferrite magnets

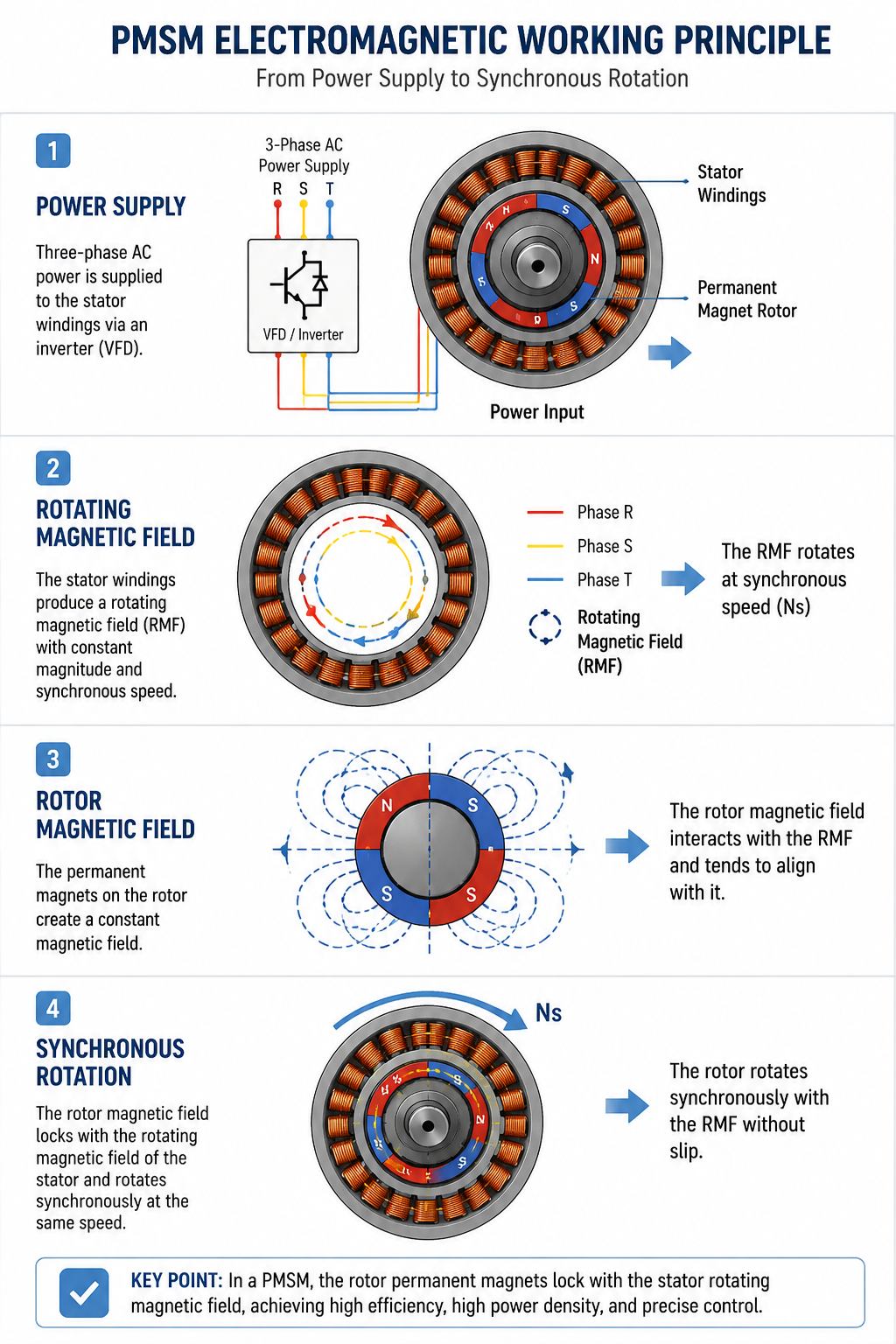

The operating principle of PMSM is based on electromagnetic interaction between:
Stator rotating magnetic field
Rotor permanent magnetic field
When three-phase AC power is supplied:
Current flows through stator windings
A rotating magnetic field is generated
The magnetic field rotates at synchronous speed
The synchronous speed depends on:
Supply frequency
Number of poles
The rotor permanent magnets create a constant magnetic field.
The rotor attempts to align with the stator magnetic field.
This produces:
Electromagnetic torque
Continuous rotation
Synchronous operation
During operation:
Rotor speed = rotating magnetic field speed
No slip occurs
Rotor losses are minimized
This is a major advantage compared with induction motors.
PMSM rotor design directly affects:
Torque output
Efficiency
Thermal performance
Cost

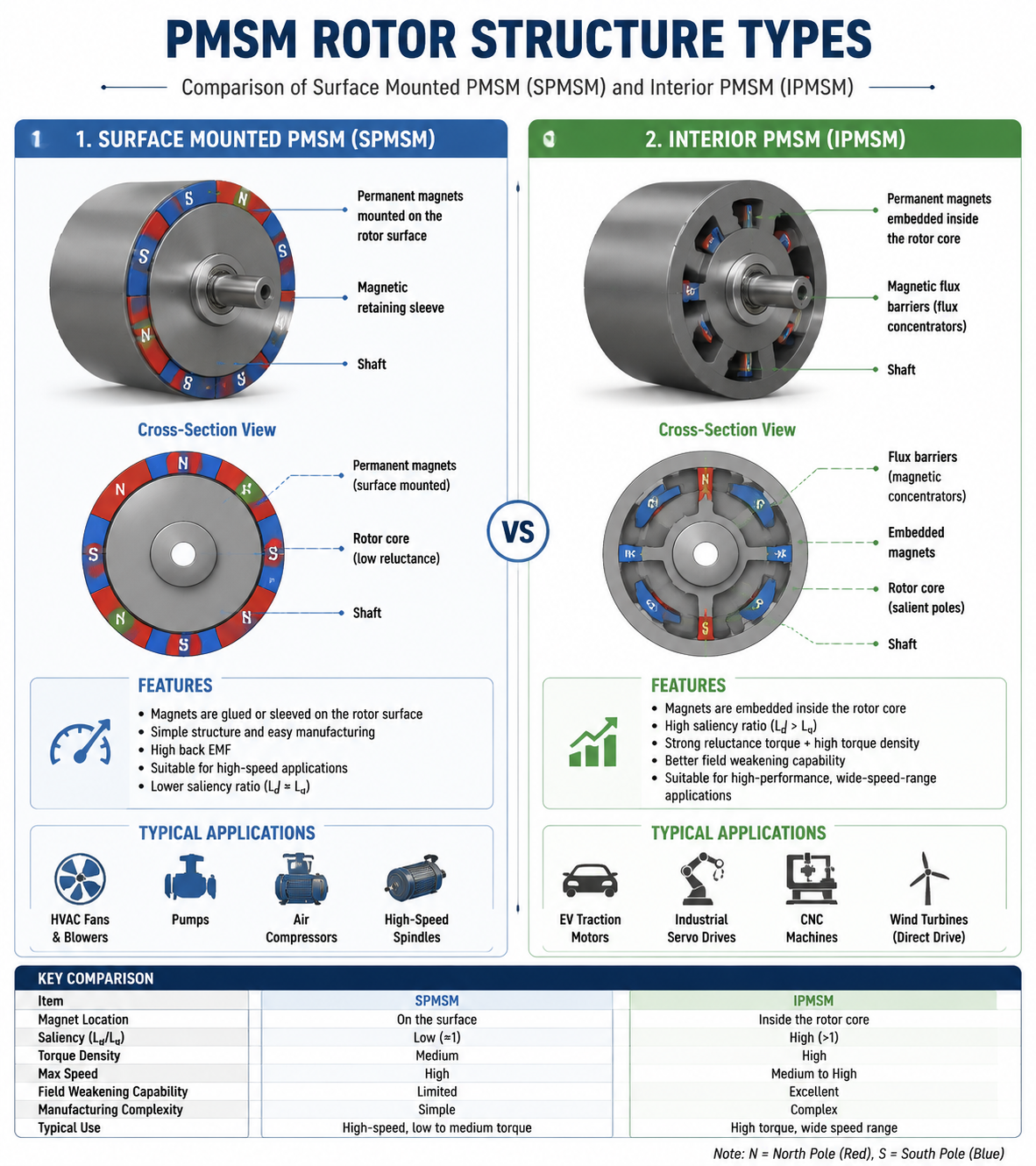

In SPMSM:
Magnets are mounted on the rotor surface.
Advantages:
Simple structure
High efficiency
Good high-speed performance
Applications:
Fans
Small industrial equipment
Precision systems
In IPMSM:
Magnets are embedded inside the rotor.
Advantages:
Higher mechanical strength
Higher torque density
Better field weakening capability
Applications:
Industrial drives
Compressors
High-performance systems

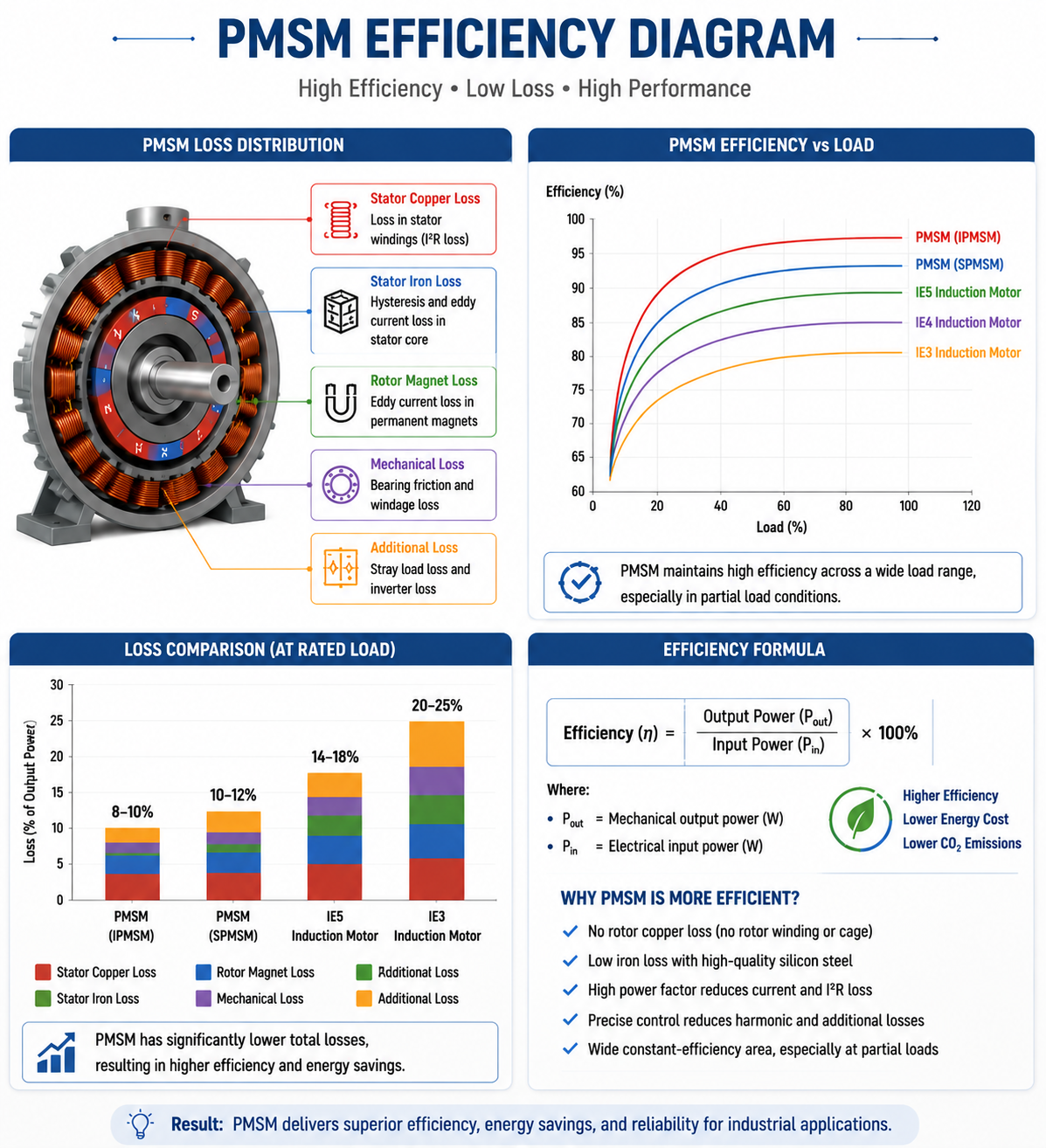

PMSM motors achieve high efficiency because:
Unlike induction motors:
No rotor current
No rotor electrical losses
Permanent magnets provide strong magnetic flux.
Benefits:
Smaller motor size
Higher torque output
Better performance

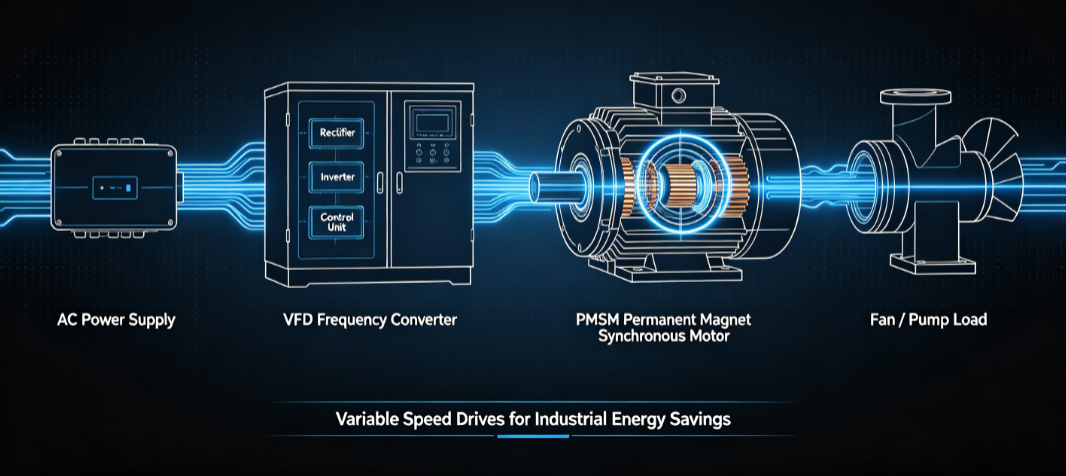

Combined with VFD control:
PMSM provides:
Accurate speed control
High dynamic response
High efficiency over wide speed range

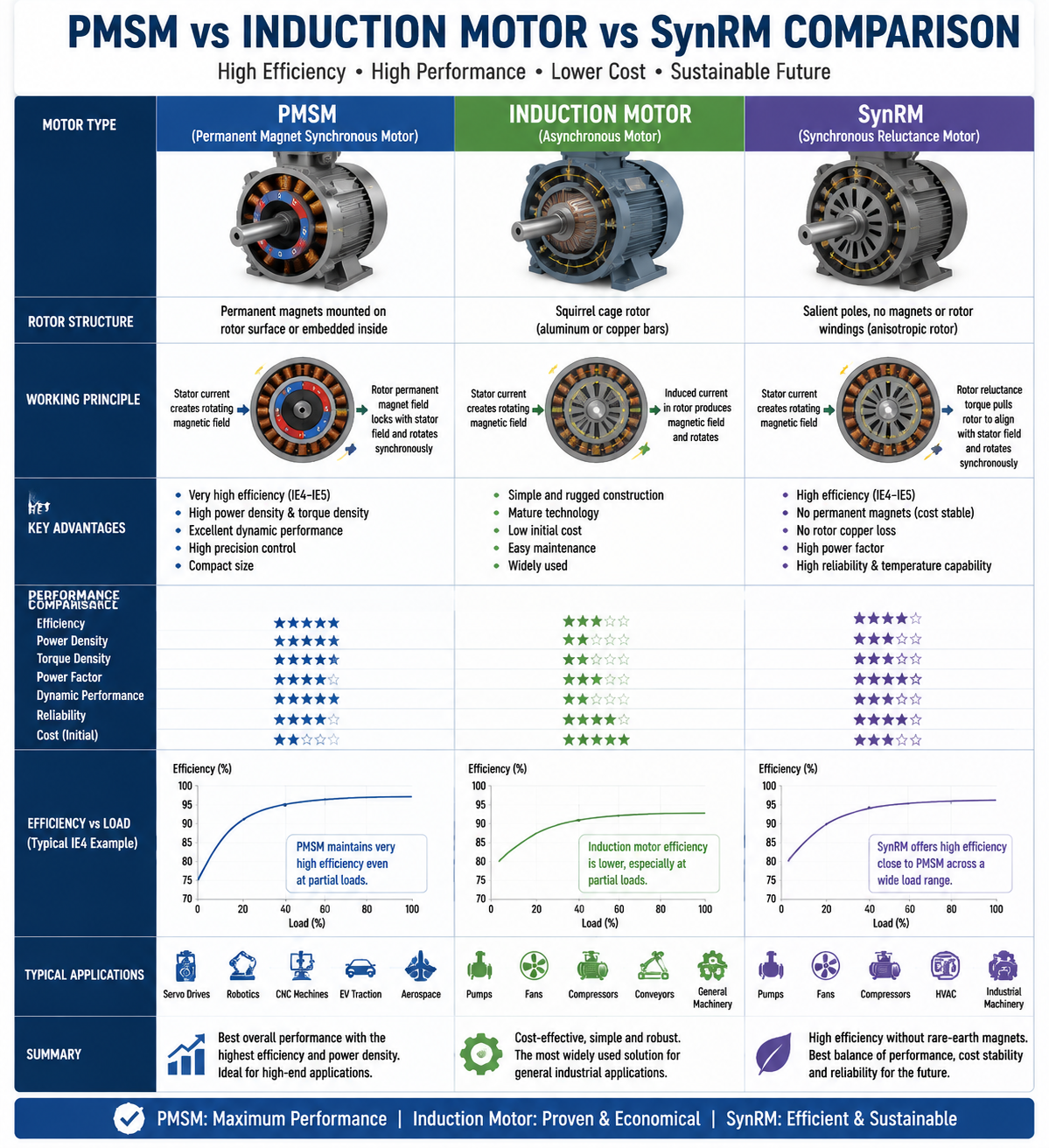

Feature | PMSM | Induction Motor |
|---|---|---|
Rotor Excitation | Permanent Magnet | Induced Current |
Slip | No | Required |
Rotor Loss | Very Low | Higher |
Efficiency | High | Medium |
Torque Density | High | Medium |
Compared with traditional induction motors, PMSM provides:
Higher efficiency
Better controllability
Higher torque density
Both PMSM and SynRM are advanced synchronous motor technologies.
Feature | PMSM | SynRM |
|---|---|---|
Torque Source | Permanent Magnet | Magnetic Reluctance |
Rare Earth Material | Required | Not Required |
Torque Density | Very High | High |
Efficiency | IE4-IE5 | IE4-IE5 |
Cost Stability | Medium | High |
PMSM advantages:
High efficiency
Compact structure
Variable speed capability
PMSM is widely used in compressors because of:
High torque density
Stable operation
Excellent efficiency
PMSM provides:
Fast response
Precise control
High-performance operation
PMSM motors usually operate with advanced drives.
Control technologies include:
Field-oriented control (FOC)
Vector control
Maximum torque per ampere control
PMSM technology provides:
Suitable for:
Continuous operation
Energy-saving projects
Suitable for:
Limited installation space
High-performance equipment
Suitable for:
Precision applications
Variable speed systems
Permanent Magnet Synchronous Motors (PMSM) represent one of the most advanced high-efficiency motor technologies available today.
With:
High efficiency
High torque density
Excellent speed control
Low operating losses
PMSM motors provide an effective solution for industries requiring compact, powerful, and energy-efficient motor systems.
Together with Synchronous Reluctance Motor (SynRM) technology, PMSM represents the future direction of high-efficiency industrial motors.
A PMSM is an AC synchronous motor that uses permanent magnets on the rotor to generate magnetic flux and produce torque.
A PMSM works through the interaction between the stator rotating magnetic field and the rotor permanent magnet field, causing synchronous rotation.
Yes. PMSM generally provides higher efficiency, lower losses, and better torque density compared with induction motors.
Most high-performance PMSM motors use rare earth magnets such as NdFeB, although alternative magnet technologies exist.
PMSM uses permanent magnets to generate rotor flux, while SynRM generates torque through magnetic reluctance without magnets.
Yes. PMSM motors are widely used in pumps, compressors, automation equipment, and energy-efficient industrial systems.
