Introduction: Why High Efficiency Motors Are Important for HVAC Systems
Heating, ventilation, and air conditioning (HVAC) systems are among the largest energy consumers in commercial buildings, industrial facilities, and infrastructure projects.
Within HVAC systems, motors used for:
Fans
Pumps
Air handling units
Cooling systems
often operate continuously for thousands of hours every year.
Therefore, improving motor efficiency has become one of the most effective ways to reduce:
Electricity consumption
Operating costs
Carbon emissions
Traditional induction motors are still commonly used in HVAC applications. However, increasing energy costs and stricter efficiency standards are driving the adoption of advanced motor technologies:
Both technologies can achieve IE4 and IE5 efficiency levels and provide significant energy-saving advantages for modern HVAC systems.
Table of Contents
HVAC systems consume a significant amount of electricity in commercial buildings, industrial facilities, and infrastructure projects.
Motor-driven equipment such as fans and pumps usually operates for thousands of hours every year.
Therefore, improving motor efficiency becomes a key strategy for reducing HVAC operating costs.
Traditional HVAC systems commonly use induction motors because of their:
Simple structure
Mature technology
Reliable operation
However, continuous operation creates several challenges.
Many HVAC motors operate:
8–24 hours per day
Throughout the year
Even a small efficiency improvement can generate significant energy savings.
HVAC systems rarely operate at full load.
Typical conditions include:
Reduced airflow demand
Seasonal cooling changes
Variable building occupancy
Motors with better partial-load efficiency can significantly reduce energy waste.

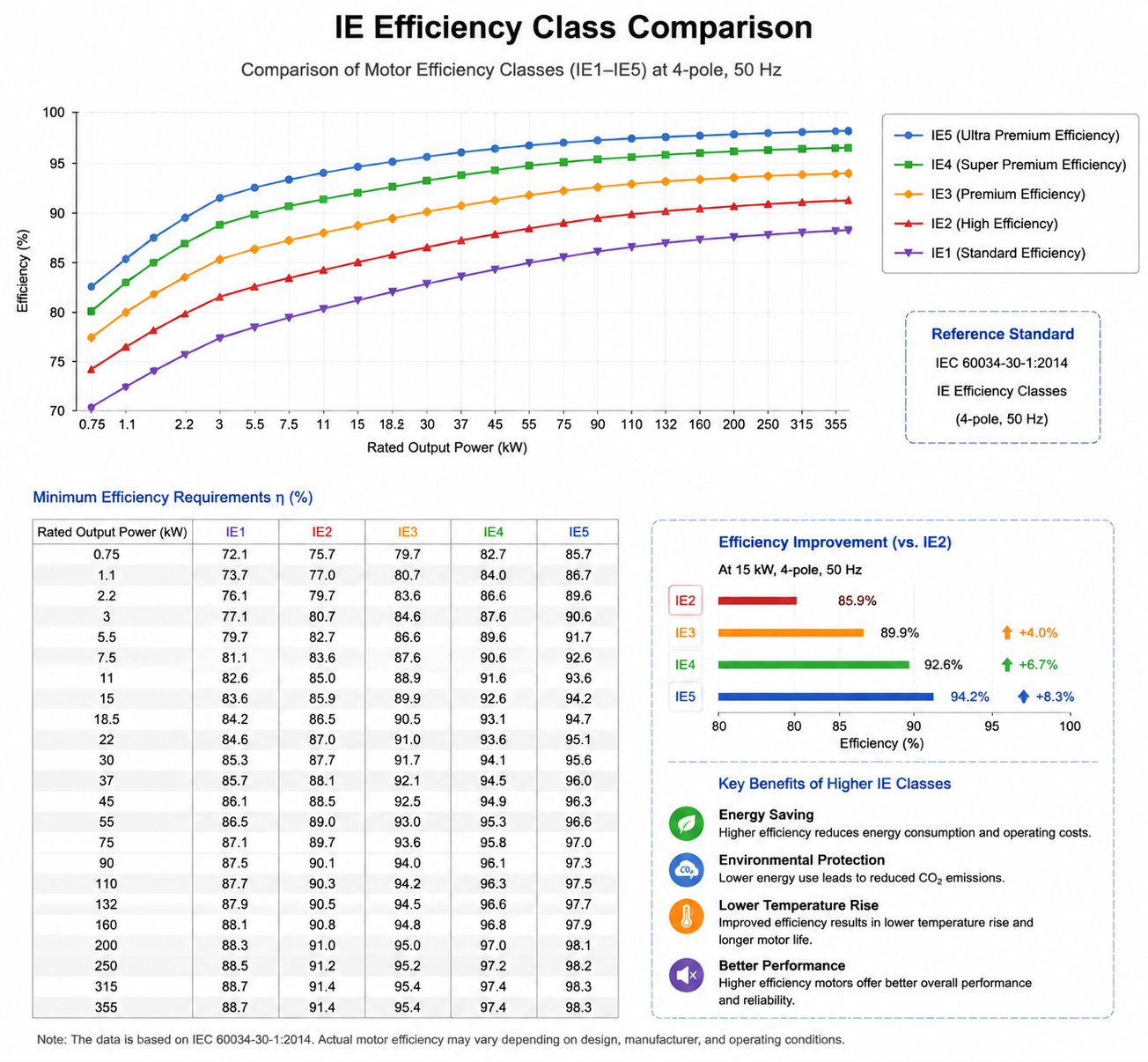

Global industries are moving toward:
IE4 motors
IE5 motors
Energy-saving HVAC solutions
High-efficiency motors help companies meet:
Energy regulations
Sustainability targets
Carbon reduction goals

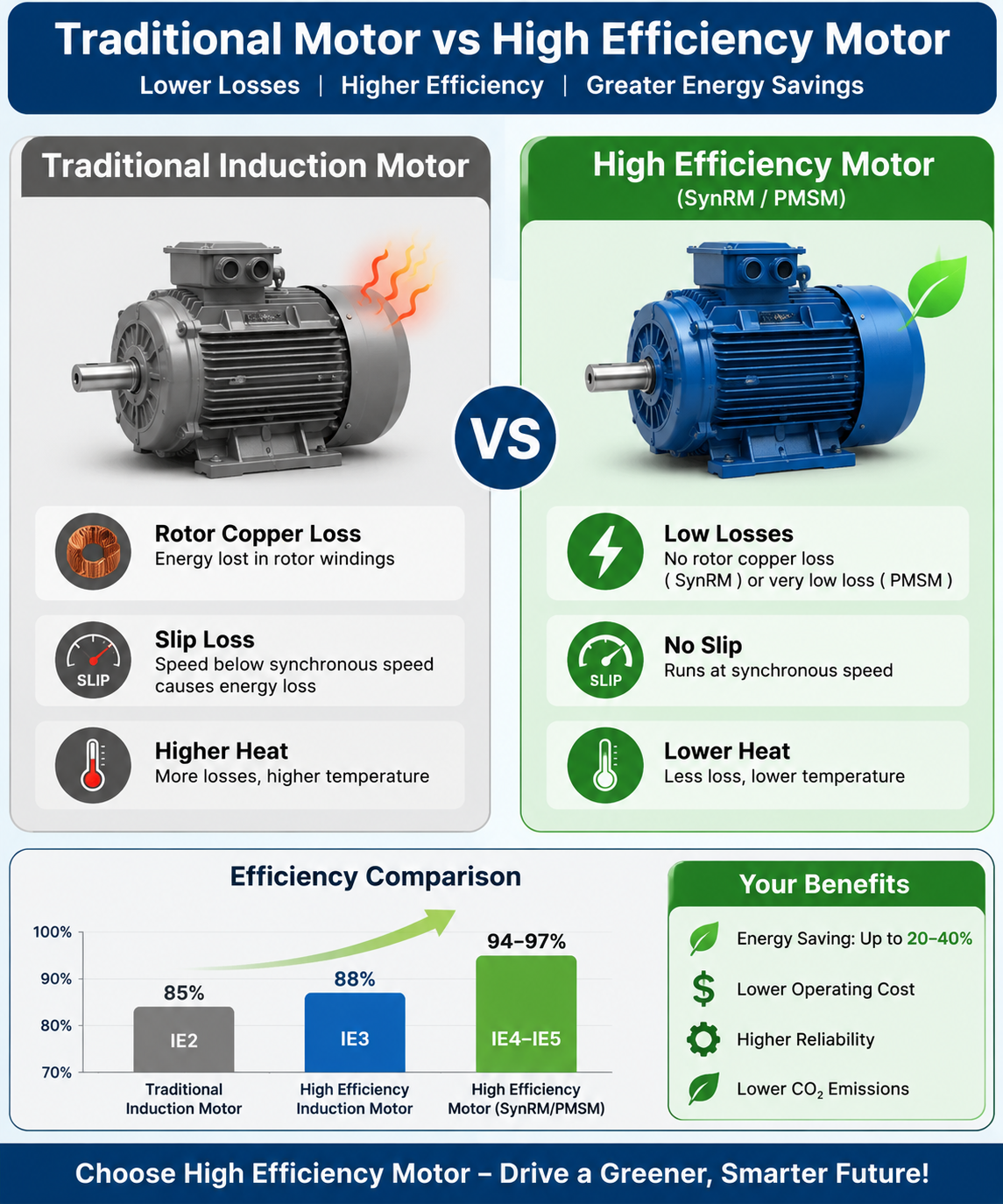

Induction motors remain widely used in HVAC applications.
However, their operating principle creates additional losses.
Induction motors require rotor current to generate magnetic fields.
This creates:
Rotor heating
Energy losses
Lower efficiency
Because induction motors operate with slip:
Rotor speed is lower than synchronous speed
Additional losses occur
When combined with VFD:
Traditional motors may experience:
Reduced efficiency
Increased losses at low speed
A Synchronous Reluctance Motor (SynRM) produces torque through magnetic reluctance without permanent magnets.
SynRM has become an attractive solution for energy-saving HVAC applications.
The SynRM rotor uses specially designed flux barriers.
Flux barriers create different magnetic paths:
Low reluctance axis
High reluctance axis
This generates reluctance torque without magnets.
Because SynRM has:
No rotor winding
No rotor bars
It achieves:
Lower temperature rise
Higher efficiency
Longer service life
HVAC fans usually have:
Long operating hours
Variable speed requirements
Large annual energy consumption
Fan systems often operate below maximum capacity.
SynRM maintains high efficiency during:
Low airflow demand
Night operation
Seasonal changes
Although motor purchase cost is important, HVAC customers focus more on:
Electricity cost
Maintenance cost
Long-term ROI
SynRM helps reduce total cost of ownership.
A Permanent Magnet Synchronous Motor (PMSM) uses permanent magnets to generate rotor magnetic flux.
Permanent magnets provide strong magnetic flux.
This allows:
Smaller motor dimensions
Higher output power
Space saving installation
PMSM is suitable for:
Compact air handling units
Advanced fan systems
High-performance cooling equipment
With VFD control:
PMSM provides:
Accurate airflow adjustment
Stable operation
Improved comfort control
PMSM maintains excellent efficiency during:
Low speed operation
Dynamic load changes
Variable airflow conditions

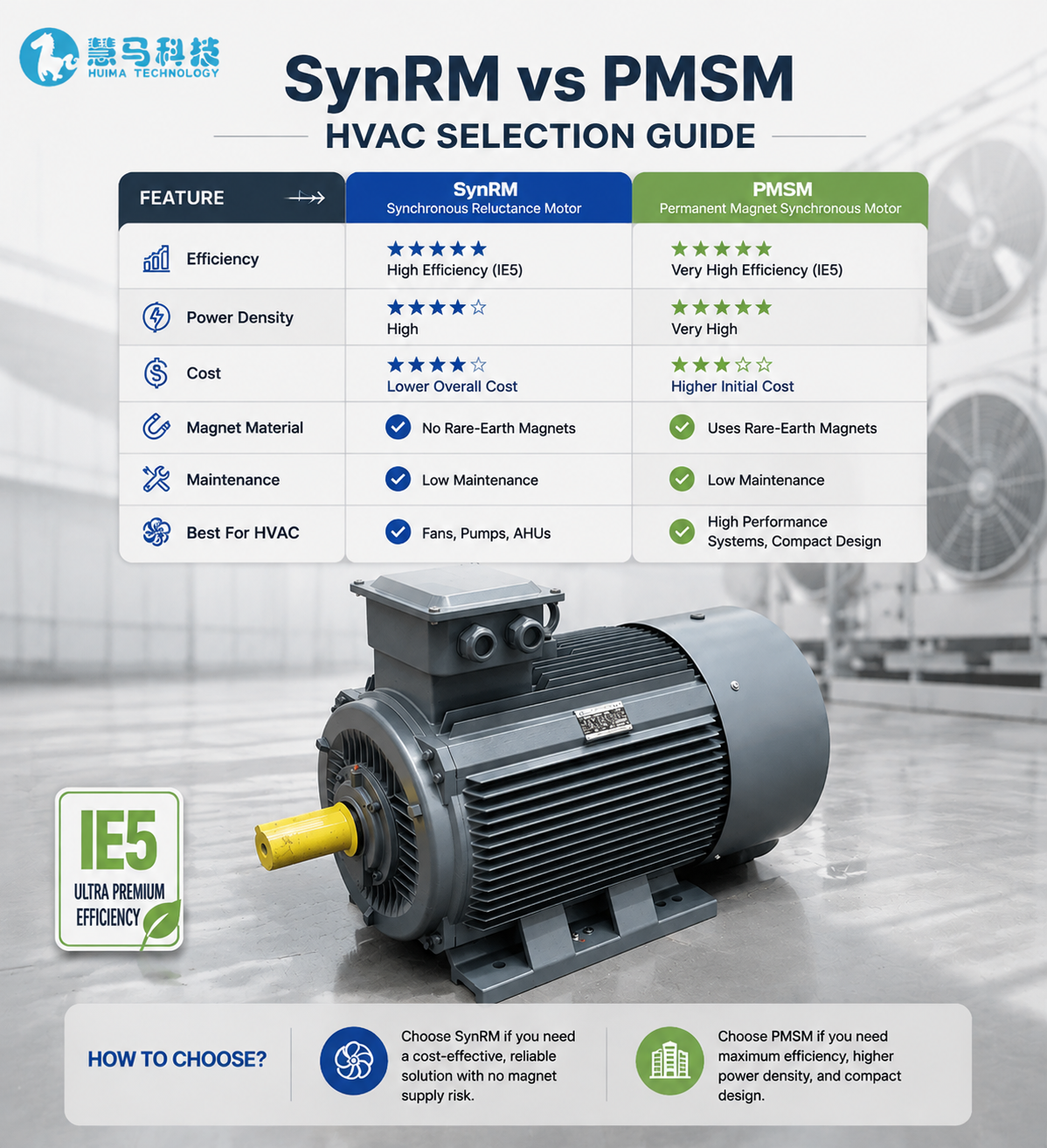

Comparison | SynRM | PMSM |
|---|---|---|
Efficiency | IE4-IE5 | IE4-IE5 |
Rotor Design | Flux barrier | Permanent magnet |
Magnet Material | None | Required |
Torque Density | High | Very High |
Cost Stability | Excellent | Medium |
Maintenance | Low | Low |
Recommended applications:
Industrial ventilation
Building HVAC fans
Air handling systems
Reason:
Long operating hours create large energy-saving potential.
SynRM is suitable for replacing:
Old induction motors
Low efficiency motors
Benefits:
Reduced electricity consumption
Fast payback
PMSM is suitable when:
Installation space is limited
Higher output is required
Applications:
Advanced cooling equipment
Precision HVAC systems
Characteristics:
Improved efficiency compared with standard motors
Widely adopted industrial solution
Benefits:
Lower energy losses
Better lifecycle economics
Advantages:
Maximum efficiency
Reduced carbon footprint
Future-oriented technology

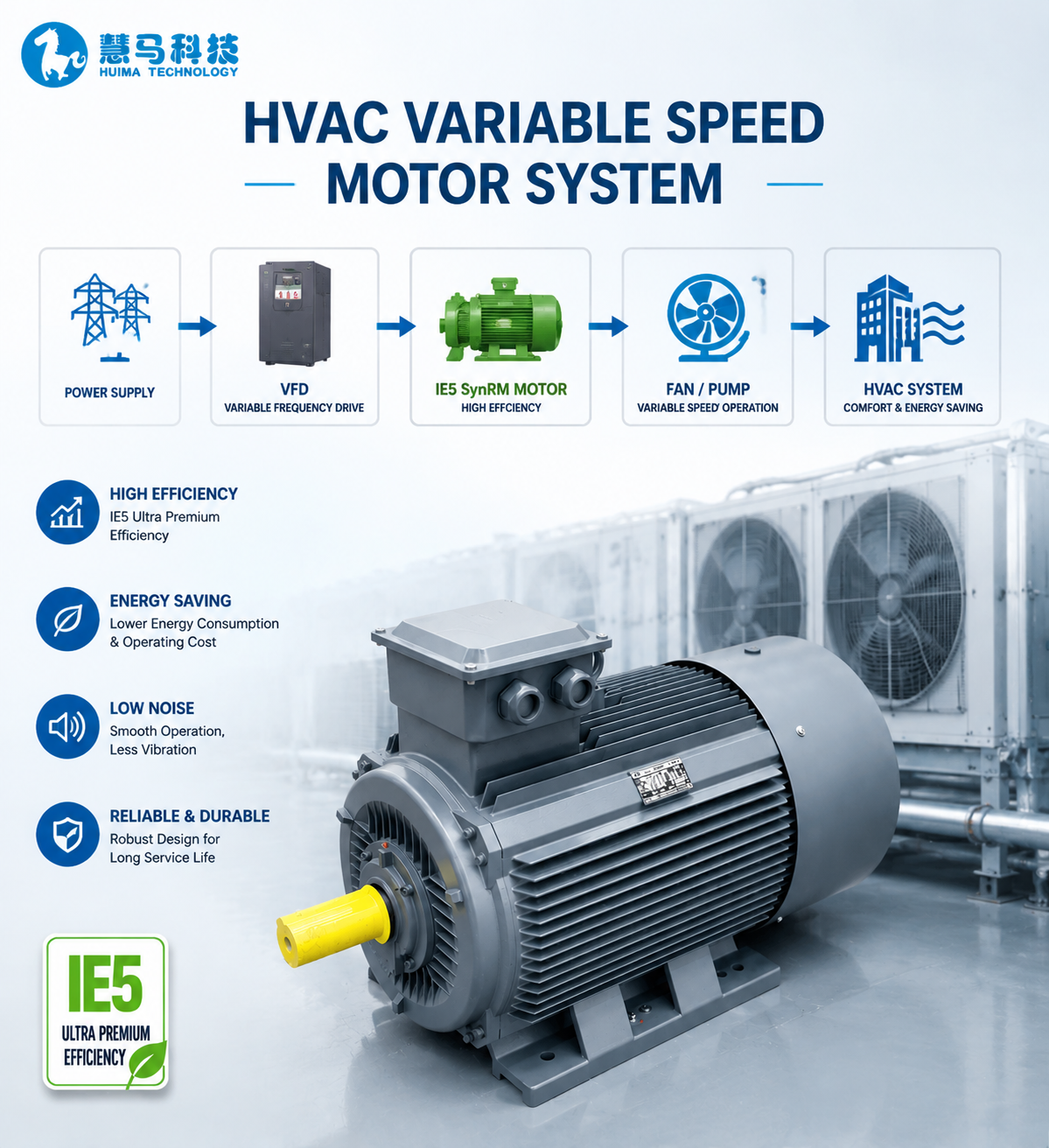

VFD controls:
Fan speed
Pump speed
Airflow
Compared with constant-speed operation:
Variable speed systems provide:
Better efficiency
Lower operating cost
Supporting:
IE3
IE4
IE5
Options:
Voltage
Mounting type
Cooling method
Shaft design
High-efficiency motors are becoming a critical component of modern HVAC energy-saving strategies.
Both SynRM and PMSM technologies provide advantages:
SynRM:
Magnet-free design
Excellent energy efficiency
Stable lifecycle cost
PMSM:
High torque density
Compact structure
Advanced control performance
By combining:
IE4/IE5 motors
VFD control
Intelligent HVAC systems
industries can achieve higher efficiency and lower operating costs.
Huima Technology provides customized SynRM and PMSM high efficiency motor solutions for global HVAC applications.
The best choice depends on application requirements. SynRM is suitable for energy-saving HVAC systems, while PMSM is ideal for compact and high-performance applications.
SynRM motors provide excellent efficiency during continuous operation and partial load conditions, making them suitable for HVAC fan systems.
Yes. PMSM motors generally achieve higher efficiency because permanent magnets eliminate rotor excitation losses.
Yes. IE5 motors reduce energy losses and can significantly lower electricity consumption in long-running HVAC applications.
