Introduction: Choosing the Right Motor for Industrial Compressor Systems
Industrial compressors are essential equipment in many industries, including:
Manufacturing
Chemical processing
Food and beverage
Oil and gas
Refrigeration
Pneumatic systems
Because compressors often operate continuously for long periods, the motor efficiency has a direct impact on:
Electricity consumption
Operating costs
System reliability
Carbon emissions
Traditional induction motors have been widely used in compressor systems due to their simple design and reliability.
However, with increasing energy costs and stricter efficiency requirements, more companies are adopting advanced synchronous motor technologies:
Both technologies provide high efficiency operation, but their advantages are different.
Choosing between SynRM and PMSM depends on:
Compressor type
Torque requirements
Operating speed
Installation conditions
Lifecycle cost expectations
Table of Contents
Compressors are among the most energy-intensive industrial machines.
In many facilities:
Compressors operate thousands of hours per year
Electricity cost represents the largest operating expense
Therefore, improving motor efficiency can significantly reduce total ownership cost.
Compressors require continuous mechanical power to:
Compress air
Maintain pressure
Support production processes
The motor efficiency directly affects:
Input power
Heat generation
Operating cost
For compressors running:
24 hours/day
365 days/year
Even a small efficiency difference can create significant annual savings.
Many compressors do not operate at full capacity all the time.
Typical conditions:
Pressure changes
Demand fluctuations
Variable production schedules
Motors with better partial-load efficiency provide better energy performance.

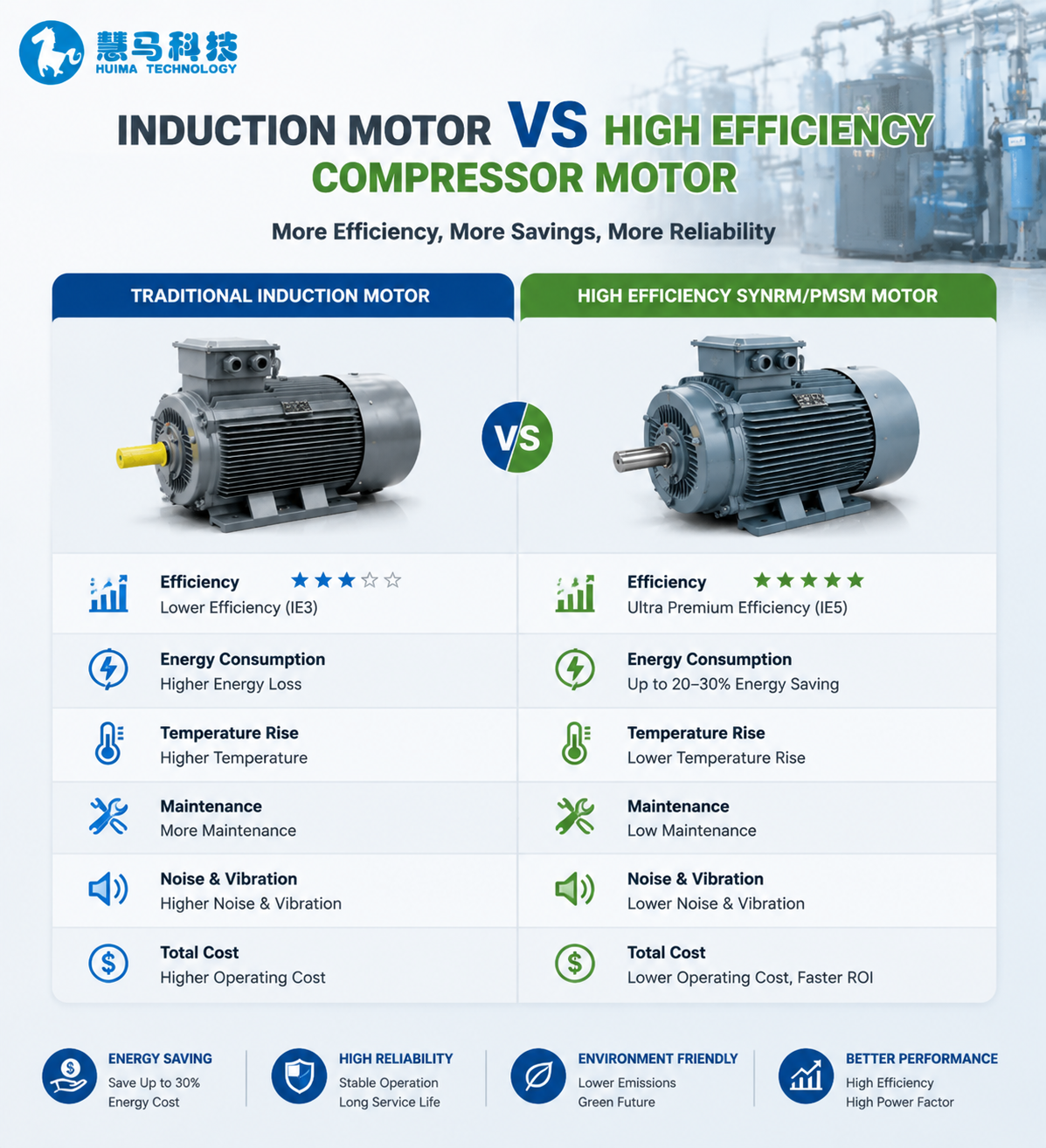

Induction motors are commonly used in compressors because they offer:
Simple structure
Low initial cost
Mature technology
However, they have several limitations.
Induction motors generate rotor current through electromagnetic induction.
Rotor current causes:
Copper loss
Temperature rise
Additional cooling requirements
Because of rotor losses:
Induction motors generally have:
Lower efficiency
Higher operating losses
A Synchronous Reluctance Motor (SynRM) generates torque through magnetic reluctance instead of permanent magnets.
SynRM is particularly suitable for compressors requiring:
High efficiency
Long operating hours
Stable operating costs
SynRM does not require:
Rare-earth magnets
Rotor excitation system
Benefits:
Stable material cost
Reduced supply chain risk
Because there is no rotor winding:
SynRM achieves:
Lower heat generation
Higher efficiency
Improved reliability

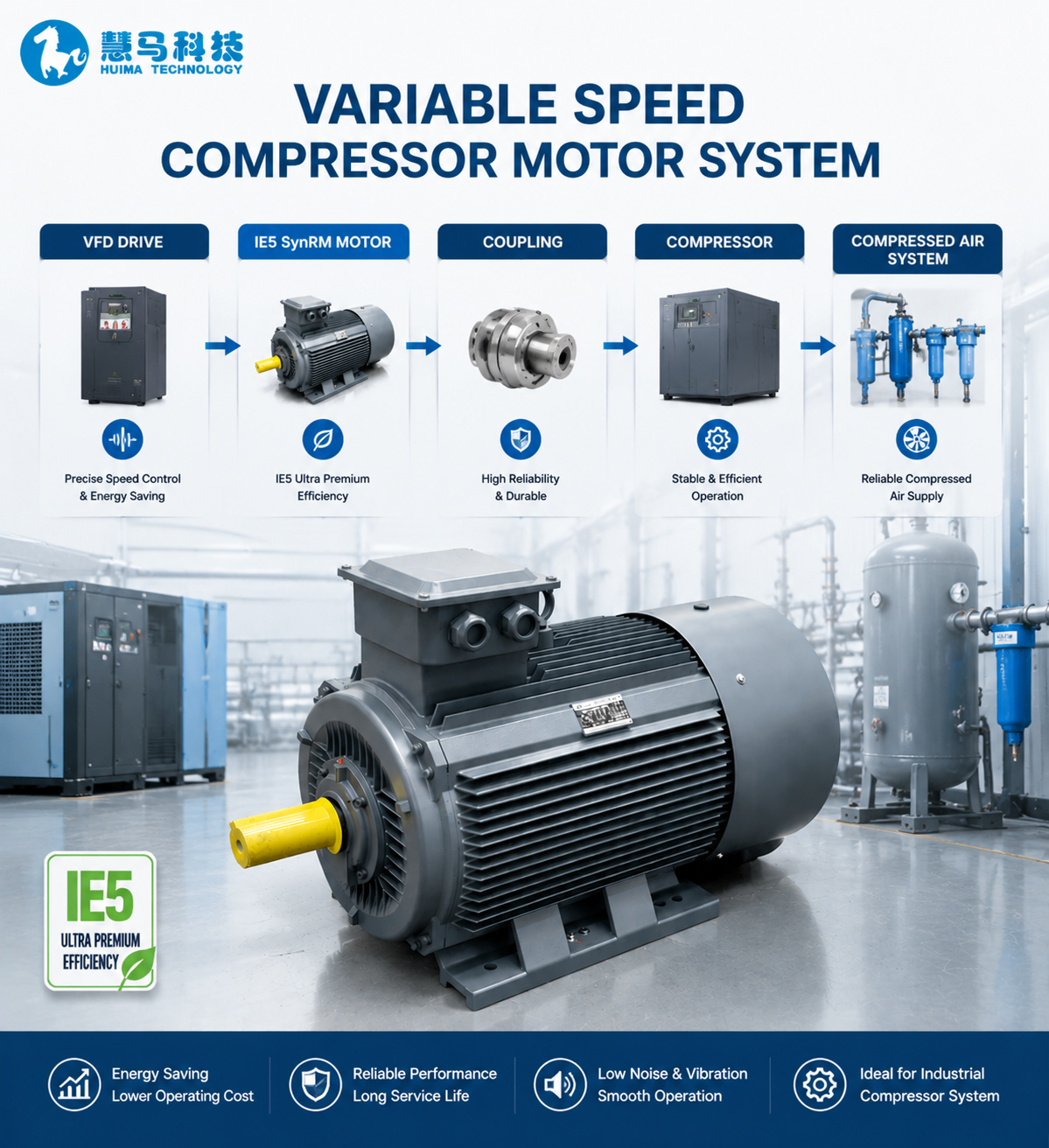

Modern compressors increasingly use VFD control.
SynRM performs well under:
Variable speed operation
Reduced compressor demand
Energy-saving modes
For long-running compressor systems:
Energy savings often exceed the initial motor investment.
A Permanent Magnet Synchronous Motor (PMSM) uses permanent magnets to create rotor magnetic flux.
PMSM is widely used in compressors requiring:
High torque density
Compact design
High-performance operation
PMSM provides:
Higher output power per size
Reduced installation space
Lightweight design
PMSM can provide:
High torque output
Fast acceleration
Stable operation
With VFD control:
PMSM enables:
Accurate compressor capacity adjustment
Improved efficiency
Suitable for:
Variable refrigeration systems
Advanced compressor applications

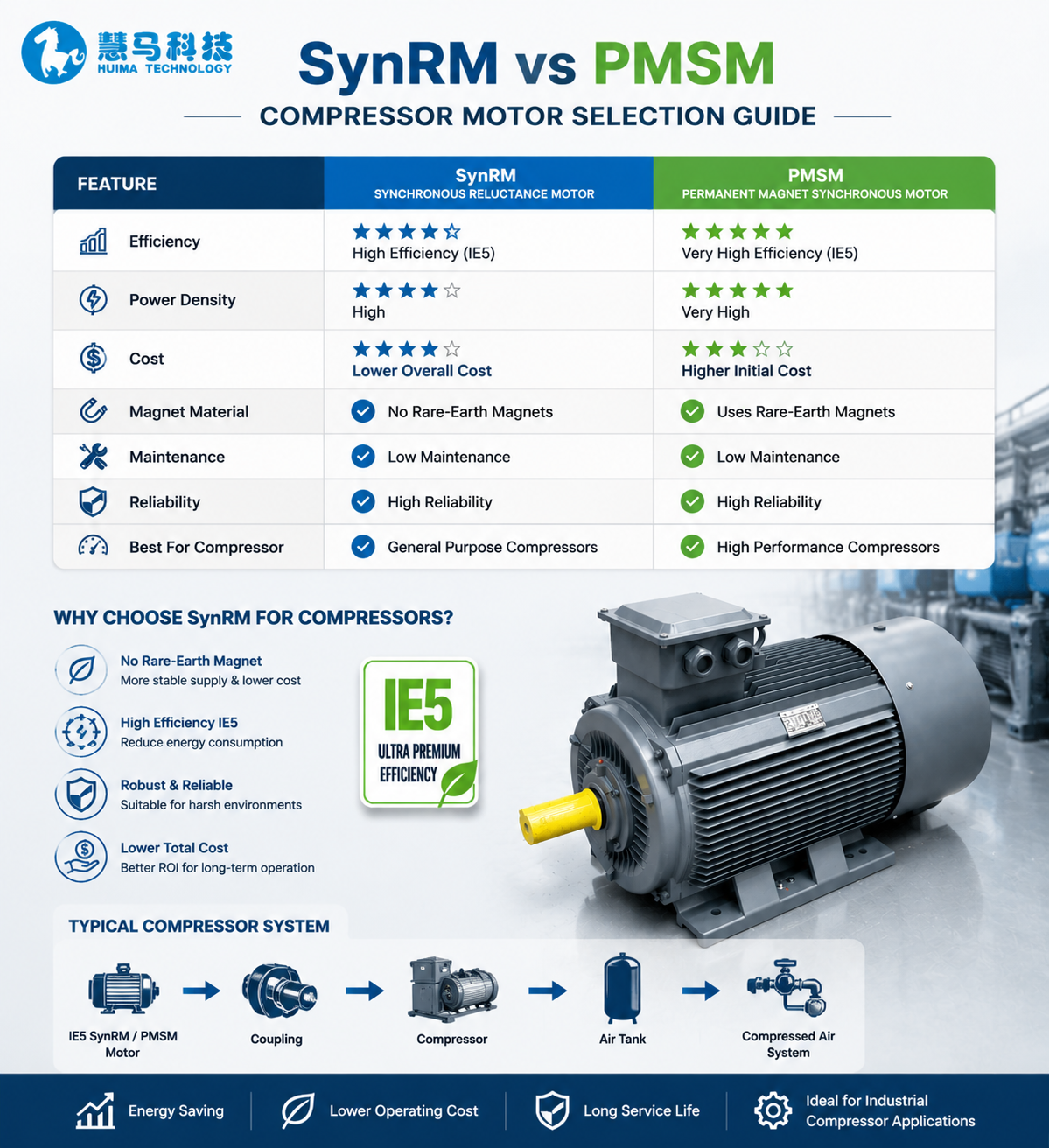

Feature | SynRM | PMSM |
|---|---|---|
Efficiency | IE4-IE5 | IE4-IE5 |
Rotor Design | Flux barrier | Permanent magnet |
Magnet Required | No | Yes |
Torque Density | High | Very High |
Cost Stability | Excellent | Medium |
High-Speed Performance | Good | Excellent |
Maintenance | Low | Low |
Recommended for:
Factory compressed air systems
Continuous production environments
Advantages:
Long operation time
Lower energy cost
Suitable when:
Energy efficiency is the priority
Lifecycle cost matters
Recommended when:
Space is limited
High output density is required
Suitable for:
Advanced refrigeration systems
Precision applications

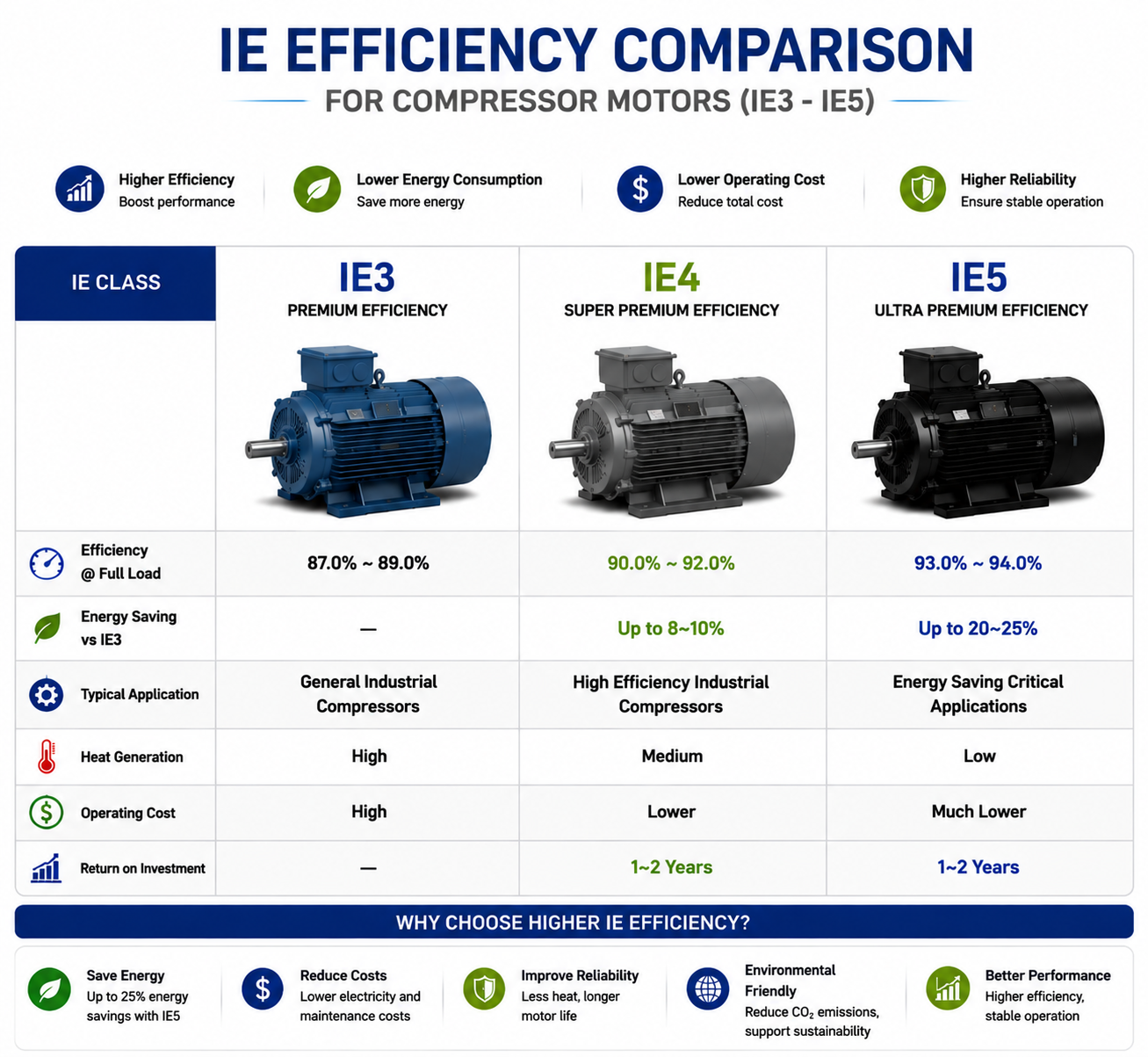

Modern compressor systems are moving toward:
IE4 motors
IE5 motors
IE4 motors reduce:
Electrical losses
Operating expenses
IE5 motors provide:
Ultra-high efficiency
Lower carbon footprint
Future-ready technology

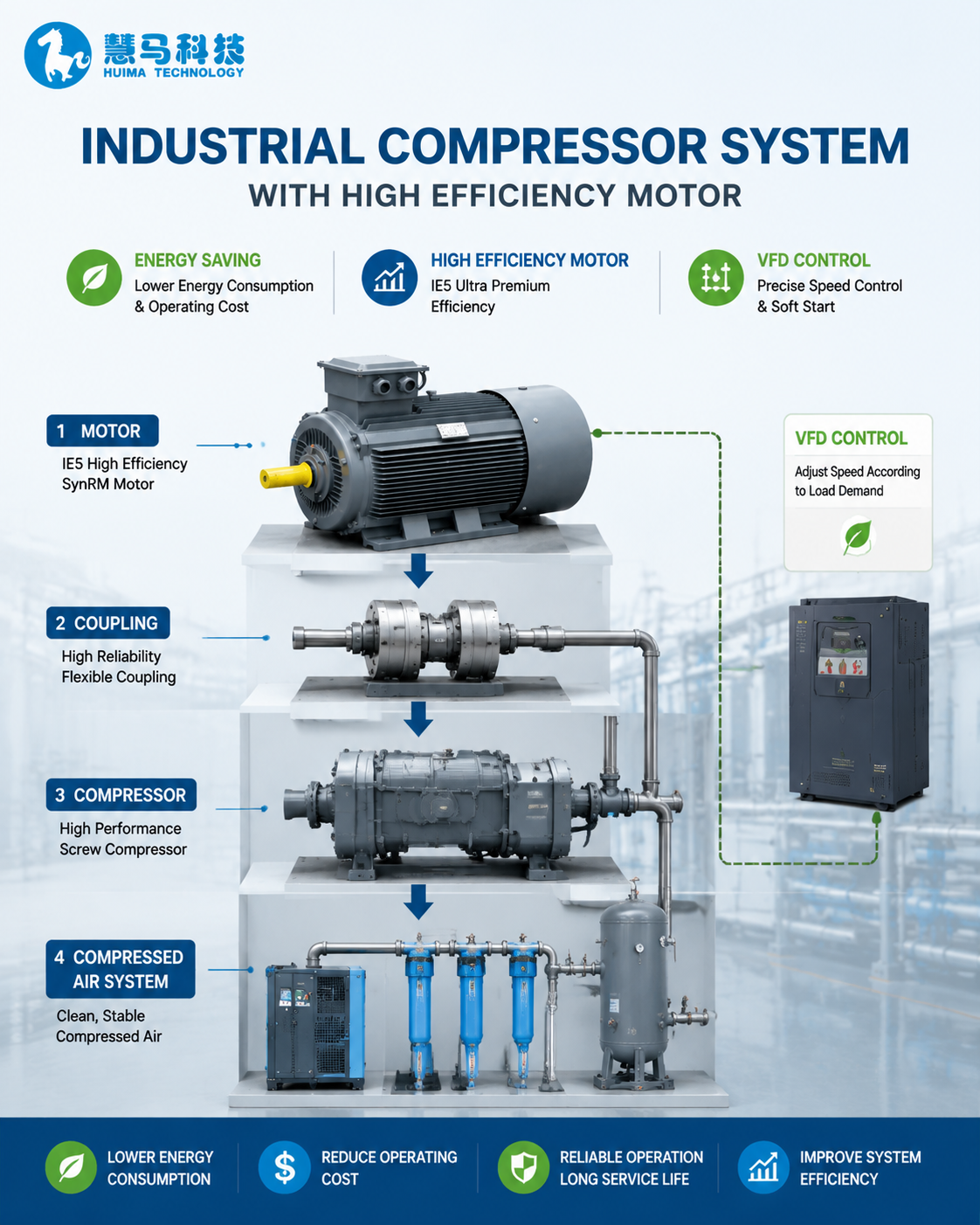

A modern energy-efficient compressor system includes:
Depends on:
Torque requirements
Cost objectives
Operating conditions
Benefits:
Reduced energy waste
Stable pressure control
Improved efficiency
Focus:
Continuous operation
Energy efficiency
Recommended:
SynRM
Focus:
Compact design
Dynamic response
Recommended:
PMSM
Long operation:
→ Prioritize efficiency
Limited installation space:
→ Consider PMSM
Huima Technology provides:
SynRM motors
PMSM motors
IE3–IE5 high efficiency motor systems
Options:
Voltage
Mounting
Cooling
Shaft design
Applications:
Compressors
Pumps
Fans
HVAC
Selecting the right compressor motor technology is essential for improving industrial energy efficiency.
Both SynRM and PMSM provide advanced solutions:
Magnet-free design
Excellent efficiency
Lower lifecycle cost
High torque density
Compact structure
Superior dynamic performance
For industrial compressor applications, choosing the correct high-efficiency motor can significantly reduce energy consumption and improve long-term profitability.
Huima Technology provides customized SynRM and PMSM compressor motor solutions to help global industries achieve higher efficiency and sustainable operation.
The best motor depends on compressor requirements. SynRM is suitable for energy-efficient continuous operation, while PMSM is preferred for compact and high-performance compressor systems.
Yes. PMSM motors provide high torque density and excellent variable-speed performance for advanced compressor applications.
Yes. SynRM motors can replace many induction motors and provide higher efficiency with lower lifecycle costs.
Both can achieve IE4 and IE5 efficiency levels. The best choice depends on application requirements.
Modern energy-efficient compressor systems commonly use VFD control to optimize motor speed and reduce energy consumption.
