Proven IE5 SynRM Solutions Deliver Over 34% Energy Savings in Industrial Mixing Applications
Industrial mixing equipment is widely used in industries such as chemical processing, new energy materials, mining, building materials, and manufacturing.
Because mixing systems usually operate for long hours under continuous-duty conditions, the motor system becomes one of the major sources of energy consumption.
Traditional three-phase asynchronous induction motors are commonly used in mixing equipment. However, with increasing electricity costs and stricter energy efficiency requirements, many companies are upgrading to high-efficiency motor solutions.
By replacing traditional IE3 induction motors with IE5 synchronous reluctance motor (SynRM) systems, HUIMA has successfully completed multiple energy-saving retrofit projects in the mixing industry.
The practical application results show:
Energy savings of 34%–36%
Investment payback within 1.4–1.7 years
Significant reduction in electricity consumption and carbon emissions
Improved efficiency for continuous industrial operation
These successful projects demonstrate the excellent energy-saving potential of IE5 SynRM technology in mixing applications.
Before retrofit, the mixing equipment used traditional:
IE3 Three-Phase Asynchronous Motor
Main challenges:
Rotor copper losses during operation
Higher energy consumption under long-term running conditions
Limited efficiency improvement potential
After upgrading to HUIMA IE5 SynRM system:
IE5 Synchronous Reluctance Motor + Drive System
Advantages:
IE5 ultra-high efficiency performance
No rotor copper loss
Magnet-free rotor structure
Lower operating losses
Reduced electricity costs
Excellent reliability for continuous operation
SynRM technology is especially suitable for mixing equipment with stable loads and long annual operating hours.

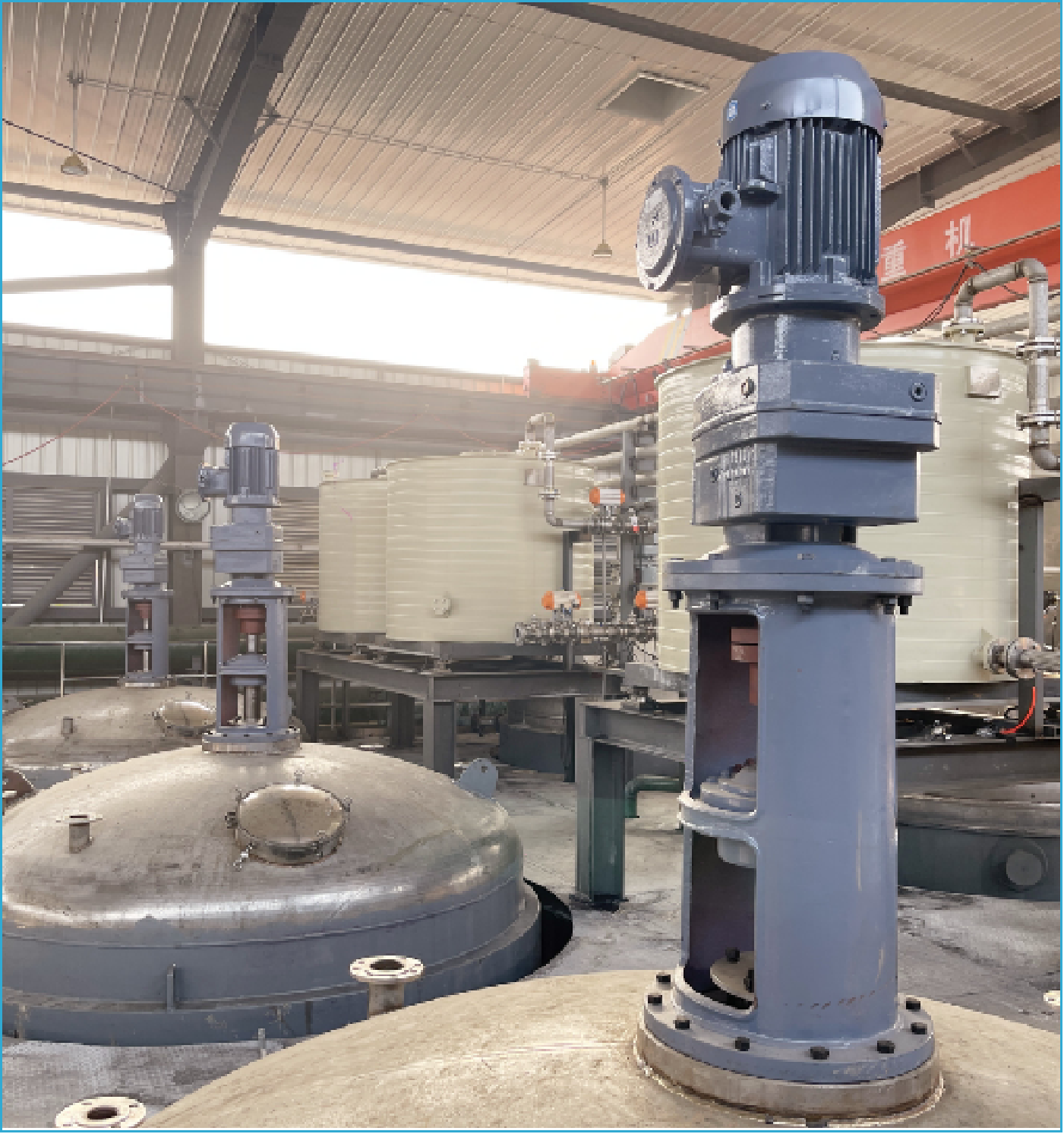

The customer upgraded the original IE3 induction motor to an IE5 synchronous reluctance motor system.
Parameter | Original Motor | Retrofit Motor |
|---|---|---|
Motor Type | IE3 Asynchronous Motor | IE5 Synchronous Reluctance Motor |
Motor Power | 15 kW | 7.5 kW |
Rated Efficiency | 92.1% | 93.3% |
Operating Power | 9.20 kW | 6 kW |
Operating Current | 23 A | 15 A |
Motor Speed | 1500 rpm | 1500 rpm |
Annual Operating Time | 7200 h | 7200 h |
Energy Saving Rate | - | 35.62% |
Payback Period | - | 1.7 Years |
Electricity consumption significantly reduced
Lower operating costs
Improved energy efficiency of production equipment
Reduced carbon emissions
Energy Saving Result: 35.62%
Investment Return: 1.7 Years

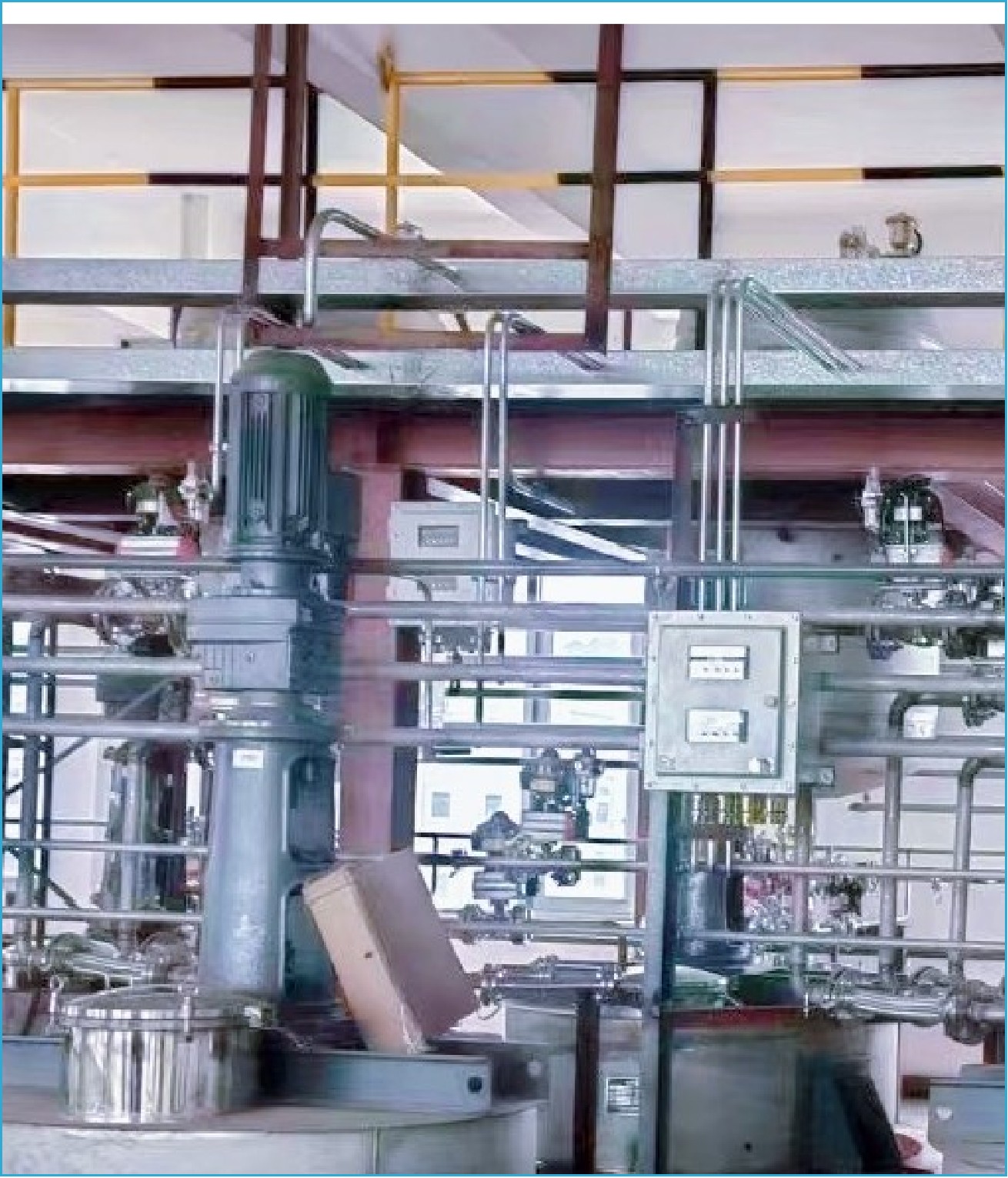

The customer replaced the original IE3 asynchronous motor with an IE5 SynRM system to improve energy efficiency.
Parameter | Original Motor | Retrofit Motor |
|---|---|---|
Motor Type | IE3 Asynchronous Motor | IE5 Synchronous Reluctance Motor |
Motor Power | 30 kW | 15 kW |
Rated Efficiency | 93.6% | 94.6% |
Operating Power | 13.30 kW | 8.55 kW |
Operating Current | 35 A | 22.5 A |
Motor Speed | 1500 rpm | 1500 rpm |
Annual Operating Time | 6912 h | 6912 h |
Energy Saving Rate | - | 36.39% |
Payback Period | - | 1.4 Years |
After retrofit, the equipment achieved:
Lower electricity consumption
Higher motor efficiency
Faster investment recovery
Better compliance with energy-saving targets
Energy Saving Result: 36.39%
Investment Return: 1.4 Years

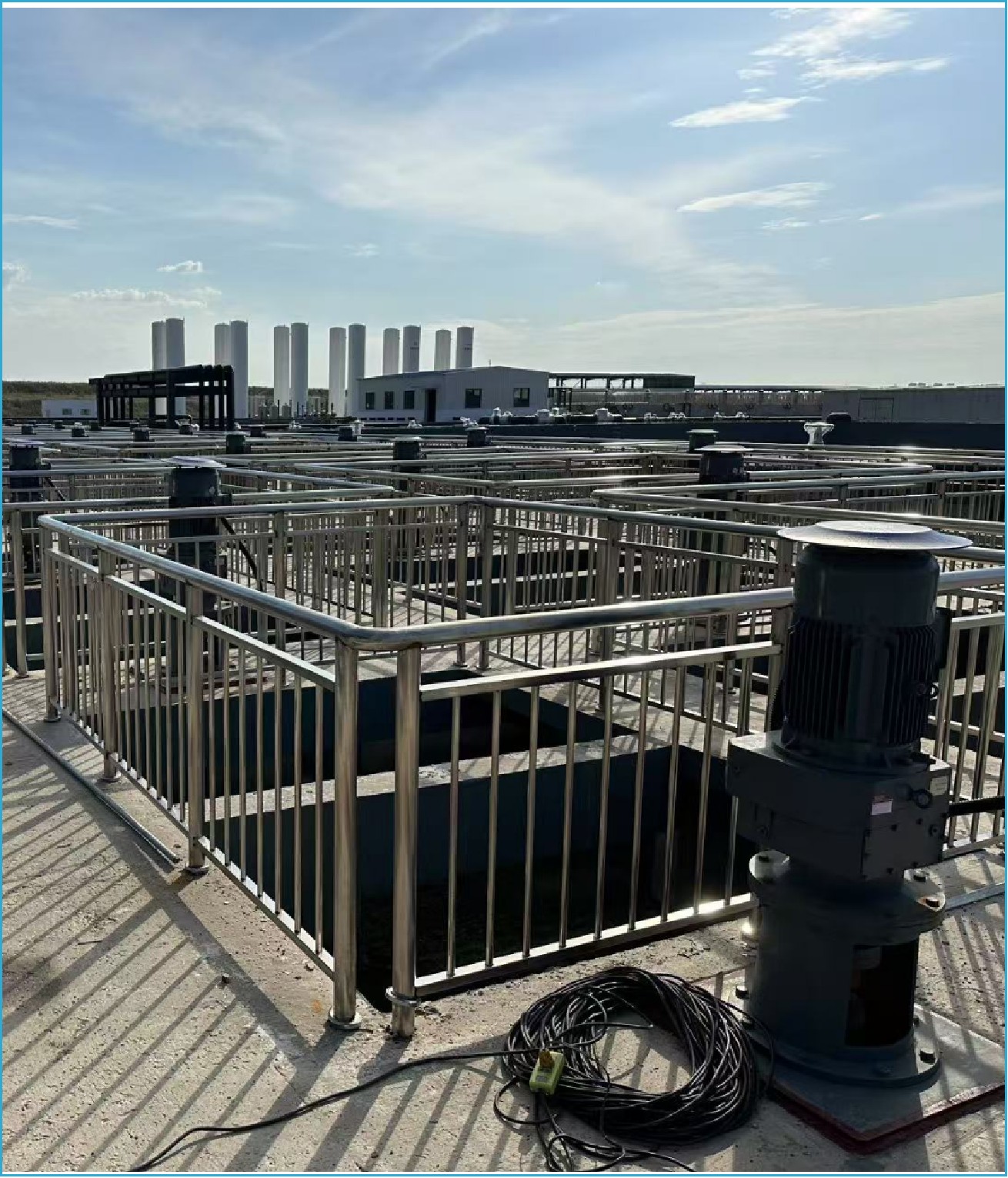

For cement mixing applications with continuous operation, the customer upgraded from IE3 induction motor technology to IE5 SynRM technology.
Parameter | Original Motor | Retrofit Motor |
|---|---|---|
Motor Type | IE3 Asynchronous Motor | IE5 Synchronous Reluctance Motor |
Motor Power | 11 kW | 7.5 kW |
Rated Efficiency | 91.4% | 93.3% |
Operating Power | 5.70 kW | 3.80 kW |
Operating Current | 15 A | 10 A |
Motor Speed | 1500 rpm | 1500 rpm |
Annual Operating Time | 6480 h | 6480 h |
Energy Saving Rate | - | 34.69% |
Payback Period | - | 1.7 Years |
The retrofit successfully improved:
Motor operating efficiency
Energy utilization rate
Production cost competitiveness
Energy Saving Result: 34.69%
Investment Return: 1.7 Years
The three typical industrial retrofit projects demonstrate that IE5 synchronous reluctance motors provide significant energy-saving benefits for mixing applications.
Application | Original Motor | Retrofit Motor | Energy Saving | Payback Period |
|---|---|---|---|---|
Battery Material Mixing | IE3 Motor 15 kW | IE5 SynRM 7.5 kW | 35.62% | 1.7 Years |
Chemical Mixing | IE3 Motor 30 kW | IE5 SynRM 15 kW | 36.39% | 1.4 Years |
Cement Mixing | IE3 Motor 11 kW | IE5 SynRM 7.5 kW | 34.69% | 1.7 Years |
IE5 SynRM motors reduce energy losses through optimized electromagnetic design, helping customers lower electricity consumption during long-term operation.
For equipment running thousands of hours per year, electricity cost is the largest part of the motor lifecycle cost.
The successful cases prove that SynRM retrofit can achieve fast investment recovery.
The magnet-free rotor design of SynRM technology provides:
No rare-earth material dependency
Lower environmental impact
Reliable long-term operation
Through multiple successful retrofit projects, HUIMA IE5 synchronous reluctance motor systems have demonstrated excellent energy-saving performance in industrial mixing applications.
With proven results of:
34%–36% energy savings
1.4–1.7 years payback period
Improved motor efficiency
Reduced carbon emissions
IE5 SynRM technology provides a reliable and economical solution for companies seeking energy efficiency upgrades and sustainable manufacturing.
HUIMA continues to provide customized synchronous reluctance motor solutions for global industrial customers in mixing, pumping, ventilation, compression, and other energy-intensive applications.
IE5 SynRM motors are suitable for many industrial applications, including:
Chemical mixing
Battery material production
Cement processing
Pumps
Fans
Compressors
HVAC systems
The actual saving depends on operating conditions, load characteristics, and running hours.
According to HUIMA's mixing industry retrofit cases, IE5 SynRM systems achieved:
34.69%–36.39% energy savings compared with IE3 induction motors.
The payback period depends on motor power, electricity cost, and operating hours.
In these three typical projects:
The investment recovery period was only 1.4–1.7 years.
The main advantages include:
Higher efficiency
Lower energy consumption
No rotor copper loss
Magnet-free design
Lower operating cost
Long service life
Yes. For many industrial applications with stable loads and long operating hours, IE5 SynRM motors can directly replace traditional induction motors and provide significant energy-saving benefits.
