Introduction: Choosing Between SynRM and PMSM Motors
Industrial companies are increasingly looking for high-efficiency motor solutions to reduce energy consumption, operating costs, and carbon emissions.
Among advanced synchronous motor technologies, Synchronous Reluctance Motors (SynRM) and Permanent Magnet Synchronous Motors (PMSM) have become two important alternatives to traditional induction motors.
Both technologies can achieve high efficiency levels such as IE4 and IE5, but they use completely different electromagnetic principles.
The main difference is:
SynRM generates torque through magnetic reluctance difference
PMSM generates torque through permanent magnet excitation
Choosing the right motor depends on:
Application requirements
Torque demand
Efficiency targets
Cost considerations
Operating conditions
For industrial applications such as pumps, fans, HVAC systems, compressors, and automation equipment, understanding the difference between SynRM and PMSM is essential for selecting the most suitable motor technology.
Table of Contents
A Synchronous Reluctance Motor (SynRM) is a magnet-free synchronous motor that produces torque by using the difference in magnetic reluctance between the rotor d-axis and q-axis.
Unlike induction motors:
No rotor windings
No rotor copper losses
No slip operation
Unlike PMSM motors:
No permanent magnets
No rare-earth materials

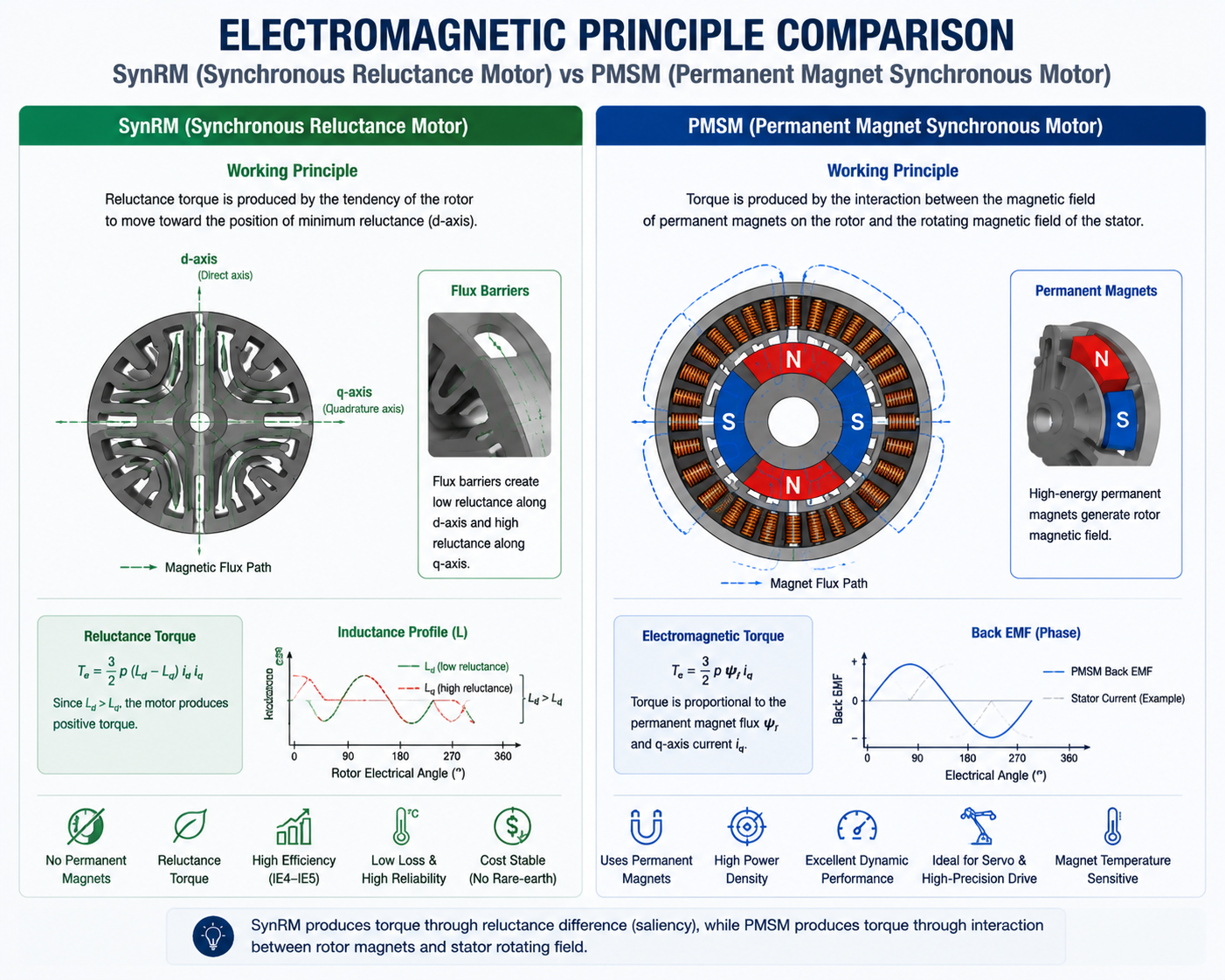

A SynRM motor operates based on the principle that magnetic flux naturally follows the path with the lowest reluctance.
The rotor contains specially designed flux barriers that create:
Low reluctance magnetic path
High reluctance magnetic path
The difference between these paths creates reluctance torque.
A Permanent Magnet Synchronous Motor (PMSM) is a synchronous motor that uses permanent magnets installed on the rotor to generate magnetic flux.
The interaction between:
Rotor permanent magnetic field
Stator rotating magnetic field
creates continuous synchronous rotation.
The stator generates a rotating magnetic field through three-phase AC power.
The rotor magnets create a constant magnetic field.
The two magnetic fields interact and produce:
Electromagnetic torque
High torque density
Synchronous operation

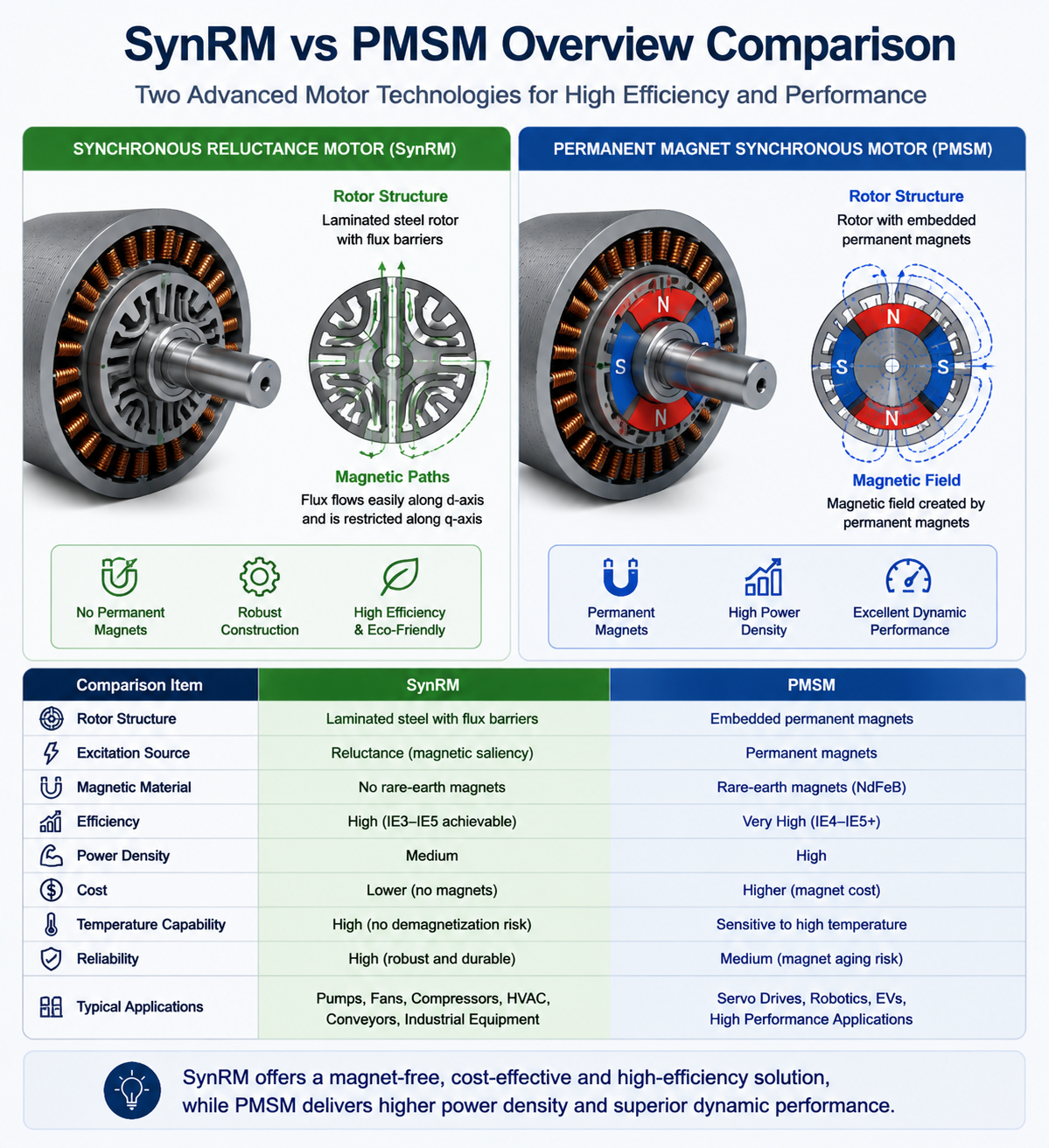

Feature | SynRM | PMSM |
|---|---|---|
Torque Generation | Magnetic reluctance | Permanent magnet field |
Rotor Design | Flux barriers | Permanent magnets |
Rotor Loss | Almost zero | Very low |
Magnet Required | No | Yes |
Synchronous Operation | Yes | Yes |
Efficiency is one of the most important factors when selecting an industrial motor.
Both SynRM and PMSM can achieve IE4 and IE5 efficiency levels.
However, their efficiency characteristics are different.
SynRM achieves high efficiency because:
The rotor does not contain:
Copper bars
Rotor windings
Therefore:
Lower heat generation
Reduced energy losses
SynRM performs especially well in applications with:
Variable speed operation
Partial load conditions
Long operating hours
Typical applications:
Pumps
Fans
HVAC systems
PMSM achieves high efficiency through permanent magnet excitation.
Advantages:
Strong magnetic field
High torque output
High power density
PMSM is especially suitable for:
High-performance systems
Compact equipment
High torque applications

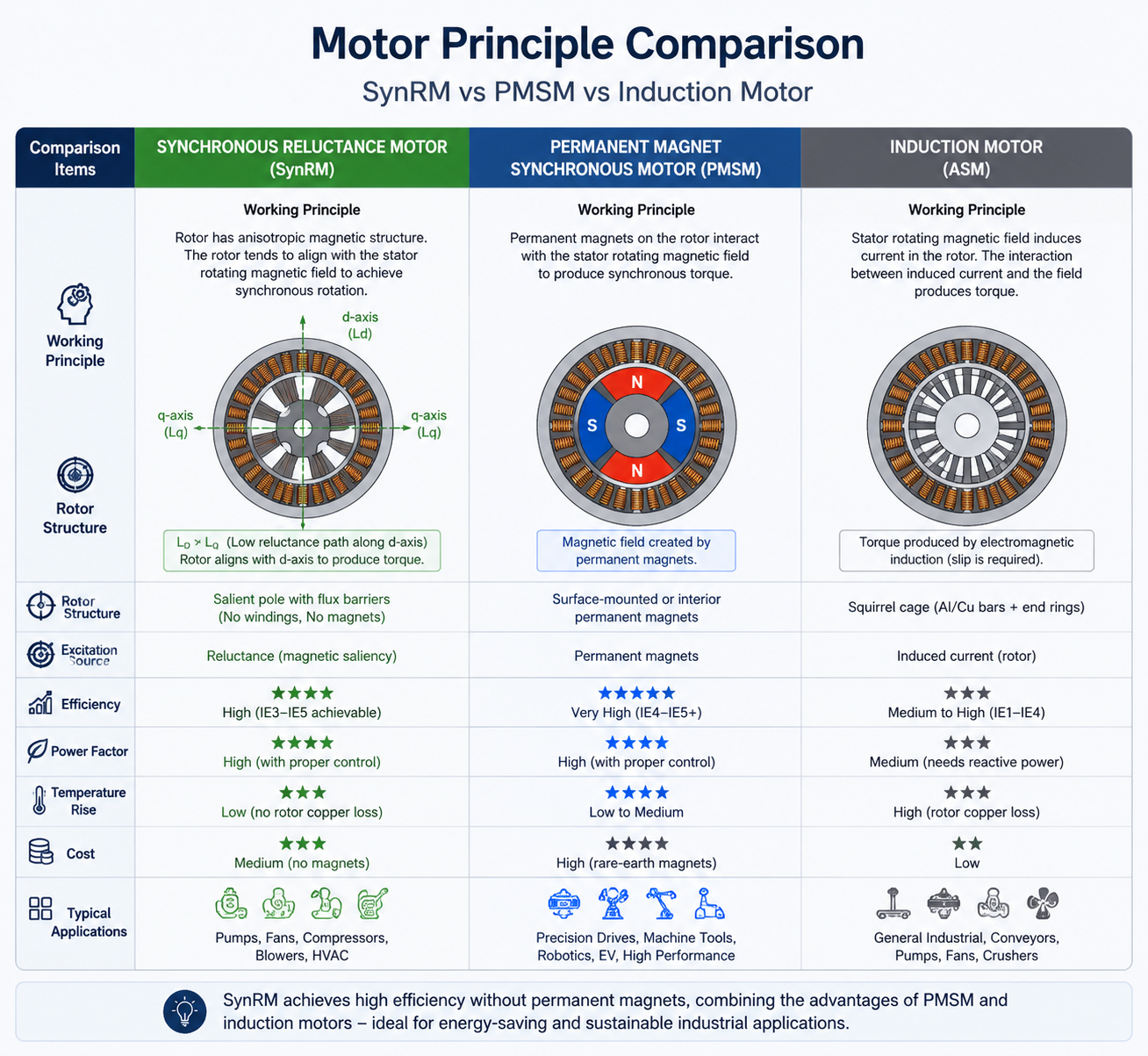

Structure Feature | SynRM | PMSM |
|---|---|---|
Rotor Material | Laminated steel | Steel + magnets |
Permanent Magnet | No | Yes |
Manufacturing Complexity | Lower | Higher |
Material Cost Stability | High | Medium |

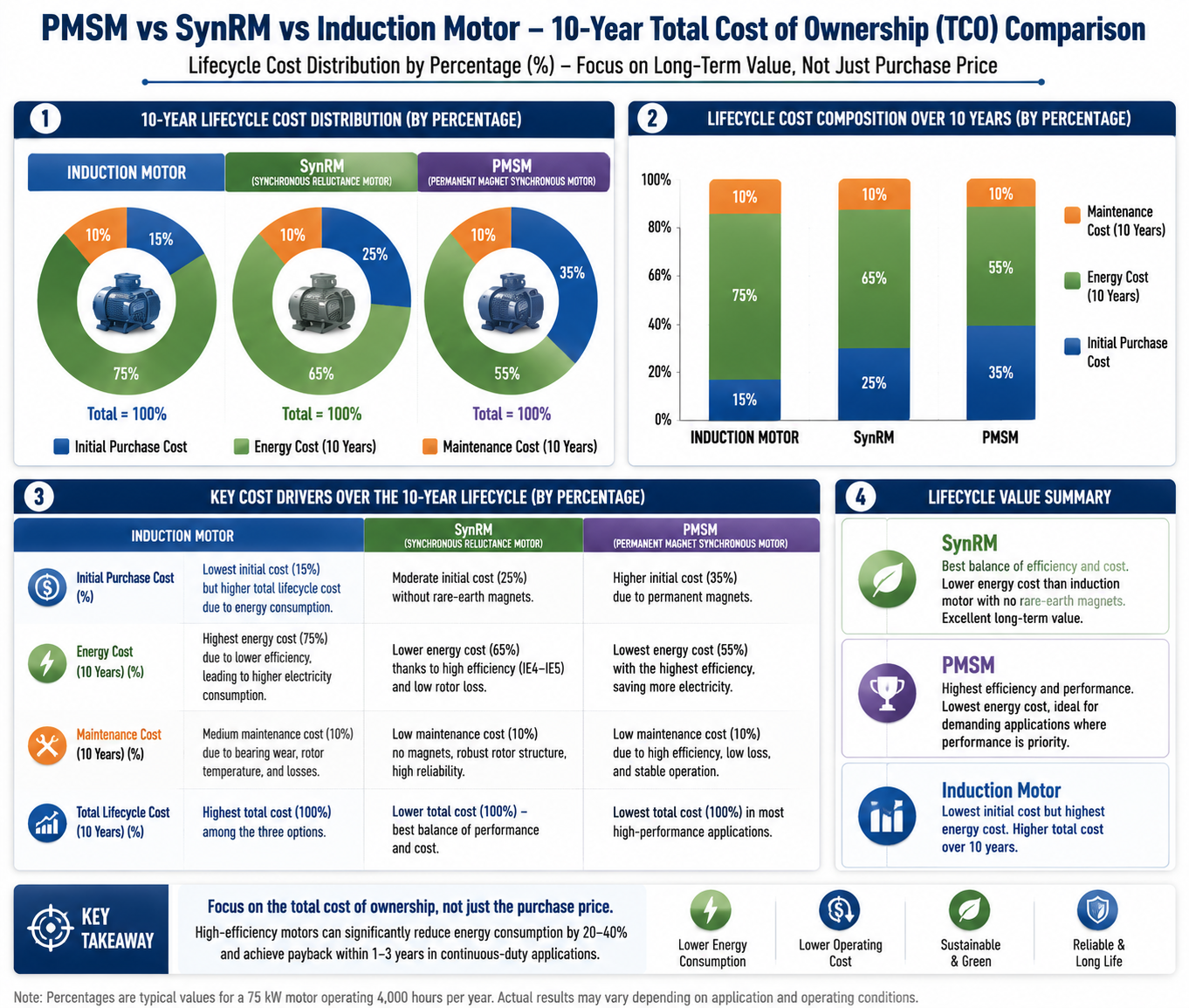

Motor selection is not only about efficiency but also total lifecycle cost.
Advantages:
No expensive magnets
Stable material cost
Lower supply chain risk
Advantages:
Higher torque density
Smaller motor size
However:
Permanent magnets increase material cost
For applications operating thousands of hours annually:
Energy consumption often represents the largest ownership cost.
Both SynRM and PMSM can provide significant energy savings compared with traditional induction motors.
Choosing between SynRM and PMSM depends heavily on the application.
✅ SynRM
Reasons:
Variable load operation
Long running hours
Energy-saving priority
✅ SynRM
Advantages:
Excellent partial-load efficiency
Lower operating cost
✅ PMSM
Reasons:
High torque density
Strong dynamic response
✅ PMSM
Reasons:
Precise control
High acceleration capability
✔ Energy efficiency is the priority
✔ Application requires continuous operation
✔ Cost stability is important
✔ Rare-earth materials should be avoided
Best applications:
Pumps
Fans
HVAC
✔ High torque density is required
✔ Space limitation exists
✔ Dynamic response is important
Best applications:
Compressors
Automation systems
Huima Technology specializes in advanced industrial motor solutions including:
Synchronous Reluctance Motors
Permanent Magnet Synchronous Motors
High-efficiency IE3–IE5 motor systems
Our motor solutions focus on:
Energy efficiency improvement
Industrial reliability
Customized OEM requirements
Applications include:
Pumps
Fans
HVAC systems
Compressors
Both SynRM and PMSM represent the future of high-efficiency industrial motor technology.
The best choice depends on the application:
Application | Recommended Motor |
|---|---|
Pumps | SynRM |
Fans | SynRM |
HVAC | SynRM |
Compressors | PMSM |
Automation | PMSM |
For industries focusing on energy savings, cost stability, and sustainable operation, SynRM provides an excellent solution.
For applications requiring maximum torque density and compact design, PMSM remains the preferred choice.
Huima Technology provides customized SynRM and PMSM motor solutions to help industrial customers achieve higher efficiency and lower lifecycle costs.
Neither technology is universally better. SynRM is ideal for energy-saving applications requiring cost efficiency, while PMSM is better for applications requiring high torque density.
Both SynRM and PMSM can achieve IE4 and IE5 efficiency levels. Actual efficiency depends on motor design, operating conditions, and control system.
No. SynRM motors generate torque through magnetic reluctance and do not require permanent magnets.
SynRM provides:
No rare-earth materials
Lower material cost risk
Excellent efficiency
High reliability
PMSM provides:
Higher torque density
Smaller size
Better dynamic performance
For most industrial pumps, SynRM is often preferred because pumps typically require long operating hours and excellent energy efficiency.
